Ampire AMX225 - Ampire 12.4" Dual RSE Monitors with Headrest Mount, HDMI In/Out

This high-resolution monitor is particularly notable for the almost unlimited capabilities of the Android operating system and its outstanding image quality.

You can stream your entertainment program, e.g., from Netflix, YouTube, Prime, and the like, either live while driving or download it in advance via your home's Wi-Fi and watch it offline. Naturally, the monitor has a digital HDMI input and output, as well as an analog video input.

The AMX225 can play sound wirelessly via optional wireless headphones or via A2DP from the car radio. Alternatively, the monitor has a built-in speaker and a stereo RCA output for connecting it to the AUX input of your factory car radio.

The AMX225 connects to your smartphone's hotspot or a Wi-Fi router to access the internet while driving. To save data, you can also download movies and series to your home Wi-Fi before your trip and then enjoy them offline.
The revised operating menu now supports the following languages: German, English, Portuguese, French, Turkish, Spanish, Japanese, Korean, Chinese, Czech, Russian, Vietnamese, Arabic, Hebrew

Technical Specifications

Display

• Digital 31.5cm (12.4'') LED IPS display (New Grade A)
• Capacitive G+G multipoint touchscreen
• Resolution 1920 (H) x 1200 (V)
• Brightness 350 cd/m²
• Contrast 800:1
• Viewing angle 170° horizontal, 170° vertical
• 4K video decoder
• NTSC/PAL playback automatically
• Display is subject to ISO 9241-307, pixel fault class II

Inputs/Outputs

• Inputs: Video (RCA), HDMI, USB 2.0, and microSD card
• Outputs: HDMI, audio output via RCA, 3.5mm headphone jack
• Two integrated stereo speakers (2x 5 watts)
• With the integrated FM transmitter, you can play the sound as an FM radio station via the Car radio playback. FM frequencies are adjustable from 88 to 108 MHz. We recommend using the FM transmitter for audio transmission only as a last resort, as the FM sound quality is not excellent.
• WLAN IEEE 802.11 a/b/g/n, 2.4GHz + 5.0GHz
• Integrated A2DP transmitter for an optional wireless headset (maximum one receiver), or for audio transmission to your car radio*.

*Only if supported by the car radio. Please refer to the manufacturer's instructions.

General

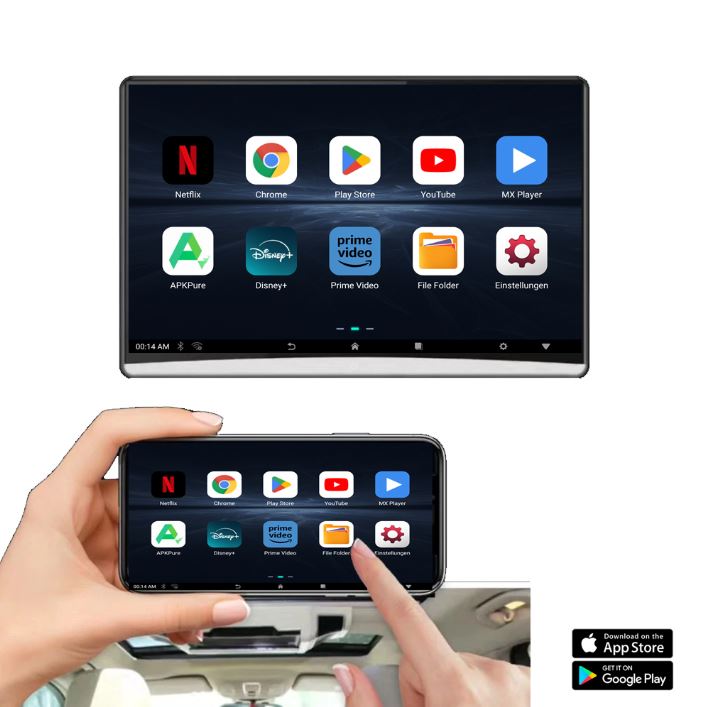

• Control the monitor via smartphone using the "MyCar Link" app
• Android 10.0
• 64-bit Deca-Core processor with up to 2.0GHz
• 3GB RAM / 16GB Flash memory
• microSD card reader (max. 128GB)
• Mood lighting with 7 colors
• Supported video formats: AVI/MP4/VOB/RM/RMVB/DAT/MPEG1/MPEG2/MPEG4/Real Video/FLV/H.263/H.264/H.265/VC-1/VP6/VP8/MVC ...(4K)
• Supported audio formats: MP3/WMA/PCM/CD
• Supported photo formats: JPG/JEPG/BMP
• OTA update
• Monitor dimensions: 292 x 197 x 27 mm
• Monitor weight without mount: 1100 g
• Universal mount weight: 258 g
• Special mount weight: 270 g
• Operating voltage: 12 VDC (min. 10 VDC, max. 24 VDC)
• Operating temperature -10° - +70°C
• Current consumption (operation) 1.1 to 1.66A
• Current consumption (standby, ignition on) 0.03A
• Current consumption (ignition off) 0.00A

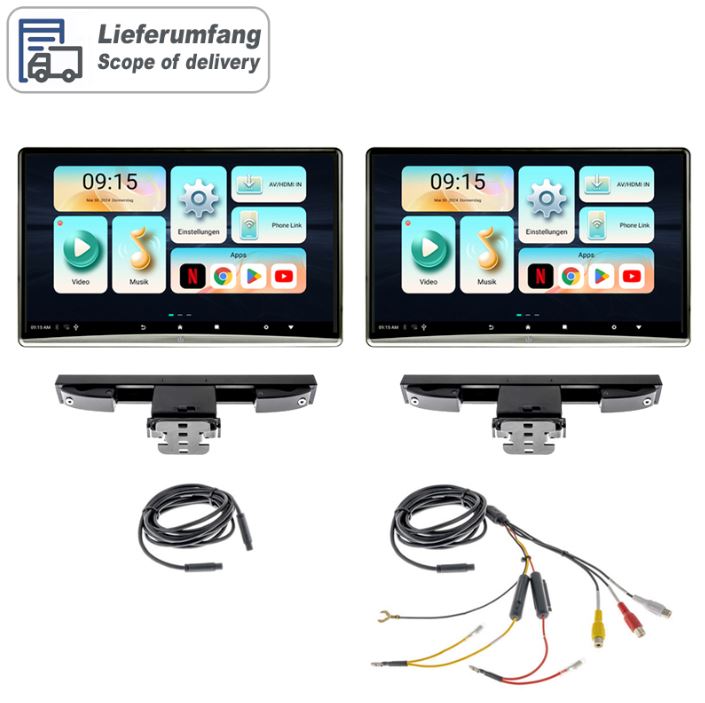

Scope of delivery

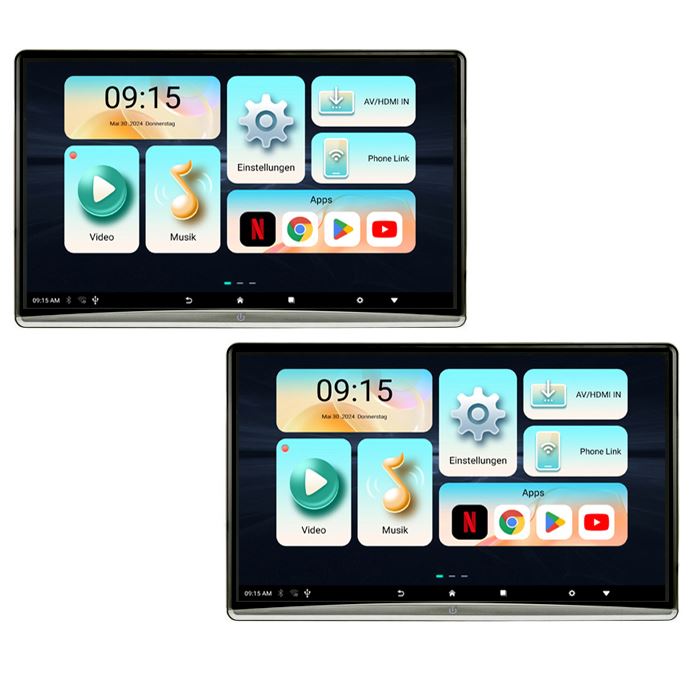

• 2x 12.4" monitors

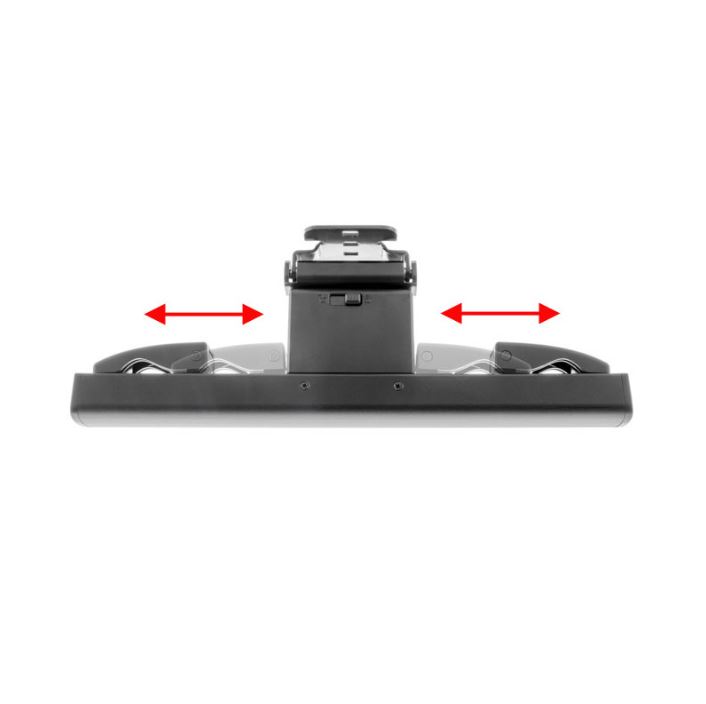

• 2x robust metal brackets for the headrest tubes
• 1x main connection cable, 300cm
• 1x instruction manual

Optional Accessories

• Ampire Bluetooth Headphones BT301 - You can pair a maximum of one Bluetooth headset with the AMX225.
• Seat Mount SH-AMX124 - For vehicles without headrest tubes, you can use this to attach an AMX225 to the seat.
