Ampire OHV101-HD - 25.6cm (10.1'') HD Deckenmonitor mit HDMI-Eingang

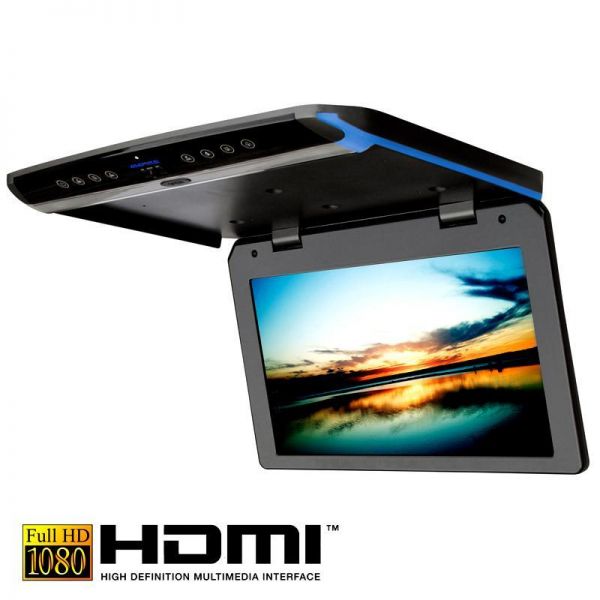

The new OHV101-HD monitor from AMPIRE is an ultra-flat HD monitor with a height of just 20mm. It has an HDMI and video input. You can also play back various video, audio and image formats via the USB interface. All connections are not located on the housing, but are led out as a cable harness on the underside of the device. This enables professional and long-lasting installation with invisible cabling.

FURNISHING

• Integrated lighting via 8 LEDs (can be switched off)
• Integrated blue ambient lighting (can be switched off)
• Control buttons with blue night lighting
• Infrared remote

VIDEO

• Inputs: HDMI, AV (Cinch), USB (all connections on the back of the device on the cable harness)
• AV video output via cinch, but only if the AV video input has been selected (not with HDMI and USB)

AUDIO

• Audio output in stereo via cinch. We recommend connecting this output either to the AUDIO AUX of your car radio or with optional wireless headphones.
• Infrared transmitter for optional wireless headphones (item number: HP301) with two adjustable infrared channels: A (2.8MHz + 2.3MHz.) Or B (3.8MHz + 3.2MHz.)
• With the integrated FM transmitter you can play the sound as an FM radio station on the car radio. The following FM frequencies can be set: 87.7, 87.9, 88.0, 88.1, 88.2, 88.3, 88.4, 88.5 and 88.6 MHz. We recommend using the FM transmitter as a sound transmission only as an emergency solution. Because the limited sound quality from the FM is not of high quality.

USB INPUT

• Video: MPEG1 / 2/4, RM, RMVB, MOV, DIVX, MJPEG
• Audio: WMA, MP3, M4A, AAC
• Images: BMP, JPEG, GIF, PNG, TIFF
• supports USB 2.0 sticks

LCD DISPLAY

• Screen diagonal: 25.6cm (10.1 ")
• AUO high definition LCD digital panel
• LED backlight
• Resolution: 1024 x 3 (RGB) x 600 pixels
• Brightness:> 250 nits
• Contrast:> 500: 1
• horizontal viewing angle: 140 °
• vertical viewing angle: 120 °
• 262,144 / 16,777,216 colors (18-bit / 24-bit)
• Video standard: PAL / NTSC
• Picture format switching 16: 9 and 4: 3
• Our monitors are subject to ISO 9241-307, pixel error class II

TECHNICAL SPECIFICATIONS

• Operating voltage: 11-14 volts DC
• Power consumption: max. 2A / 24 watts
• Quiescent current with the ignition switched on: 0.04A
• Quiescent current when the ignition is switched off: 0.00A
• Operating temperature: -10 ° C to + 70 ° C
• Dimensions monitor closed: 281x251x21mm
• Dimensions monitor open: 281x251x181mm
• Opening angle of the monitor: 180 °
• Weight: 880g
• 2.25 meter connection cable

INSTALLATION NOTE

When installing the monitor, please note that the supplied mounting plate must be installed. If the mounting plate is missing, the housing of the monitor could warp and further problems could arise.

PACKAGING

• Shipping weight: 1.2kg

APPROVALS

• CE approval, Report No. BST16087768A0001Y-1ER-1
• REACH approval, Report No. BST16087768A0001Y-1RR4

ECE APPROVAL MARK

• E11 10R 023588
