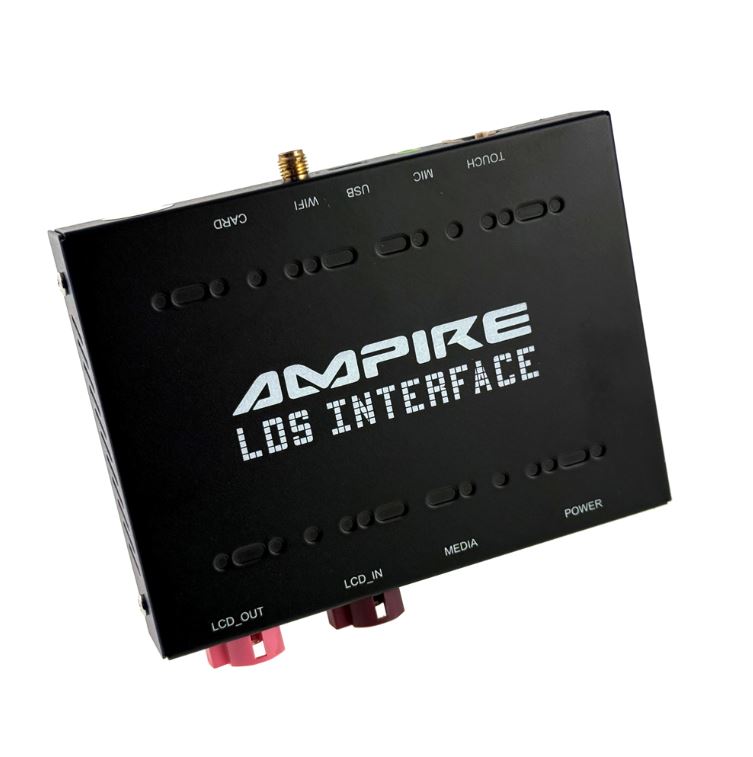

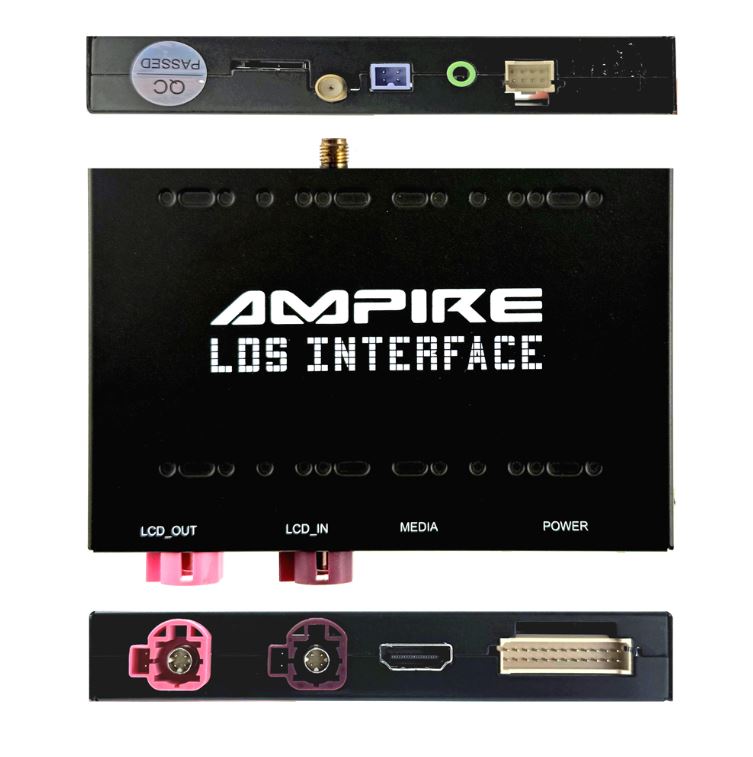

Ampire LDS-EVO-MINI - Smartphone integration for BMW/MINI with NBT-EVO and 6.5" monitor, cable set

Ampire Smartphone Integration for BMW/MINI with NBT-EVO and 6.5" Monitor - Cable Set

Plug & Play smartphone interface with complete integration into your car's multimedia system. Check the compatibility list to see if we have a solution available for your car.

Video is displayed on the entire factory monitor, and audio is fed in via the audio AUX input or Bluetooth A2DP input of your factory multimedia system. Before ordering, please check if your factory multimedia system has an audio AUX input or supports Bluetooth A2DP.

Our smartphone interface is compatible with Apple CarPlay® and Android Auto, making it a smarter and safer way to use your smartphone in the car. Everything is operated via the vehicle's own buttons and controls. Of course, you can also Use Siri and OK Google voice control via the included microphone. Everything you want to do with your smartphone while driving can be done directly on the car's display with Apple CarPlay® and Android Auto. You can easily get directions, send and receive messages. If your car has a factory-installed hands-free system, you can operate it and make calls using our smartphone integration. While navigating, you can listen to your favorite music, for example via Spotify, or your favorite radio station via a radio app – all while keeping your focus on the road. Simply connect your smartphone to the USB port in our system and you're ready to go. For even greater convenience, you can connect your Apple iPhone wirelessly via Wi-Fi. Wireless Apple CarPlay® is available from the Apple iPhone 5 onwards. Of course, Wireless Google is also supported. Android is supported if your Android smartphone has Android 11 and Android Auto 4.8 or higher and 5GHz Wi-Fi. Features Interface for retrofitting Apple CarPlay® and for Android Operation via OEM buttons/touchpad of the vehicle Wireless Apple CarPlay® via included Wi-Fi antenna (iPhone 5 and later) Wired Apple CarPlay® via USB (turn off Wi-Fi on iPhone) Wired Android (via USB) Android MirrorLink function (mirroring the smartphone display) USB input for multimedia playback, software updates, or wired smartphone connection HDMI input (audio only via audio aux output) Video playback on Apple iOS only via a USB cable Supports RMVB, MOV, MKV, MP4, AVI, RM with up to 1080p HD resolution Smartphone pairing only required during initial setup Integrated audio DSP with equalizer for the audio output

• Analog audio output with 3-volt output voltage for audio playback (Audio AUX)
• Supports left- and right-hand drive vehicles
• "Apple Siri" and "OK Google" voice control via included microphone (no telephony)

Apps

• GPS navigation with Google Maps and Apple Maps, and much more
• Music playback with Spotify, Apple Music, Amazon Prime, and much more

Camera functions

• Input for front camera (AHD/CVBS)
• Input for rear-view camera (AHD/CVBS)
• Supports parking distance control (PDC)
• Supports dynamic guide lines
• Supports 360° camera systems
• 12-volt output for powering the front camera
• 12-volt output for powering the rear camera

Vehicle Compatibility

Before purchasing and installing, please check if the product is compatible with your car make, model year, and entertainment system.
Your entertainment system must have an analog audio AUX input for sound playback. Incompatibility may cause damage.

Smartphone Compatibility

ATTENTION: Some manufacturers, such as Samsung devices have their own Android-based operating system. Wireless use may not be possible with this.

Wired connection via USB cable

Check compatibility with your smartphone before purchasing and installing.

• For Apple iOS: iPhone 5 or later
• For Google Android: Android 5.0 or later (Lollipop), preferably Android 6.0 (Marshmallow) or later

Wireless connection - Wireless via Wi-Fi

Check compatibility with your smartphone before purchasing and installing.

• For Apple iOS: iPhone 5 or later
• For Google Android: Android 11 or later
Car 4.8 or higher, 5GHz Wi-Fi.

Technical Specifications

• Operating voltage: 12VDC +/-10%
• Maximum current draw: 1.35A
• Standby current draw: 2mA
• Current draw when off: 0mA
• USB charging current: 1100mA
• Operating temperature: -25°C ~ +75°C
• Dimensions: 120x90x19mm

Approvals

E-approval number

E57*10R06/00*0081
E-Approval Number E57*COP*0279

Important Product Information

This product is controlled by buttons only and does not support touchscreen or gesture control.

Installation Instructions

This product is used in vehicles with a 12V battery. Please do not install it in vehicles with a different voltage. Never extend the HSD signal wires. This product consists of high-precision parts and should therefore not be subjected to strong impacts. Never open the housing. To protect driving safety and avoid traffic violations, never operate the product while driving. The optional reversing cameras are only visible when maneuvering. Always pay attention to your surroundings and never rely solely on the camera. All installation steps should only be carried out by a qualified professional. For installation, the ignition must be switched off, and the product should only be connected to power after all wiring is complete. NEVER plug in or unplug the cables while the power is on to avoid damaging the monitor or the product. Route the cables so that they do not come into contact with any metal edges. This can damage the wiring and may cause fires. Avoid any contact with hot surfaces when wiring the main unit. High temperatures can damage the wiring and cause short circuits, arcing, and fires. Please DO NOT install the product in humid environments to avoid electric shock, damage, and fire caused by a short circuit. Upon receiving the product, please check that all components are in the packaging. If anything is missing, inform the supplier/manufacturer. Start the engine before loading, check the interface to see if the function is displayed, and check the key to ensure the vehicle interface is working correctly. Please provide feedback to the supplier/manufacturer if you have any questions. Please note that you will need to reassemble the disassembled vehicle parts during installation. Handle carefully and avoid scratching the instrument panel. Unused connectors must be insulated to prevent short circuits. Cable connections should be securely plugged in. Avoid interfering with control components such as the steering wheel, accelerator, and brake pedals. Legal Notice Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. Android is a trademark of Google LLC. Third-party products and brand names may be registered trademarks of their respective owners.
