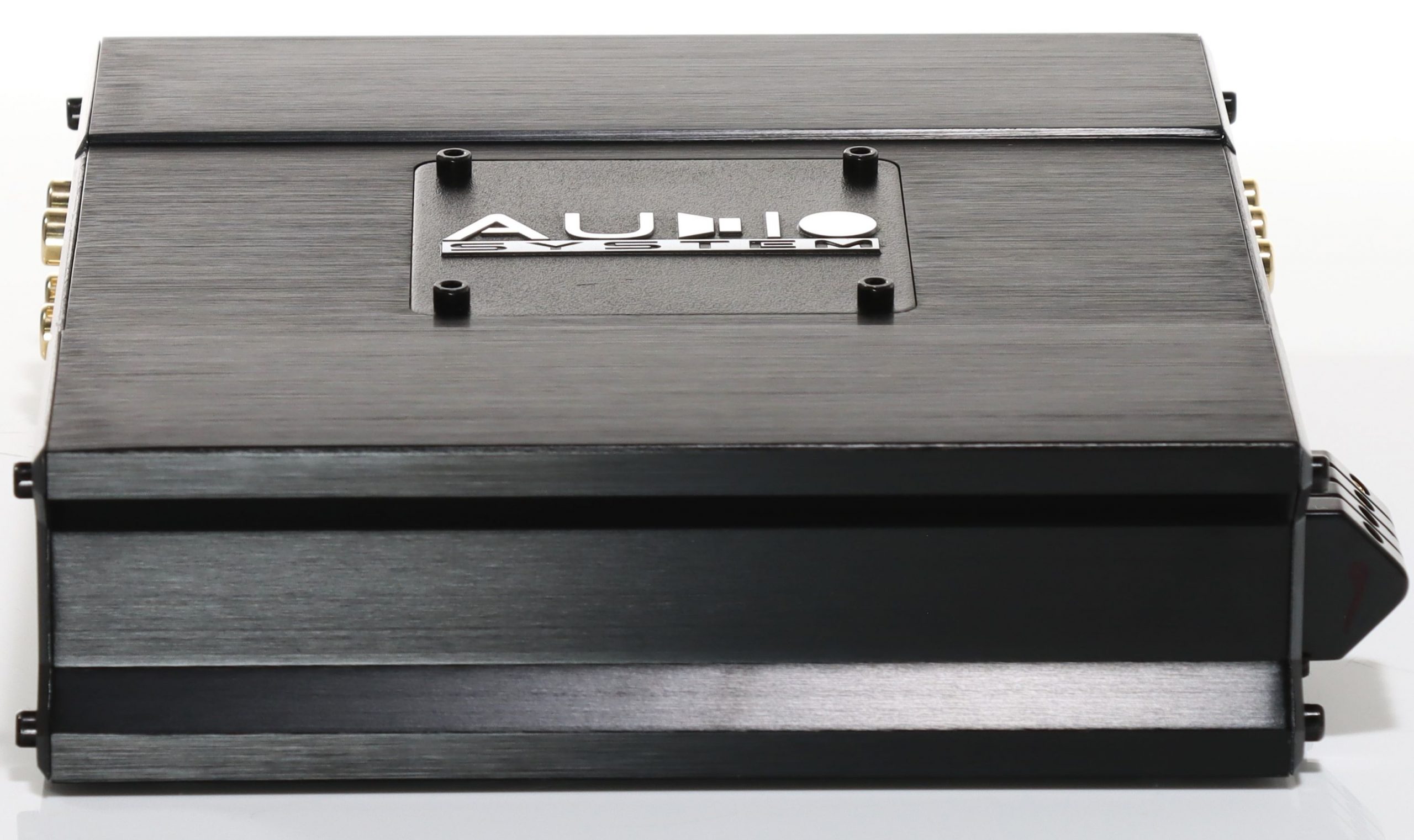

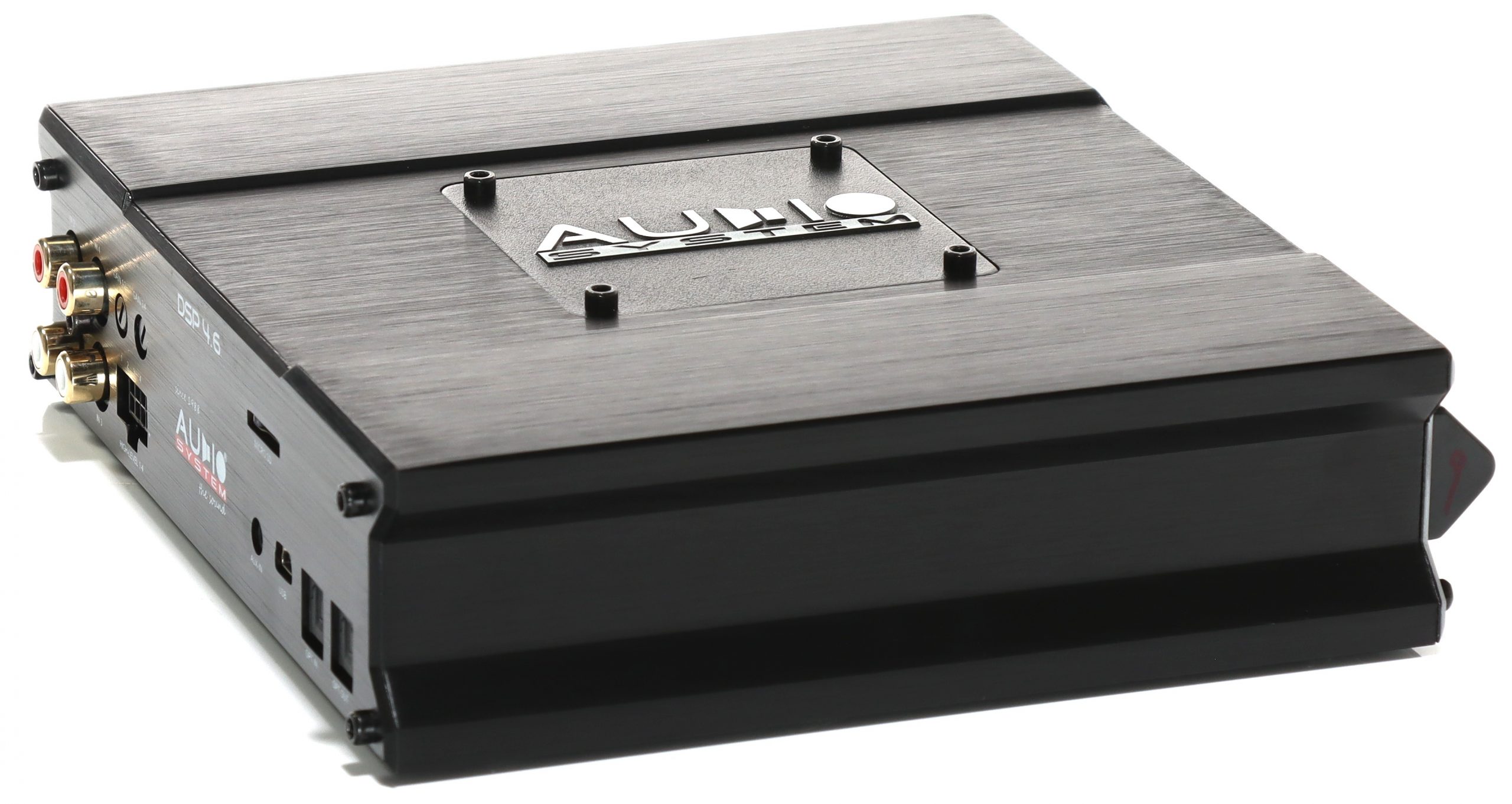

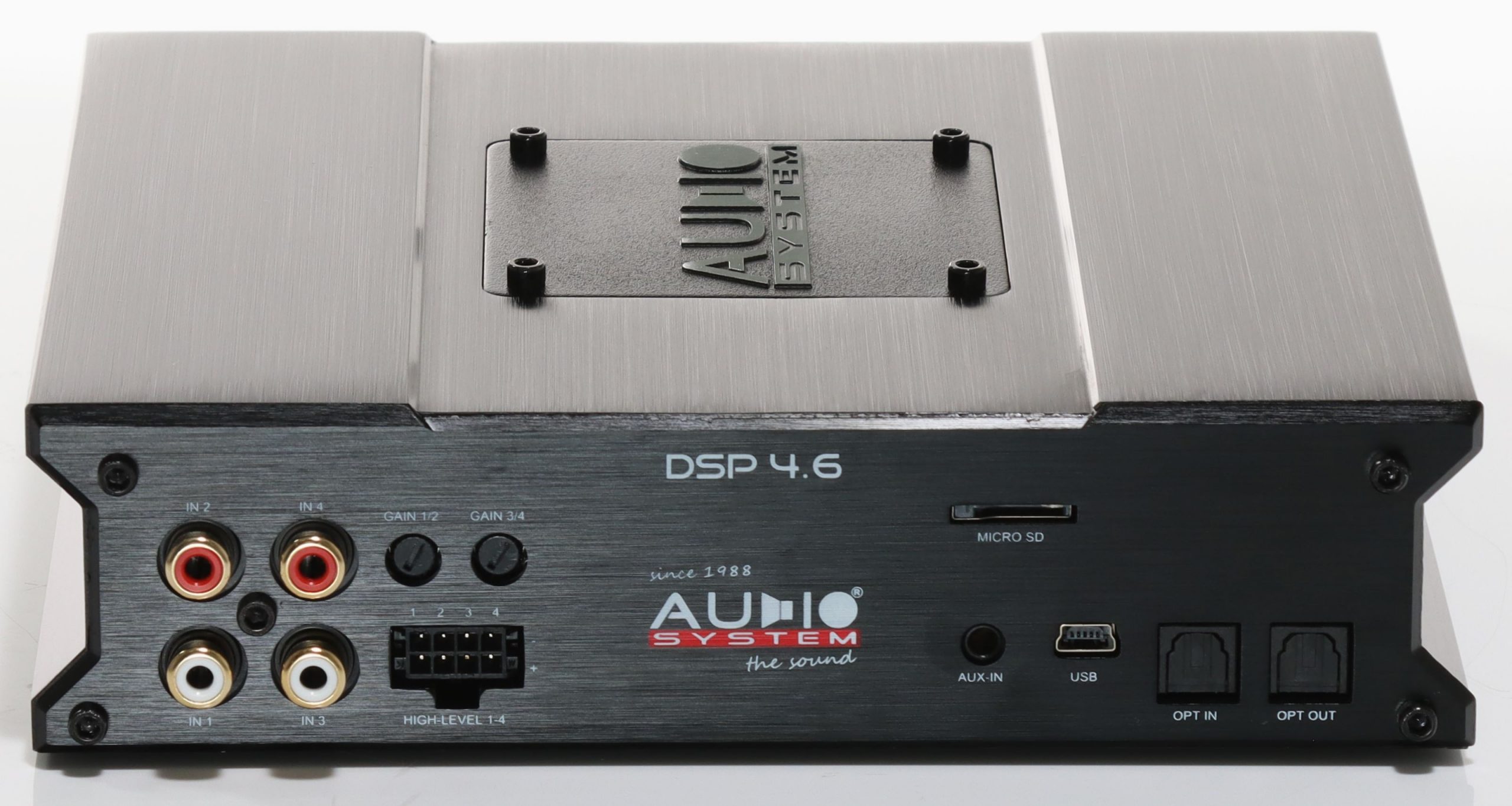

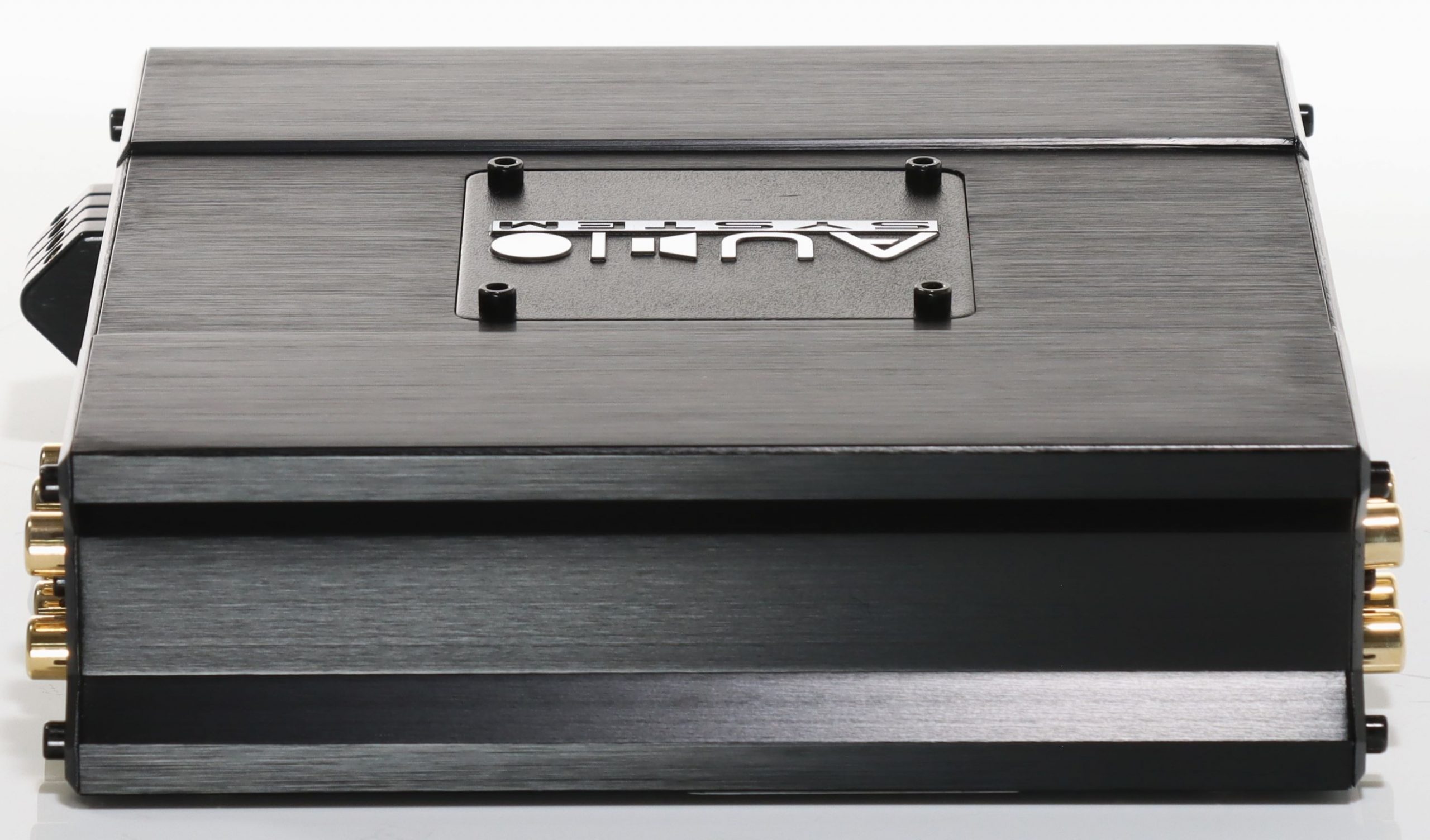

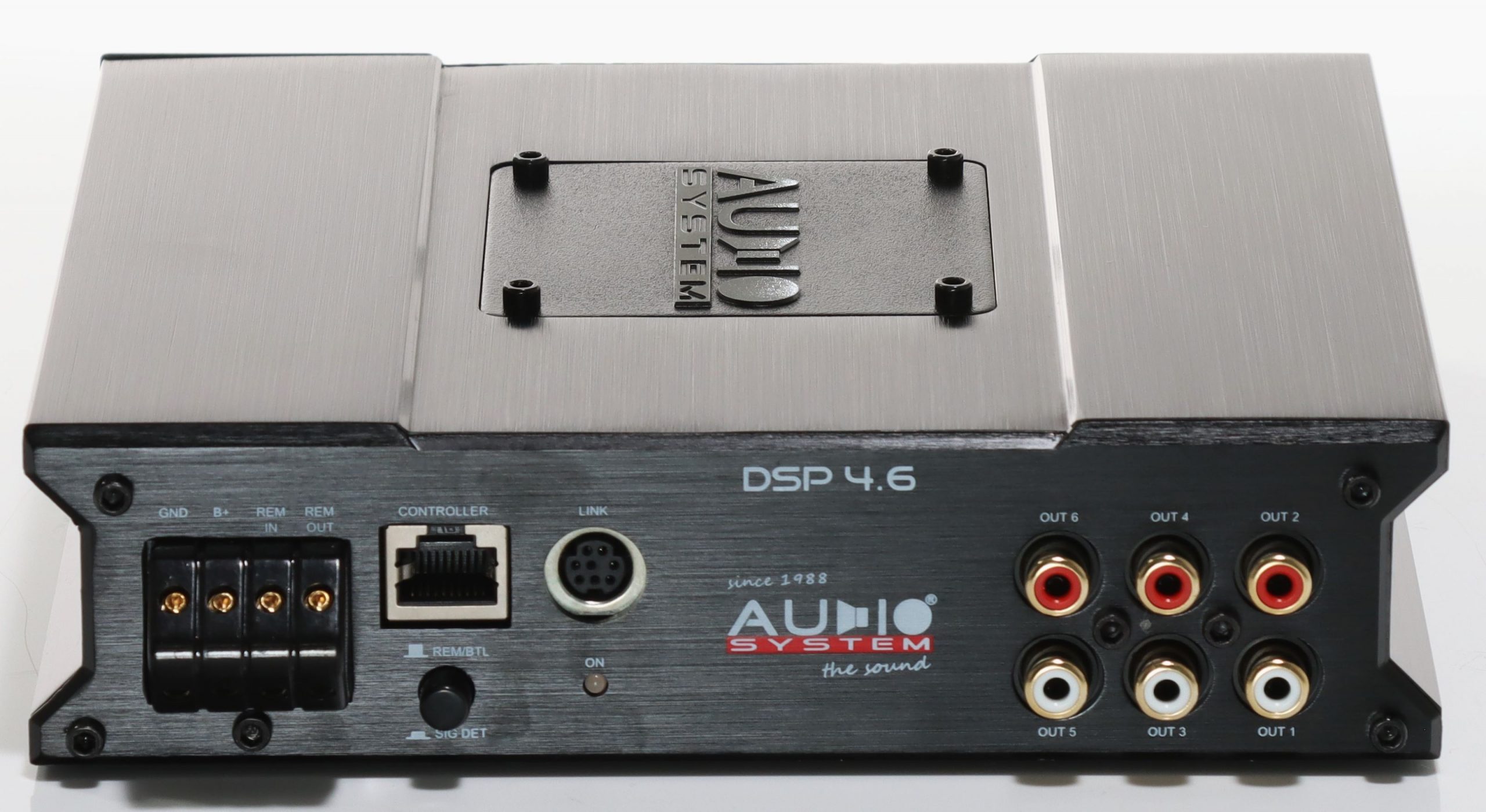

Audio System DSP 4.6 - 6-channel high-performance DSP

DSP 4.6

• DSP-SERIES 6-Channel
• 6-channel high-performance DSP with Freescale multi-core chip
• 4x RCA inputs (low level 2 to 4 volts) and 4x Molex high-level inputs
• (5 to 20 volts) with automatic power-on
• 6x RCA outputs (5 volts)
• 1x AUX input
• 1x optical input and 1x optical output
• 1x remote output
• SD card slot
• Intuitive GUI
• Dual-core chip with 250 MHz processing power
• Sampling rate 96 kHz (192 kHz) (optional)
• Frequency range: 10-44000 Hz
• Signal-to-noise ratio digital: 108 dB, analog: 102 dB
• Crosstalk attenuation greater than 92 dB
• Start/stop capable up to 6 volts/5 seconds
• Operating voltage 9.6-18 volts
• Operating temperature from -20°C to +80°C

Dimensions

• 180 x 160 x 45 mm
