Audio System DSP 8.12 - 12-channel Avalanche

DSP 8.12 Avalanche

• DSP-SERIES 12-Channel Avalanche
• 12-channel high-performance DSP with Freescale multi-core chip

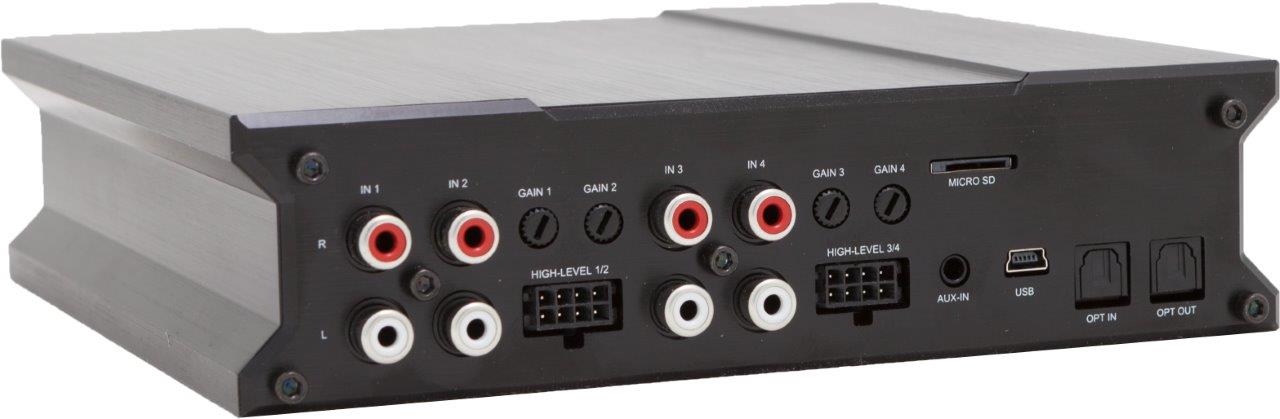

• 8x RCA inputs (low level 2 to 4 volts) and 8x Molex high-level inputs (5 to 20 volts) with automatic power-on

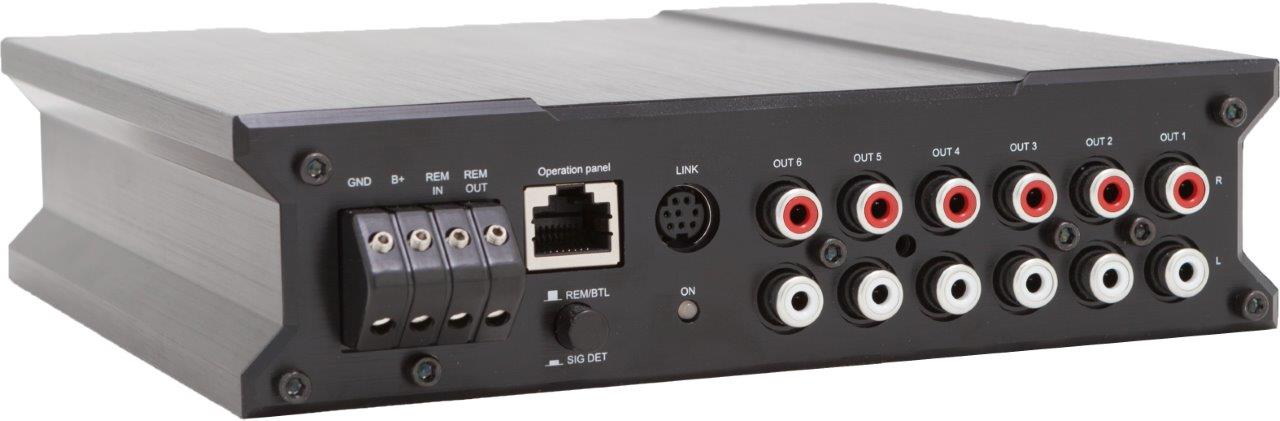

• 12 RCA outputs (5 volts)
• 1x AUX input
• 1x optical input and 1x optical output
• 1x remote output
• SD card slot
• Intuitive GUI
• 2 dual-core chips with 250 MHz processing power each
• 96 sampling rate kHz
• Frequency range: 10-44000 Hz,
• Signal-to-noise ratio digital: 108 dB, analog: 102 dB
• Crosstalk attenuation greater than 92 dB
• Start/stop capable up to 6 volts/5 seconds
• Operating voltage 9.6-18 volts
• Operating temperature from -20°C to +80°C

Dimensions

• 180 x 160 x 45 mm
