Audison Prima APK 130 - 13cm 2-Wege Hochtieftöner

APK 130 - 2-way coaxial 130 cm

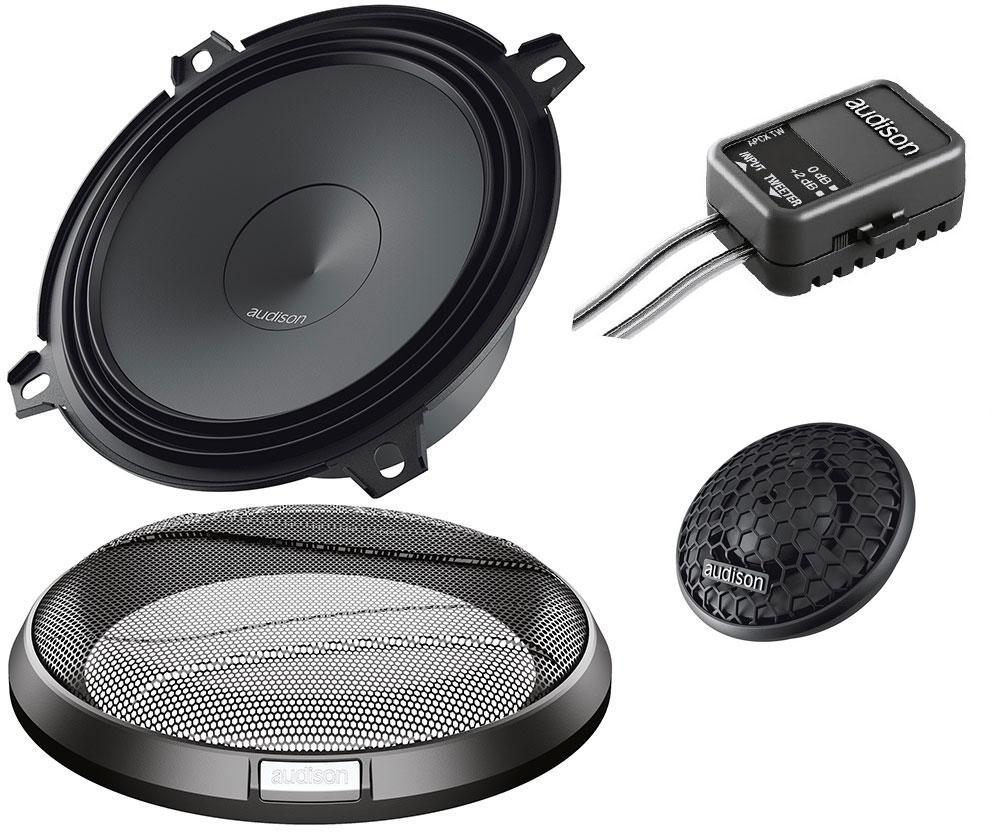

Two way system features AP 1 tweeter and AP 5 Woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications:+2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.
To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

Technical data

• Component: 2-way Coaxial
• Size: Woofer 130 mm (5''), Tweeter 26 mm (1'')
• Power Handling: 225 W peak, 75 W continuos
• Impedance:4 ohms
• Frequency Response: 70 ÷ 20k Hz
• Crossover type: HP at 3,5 kHz - 6 dB Oct
• Componet adjustment: +2; 0 dB
• Magnet size: 85 x 40 x 13 mm
• Weight of one speaker: Woofer 0,65 kg, Tweeter 0,04 kg
• Voice Coil Ø: Woofer 32 mm (1,26''), Tweeter 20 mm (0.8'')
