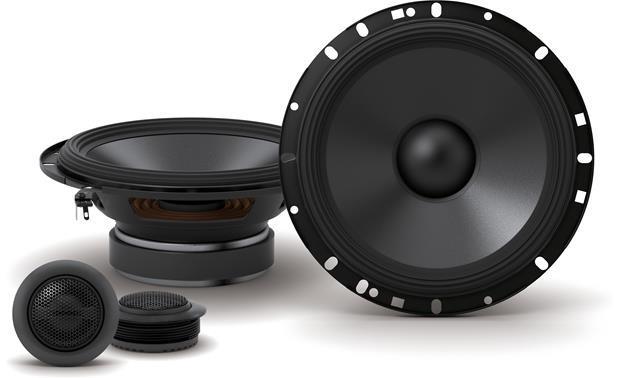

Alpine S-S65C - 16,5cm Composystem

S-S65C
16.5 cm (6.5 inches) 2-WAY COMPONENT SPEAKERS -

The all-new S Series speakers feature the Alpine HAMR multi-roll bead for maximum linear deflection and maximum sound pressure levels while stabilizing membrane movement throughout the stroke for maximum bass response. The new, patented CFRP membrane ensures a particularly pleasant timbre and high dynamics.

• 240 watts peak power (peak)
• 80 watts rated load capacity (RMS)
• Frequency response: 70 Hz - 22 kHz

domestic equipments

woofer

• CFRP (Carbon Fiber Reinforced Plastic) membrane with special rubber surround
• HAMR (High Amplitude Multi-Roll) Surround
• 35 mm voice coil
• Magnet Material: Ferrites
• Speaker cover : KTE-S69G (sold separately)

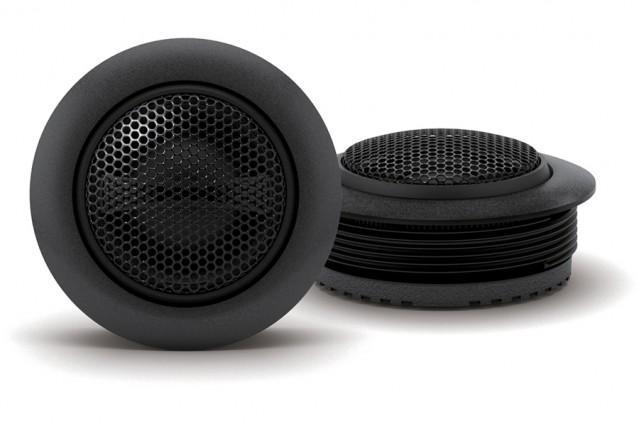

tweeter

• Tweeter construction: 2.5 cm (1-inch) Höchtöner with silk dome
• Magnetic material: neodymium
• swiveling tweeter kit
• for integrated mounting
• Speaker cover punched

crossover

• Crossover with 2nd order filter

specifications

load-bearing capacity

• Peak load (peak): 240 watts
• Rated Resilience (RMS): 80 watts (CTA-2031 compliant)

Dimensions woofer

• Frame 165 mm
• Installation depth: 57.7 mm
• Installation height: 12.0 mm
• Magnet: 90.0 mm

Dimensions tweeter

• Frame: 37.8 mm
• Dome: 26.6 mm
• Height: 17.4 mm

General

• Frequency response: 70 Hz - 22 kHz
• Impedance: 4 ohms
• Efficiency: 88 dB / W
