HELIX P 62C
Built puristically for maximum sound quality - the component systems of the P series don't need to draw attention to themselves with visual gimmicks. During construction, the focus was on the acoustic result. And thanks to the technical finesse, this can really be heard. Starting with the unique fiberglass-paper compound membrane of the woofer, through the hand-coated silk dome of the tweeter to the elaborately wired crossover with impedance correction and blocking circuit. The conclusion of the trade press is concise and clear - "the Precision P 62C easily asserts itself in its class in terms of sound". We could hardly have summed up the qualities of this excellent component system better.
Features

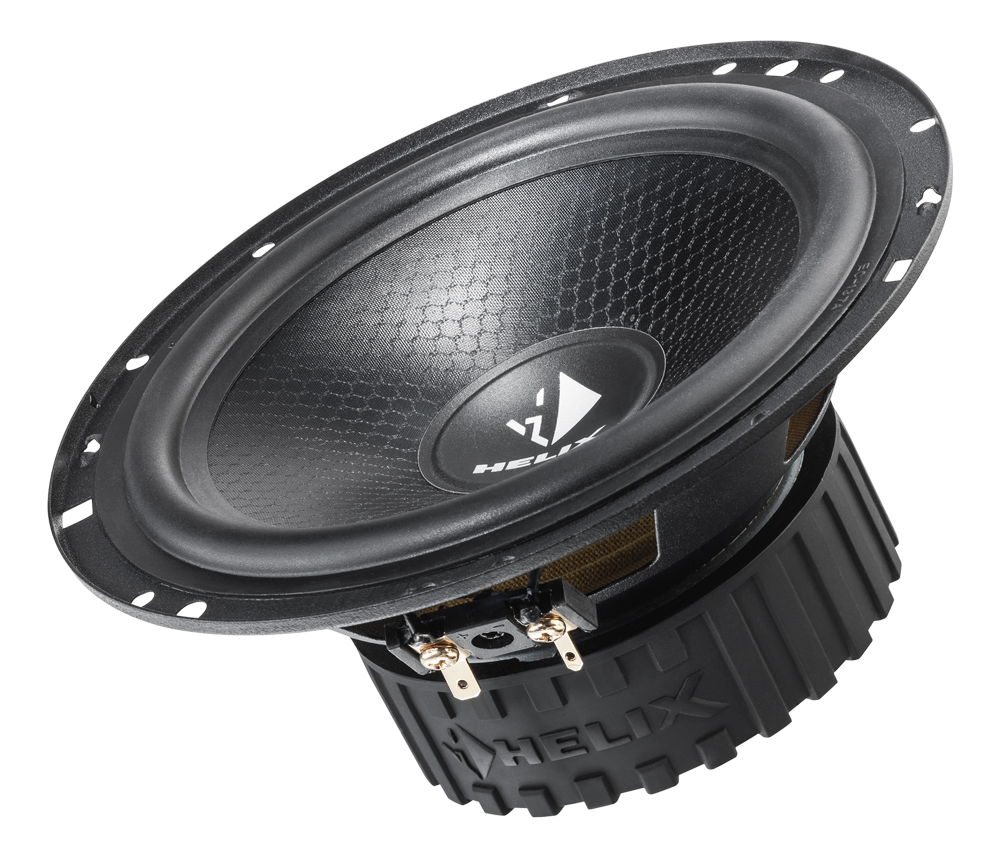

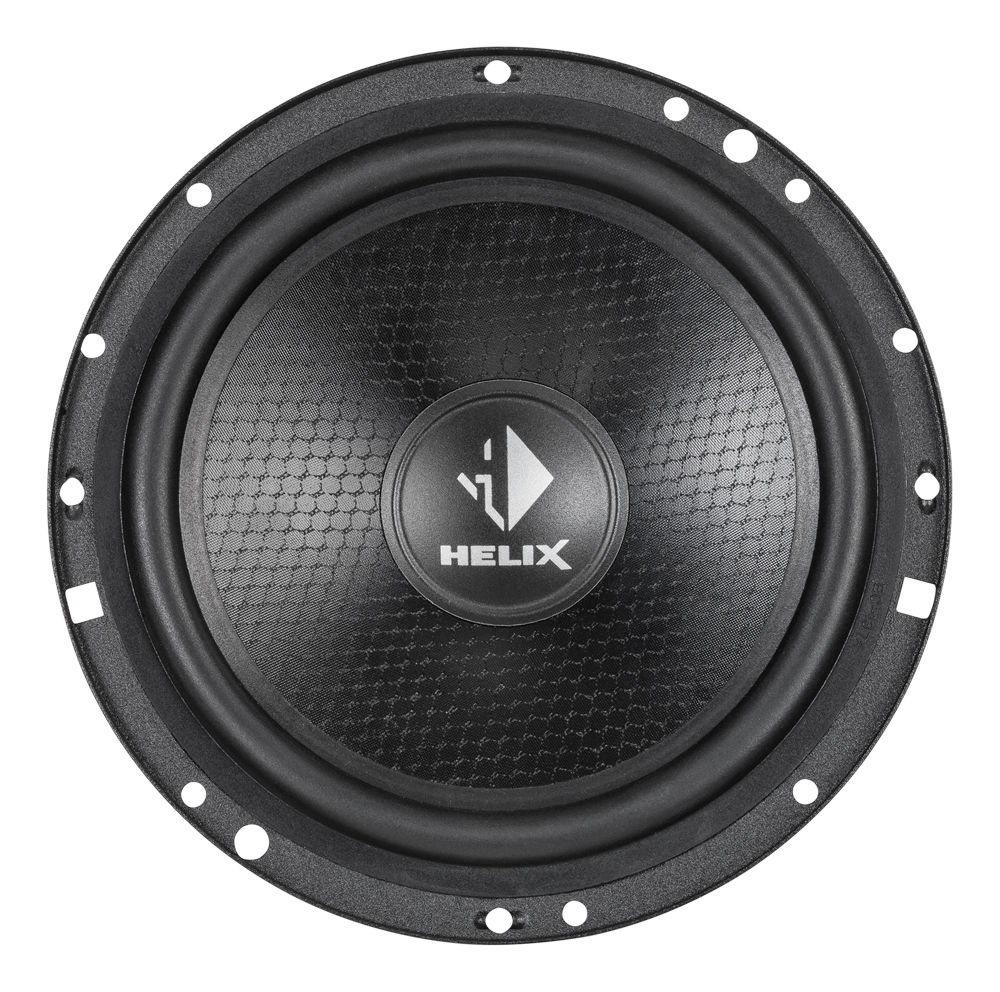

- 165 mm bass-midrange driver with a new fiberglass-paper compound membrane for maximum rigidity with lowest weight and optimal internal damping

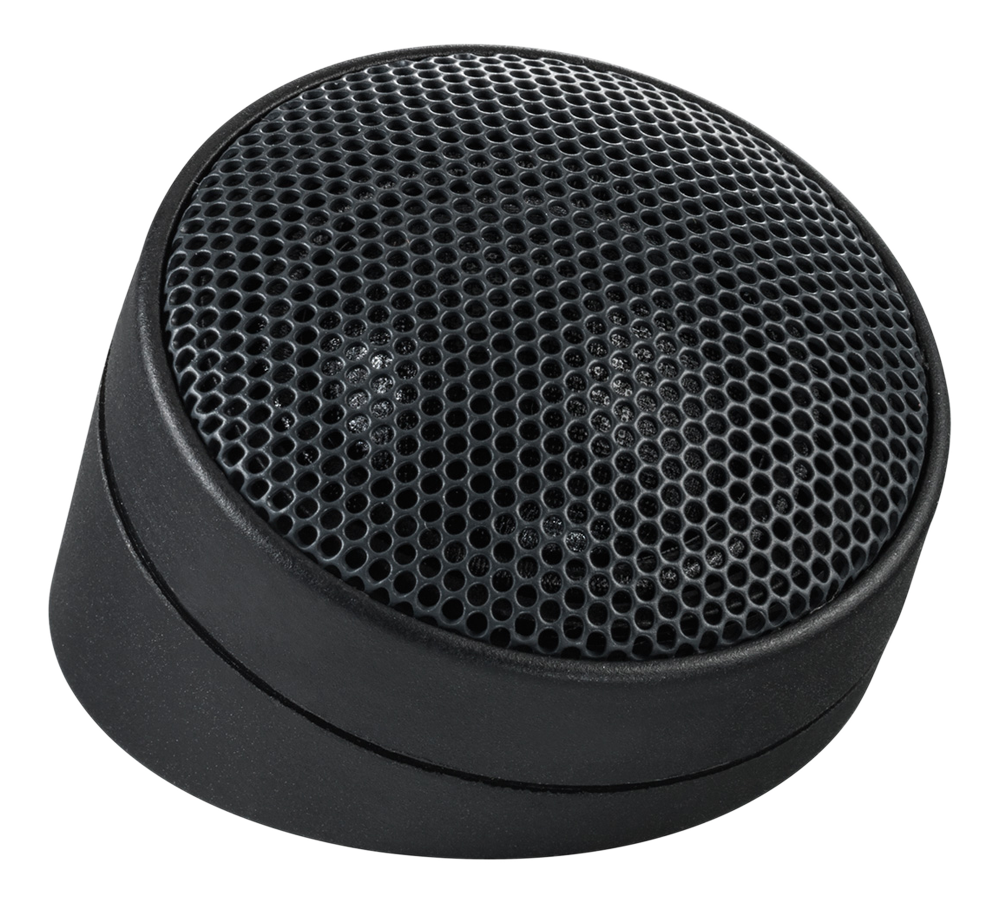

- 25 mm tweeter with hand-coated silk dome for balanced, natural reproduction and minimal compression effects

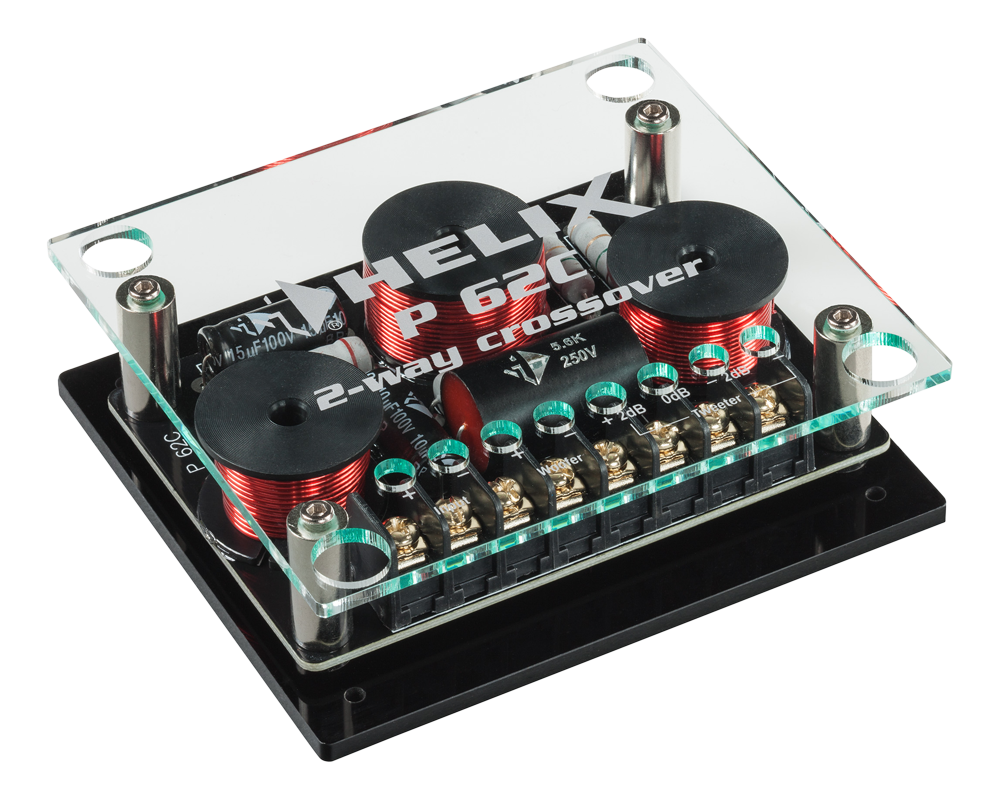

- Sophisticated crossover with impedance correction, three-stage treble level adjustment and blocking circuit; exclusively equipped with particularly high-quality components:
- Distortion-free air coils with the lowest internal resistance
- Low-induction metal film resistors
- Low-loss Audiotec film capacitors in the tweeter branch - Gold-plated connection terminals
- Grid included in delivery
Technical data
| Performance RMS / Max. | 100 / 200 watts |
| Frequency range | 40 Hz - 25,000 Hz |
| Impedance | 4 Ω |
| Efficiency 1 W / 1 m | 90 dB |
| Membrane material | HT: Silk coated MT: - TT: Glass fiber paper compound |
| Crossover | 6/12 dB with impedance compensation, blocking circuit and treble level adjustment |
| Outside diameter | HT: 58 mm MT: - TT: 165.5 mm |
| Installation diameter | HT: 49.3 mm MT: - TT: 142 mm |
| Installation depth | HT: 15 mm MT: - TT: 67 mm |

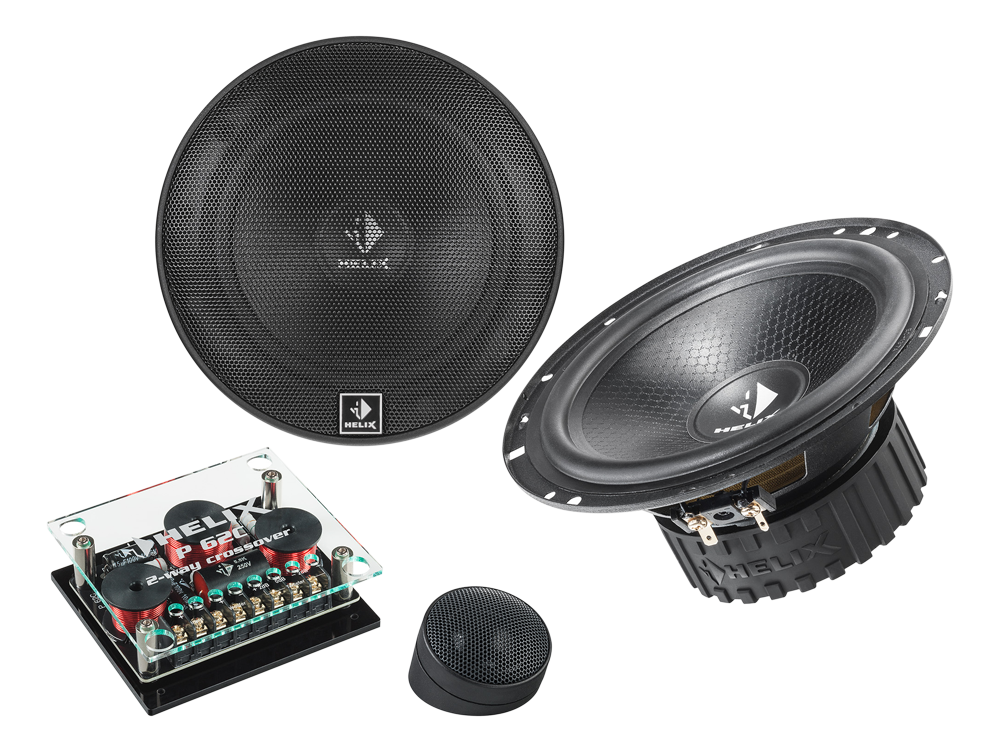

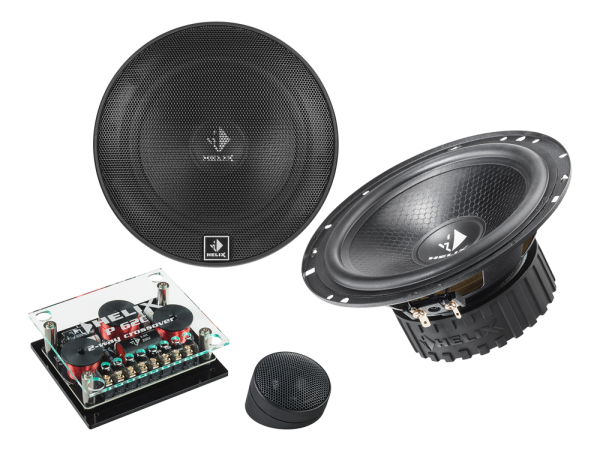

Scope of delivery
2 x HELIX P 1T tweeter incl. installation pot
2 x HELIX P 6B mid-bass driver incl. mounting ring and protective grille
2 x 2-way crossover
2 x inclined desk for tweeter
2 x retaining spring for tweeter
1 x mounting material
| quantity: | 1 pair |
| Diameter (in cm): | 16,5 |
| Housing color: | black |
| Impedance (in Ohm): | 4,0 |
| Speaker Type: | Compo-System |
| Speaker Features: | 2 ways |
| Peak Power (in Watt): | 200 |
| Power RMS (in Watt): | 100 |
| Product group: | Speaker |
