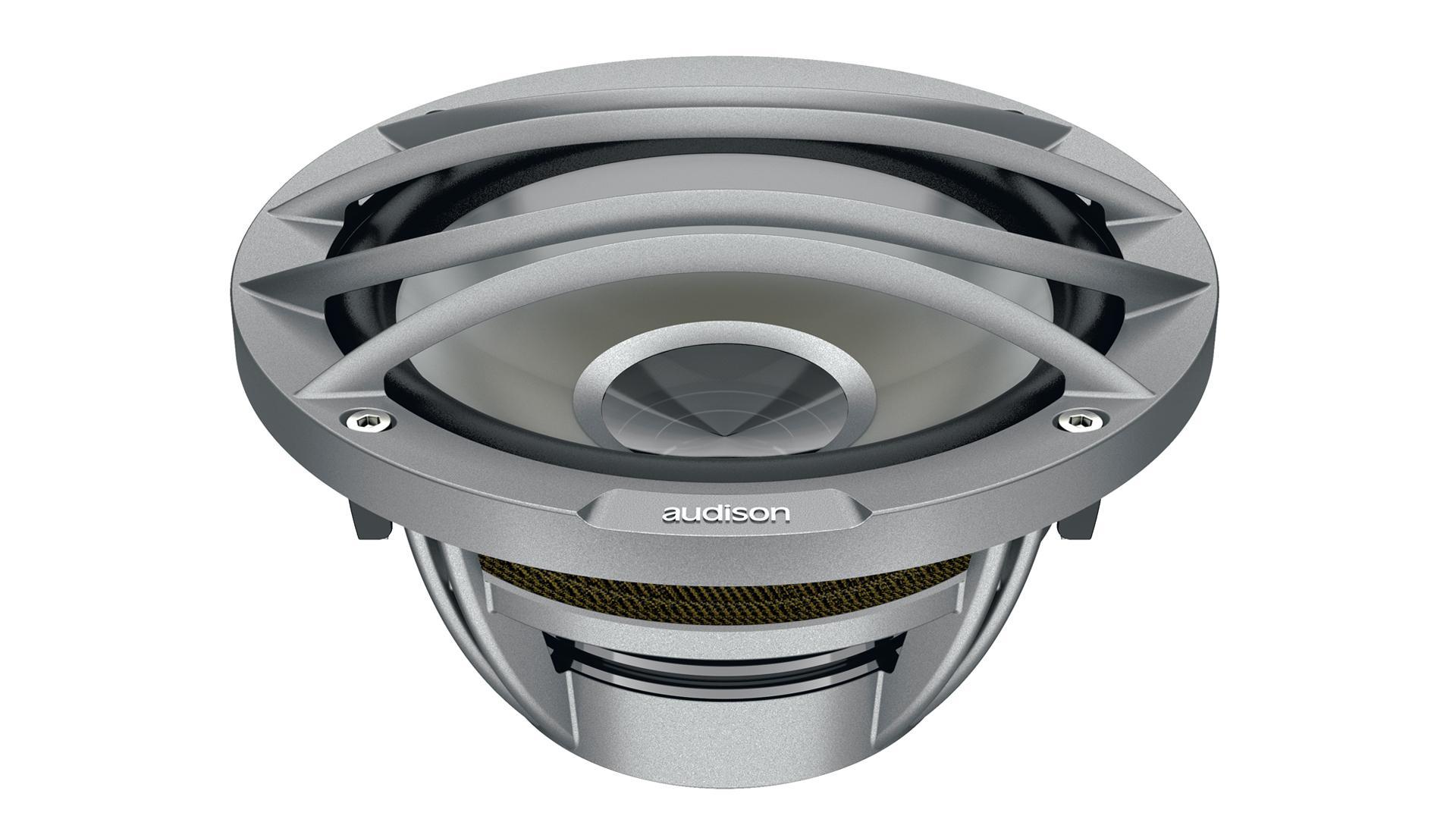

Audison TH 6.5 II sax- 16,5cm Tiefmitteltöner mit Gitter

TH 6.5 II Sax

The TH 6.5 II sax captures the listener with its sound quality, timbre accuracy and impulsive  response.
The X-pulp cone, produced using cellulose pulp and a glass fibre mesh, provides the highest rigidity with the warm and detailed sound typical of cellulose.
The high precision mechanical parts were created by machining solid one piece material, including a REN (Rare Earth Neodymium) magnet. The single layer, flat wire, edge wound voice coil enhances the compact size and light weight of the mobile group while still maintaining unmatched thermal dissipation.
The anti-resonant die cast alloy basket, the aerodynamic profile of the spokes, together with the "open-air" design drastically reduce back wave reflections.
The zinc alloy grille protects without altering the acoustic performance.

Component Woofer

• Size: 165mm (6.5?)
• Power Handling: 300W Max / 150W at 1.8Hz-12dB Oct. RMS
• Impedance: 6 Ohm
• Frequency response: 35Hz - 4kHz
• Sensitivity: 91dB/SPL
• Outer diameter: 163mm
• Mounting hole diameter: 145,5mm
• Magnet size: 90mm
• Total depth: 82,2mm
• Mounting depth: 71,5mm
• Weight of one component: 1,51kg
• Voice coil diameter: 40mm
• Grille Included
• Magnet Neodymium REN
• Cone X-pulp + Polycrystal
• Surround TWR
