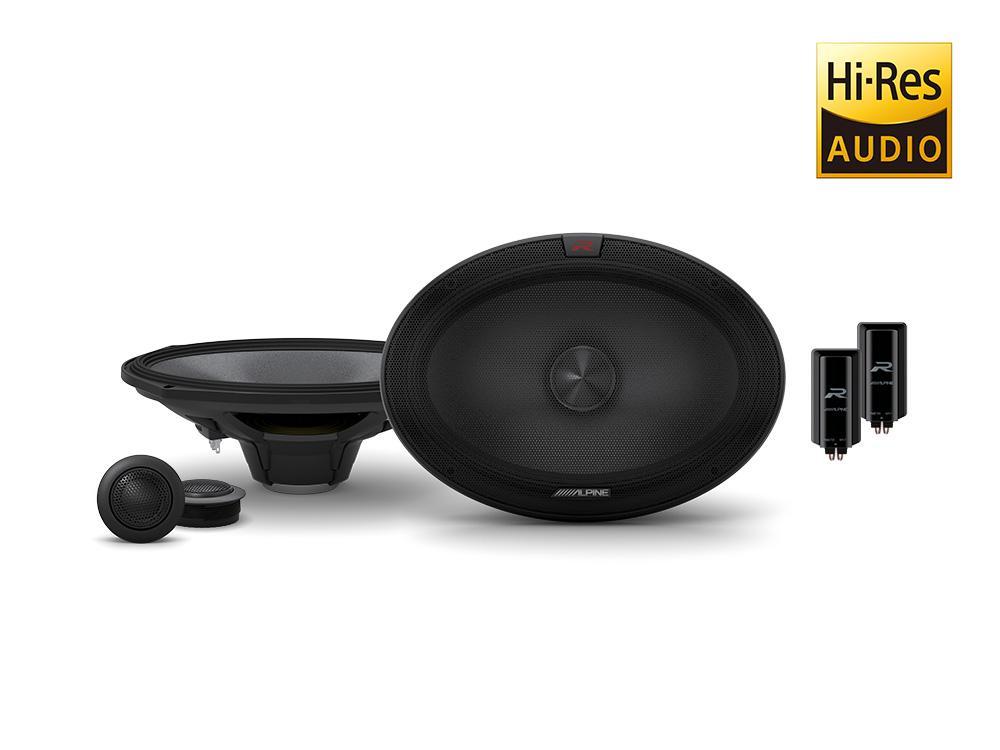

Alpine R-S69C.2 - 6x9" Composystem

R-S69C.2

16 x 24 cm cm (6 x 9 inches) 2-WAY COAXIAL COMPONENT SPEAKERS - Max Power: 300 Watts - RMS Power: 100 Watts
Discover the second generation of R Series speakers for better sound quality and bass performance.

• The R Series loudspeakers and amplifiers astonish with their amazing levels and unbelievable clarity of sound - for an absolutely fantastic sound.
• They combine high output power and load capacity with a wide frequency response and powerful bass. The R-Series includes component and coaxial speakers, subwoofers and now for the first time amplifiers.
• Peak power handling: 300 watts
• RMS Power: 100 Watts
• Frequency response: 65 Hz - 40 kH

domestic equipments

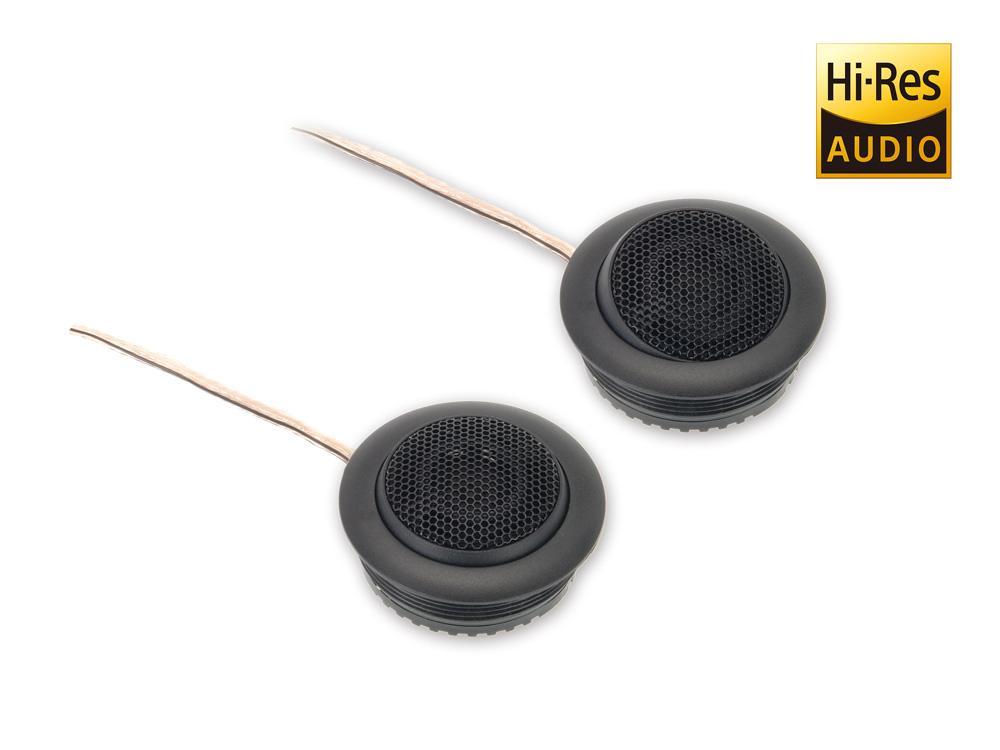

tweeter

• Tweeter Type: 2.5 cm (1-inch) tweeter
• CFRP (Carbon Fiber Reinforced Polymer) voice coil
• Neodymium magnet
• Swiveling tweeter
• Hi-Res audio compatible

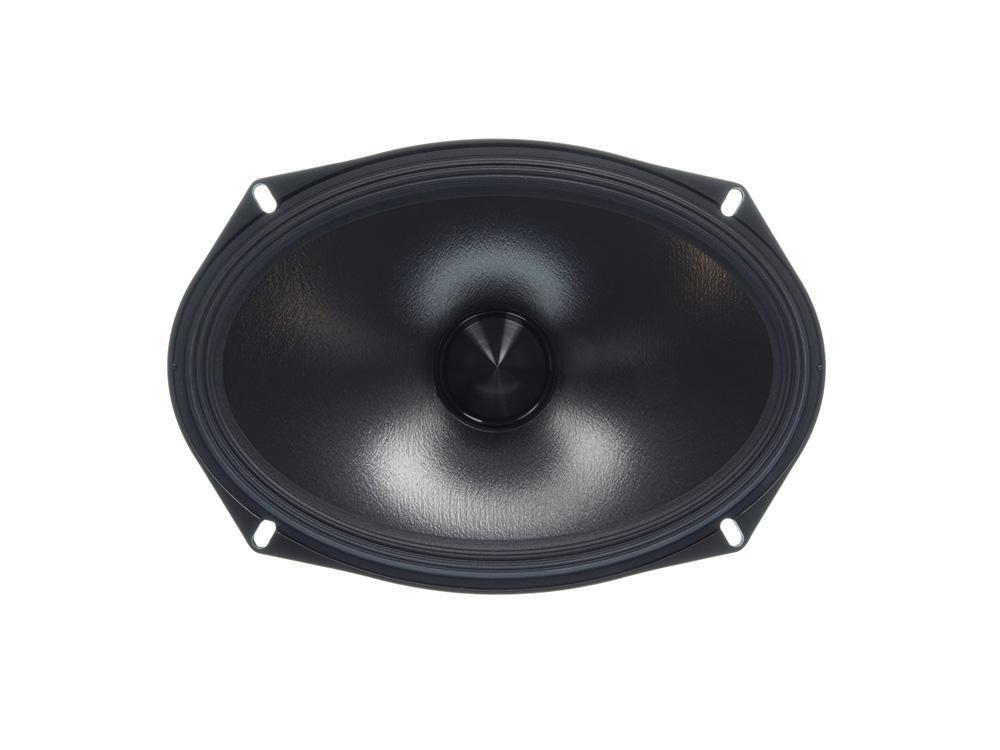

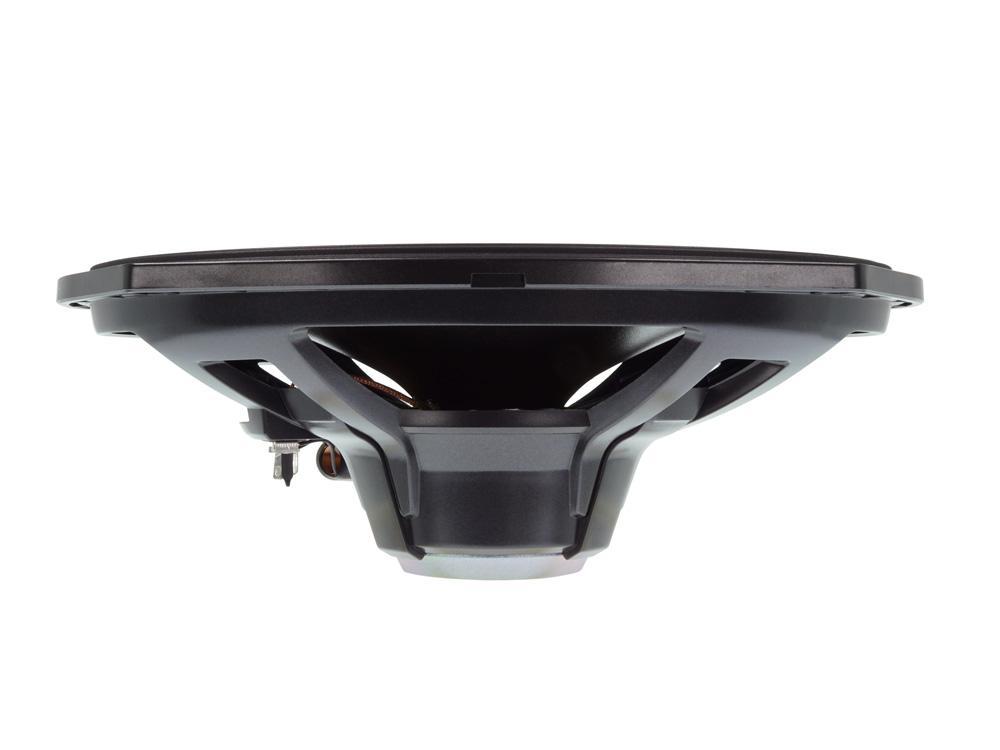

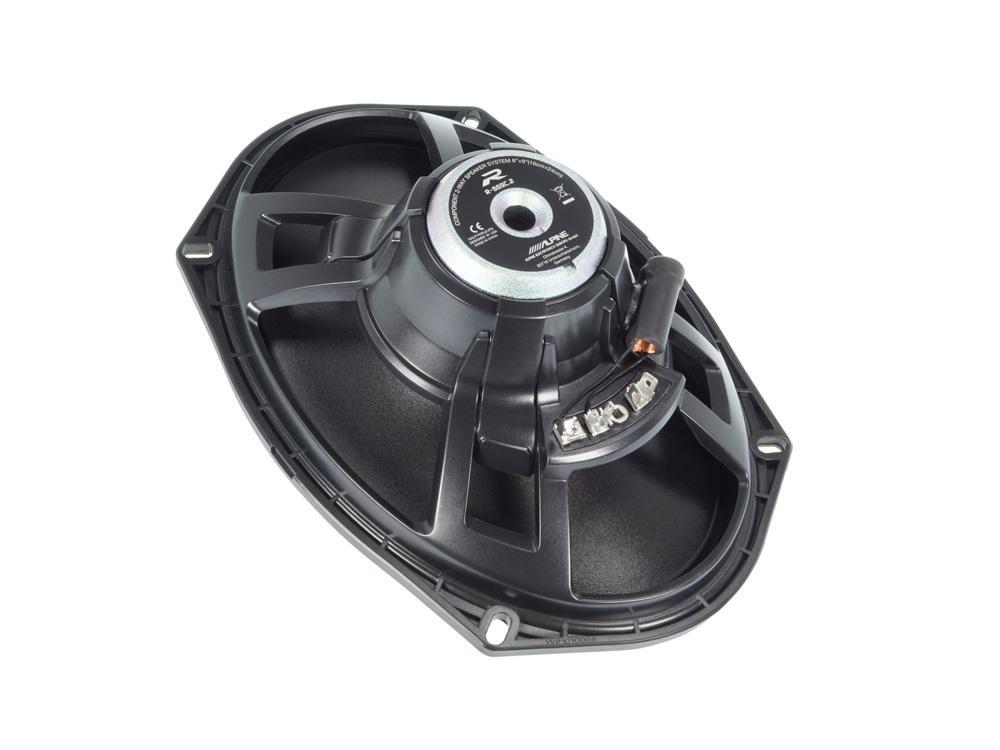

woofer

• CFRP (Carbon Fiber Reinforced Polymer) Membrane
• Linear Drive Technology
• HAMR membrane suspension
• large 35 mm aluminum voice coil
• Square aluminum voice coil wire for high amplifier performance
• Ultra High Density Neodymium Magnet
• DX-ring
• low installation depth
• Mounting rings included
• Bi-Amp Ready

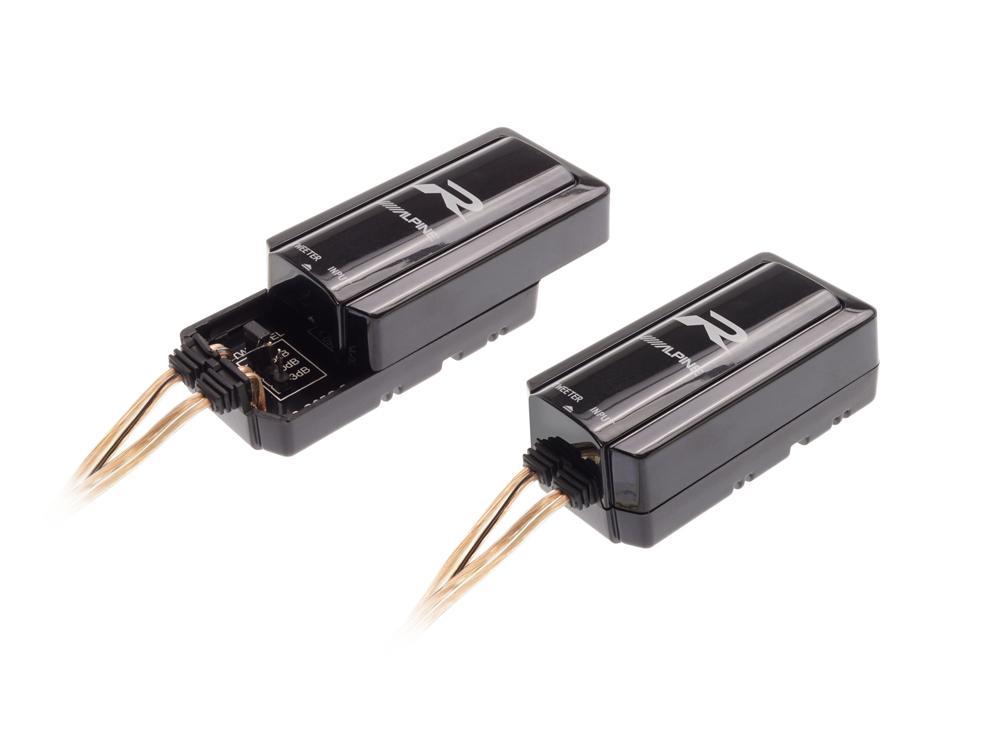

crossover

• In-line Network Design
• Treble volume: 3 levels adjustable (+3, 0, -3 dB)
• High grade network components

specifications

load-bearing capacity

• Peak load (peak): 300 watts
• Rated load capacity (RMS): 100 watts

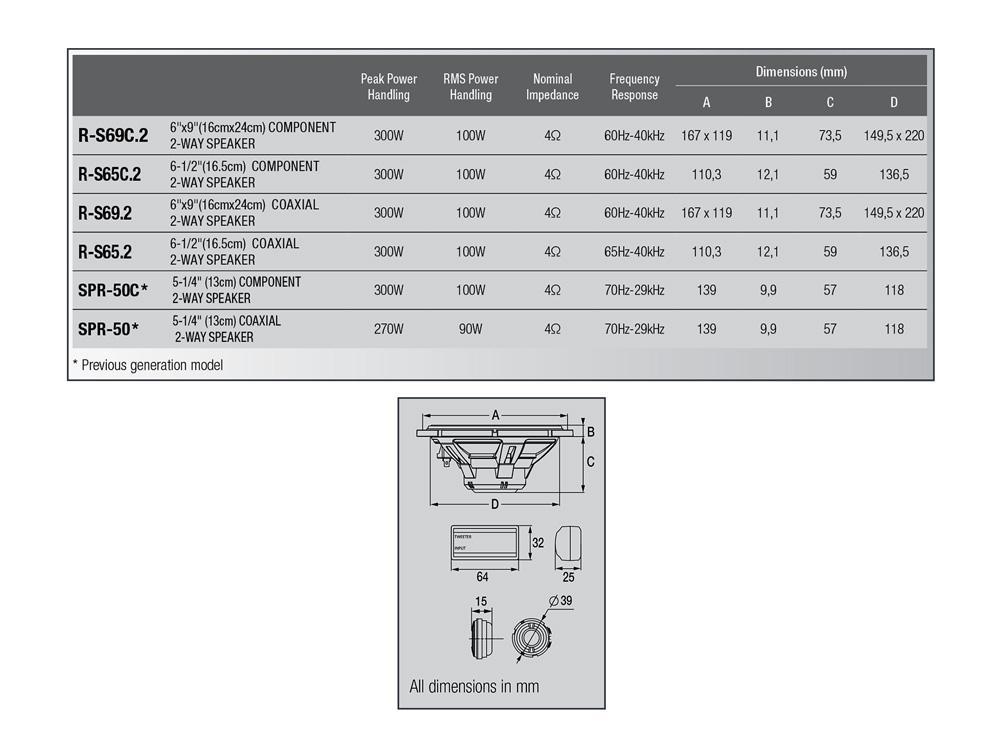

Dimensions

• Woofer installation diameter: 150 mm x 220 mm
• Woofer installation depth: 74 mm
• Tweeter installation diameter: 51 mm
• Tweeter installation depth: 17.6 mm

General

• Frequency response: 65 Hz - 40 kHz
• Impedance: 4 ohms
• Efficiency: 90 dB / W (1m)
