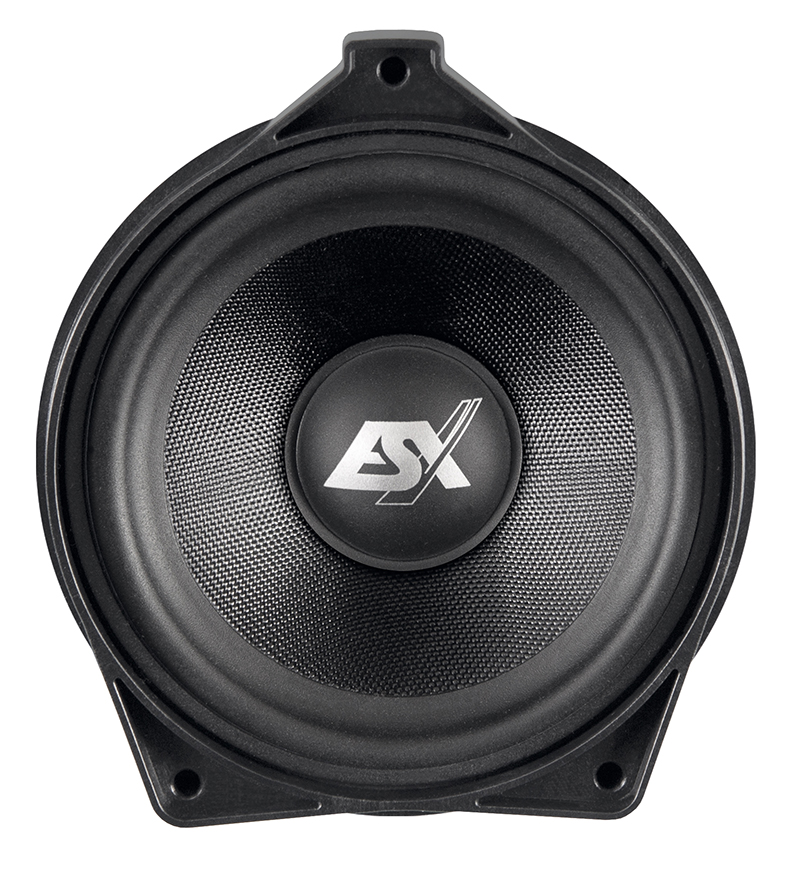

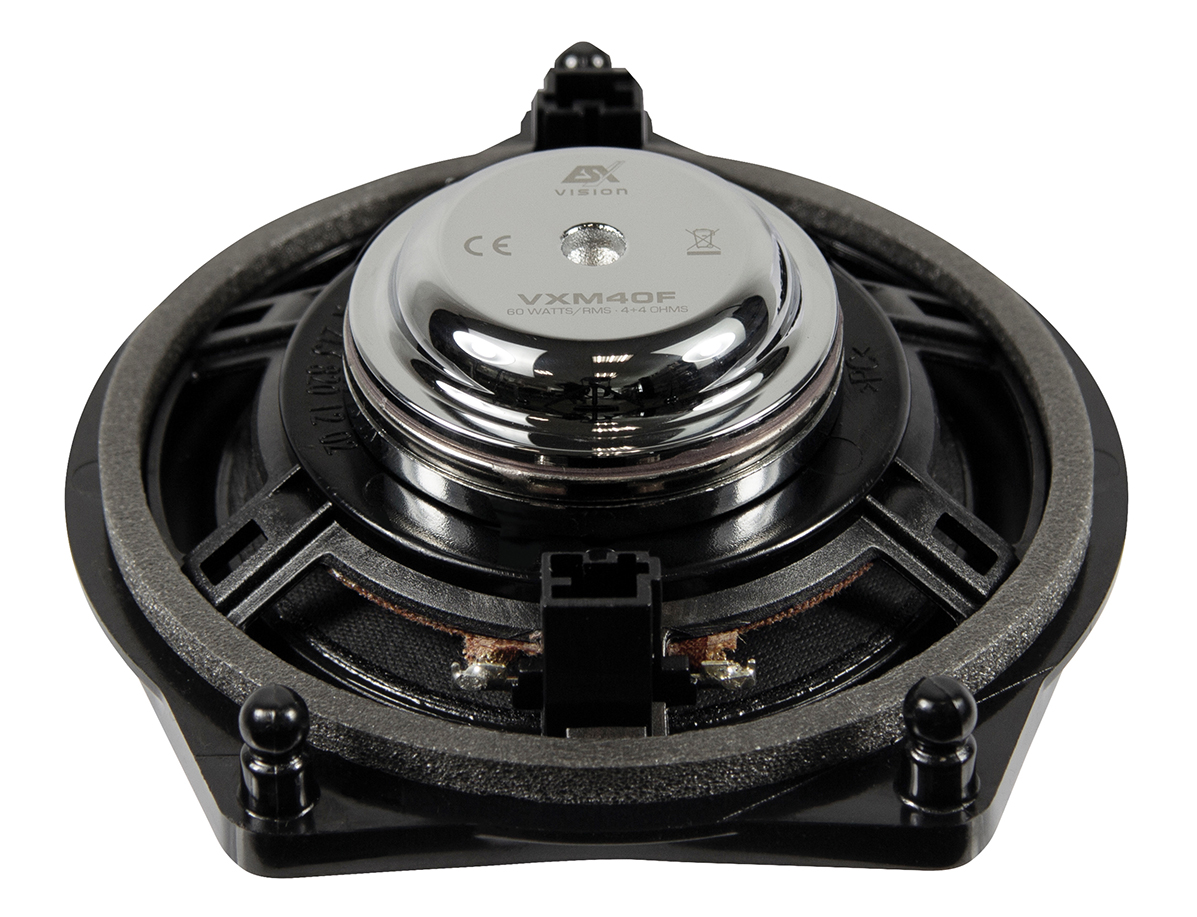

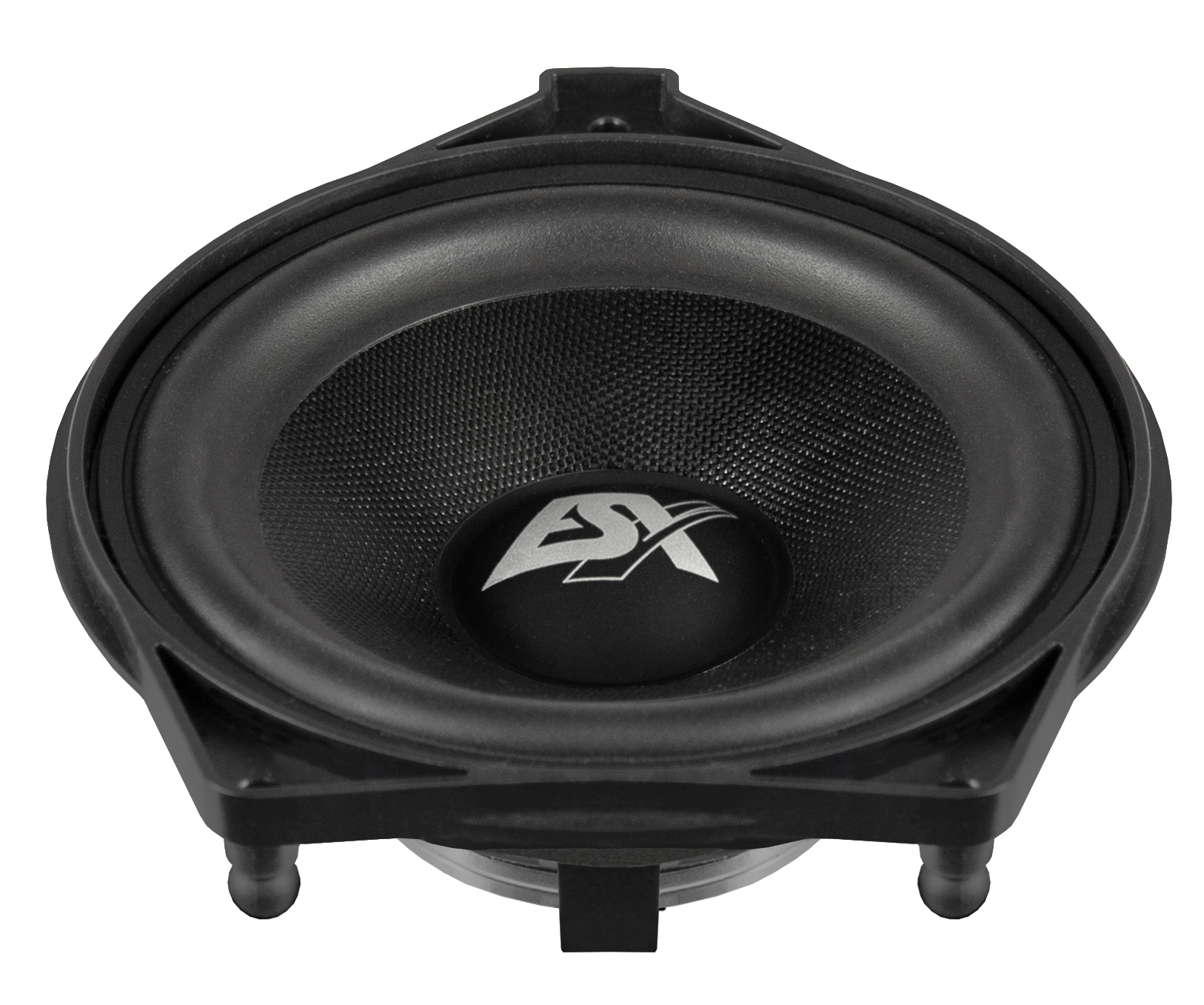

ESX VXM40F - 10cm center speaker for Mercedes-Benz

Sound gourmets know - the music system in new Mercedes vehicles often sounds rather modest, one wishes for an upgrade.
The VISION VXM Loudspeakers were developed exactly for this case.
Conventional standard loudspeakers do not fit in Mercedes vehicles.
In the models mentioned, different 20 cm woofers with special installation dimensions are required for the driver and passenger side.
To save weight, ESX manufactures the subwoofers in a lightweight ABS construction, with robust metal grilles on the front for protection.
Like all VXM loudspeakers, they also have efficient and powerful neodymium magnets.
Since very linear reproduction is particularly important in the midrange, the 10 cm VXM models use very light glass fiber membranes.
The 2-way VXM4.2C component with separate tweeters is recommended for front doors, and the VXM42 coaxial set for the rear. Both have light silk domes for the best high-frequency reproduction.
Thanks to the second voice coil, the VXM40F center loudspeaker can be connected to the Mercedes SOS system.
It has always been Care has been taken to ensure that the components are easy to install.
There is no need to cut cables or remove any metal parts.

Technical data

• 10 cm (4”) center speaker
• Load capacity 60/120 watts RMS/Max.
• Impedance 4 + 4 Ω
• Frequency range 75 - 18,000 Hz
• 107 mm midrange speaker with glass fiber cone
• Lightweight ABS basket
• Double voice coil for SOS function
• N45 neodymium magnet drive
• Vehicle-specific Plug+Play connections

Compatibility

Mercedes-Benz C / GLC / E Class
