Alpine SPC-2045ABMW-HR - Sound system for BMW

Alpine SPC-2045ABMW-HR - Sound System for BMW

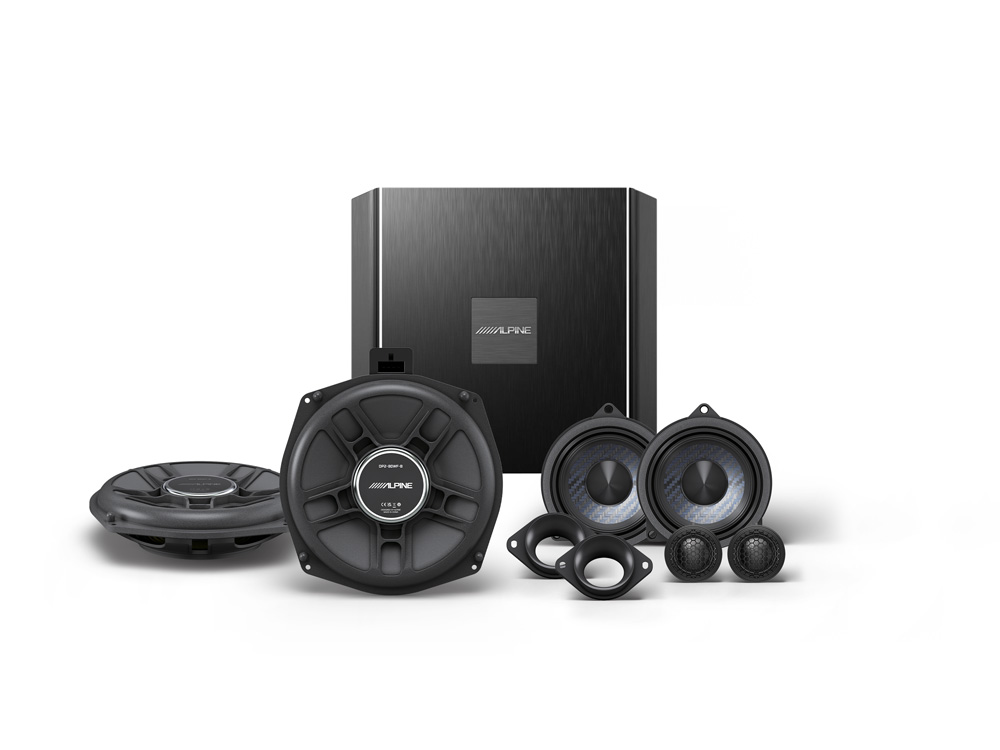

PREMIUM SOUND SYSTEM for BMW G-Series with RAM Radio - consisting of door speakers, under-seat subwoofers, and a 12-channel sound processor

Experience a sound experience like never before! Our exclusive sound system was specially developed for BMW G models with RAM (Radio Amplifier Module). It integrates seamlessly with your factory audio system and unleashes your BMW's full potential with crystal-clear highs, deep bass, and an impressive soundstage.
Precisely tuned to the factory RAM system, our solution offers maximum performance without extensive modifications. Plug & Play - for an effortless upgrade that takes your driving experience to the next level!

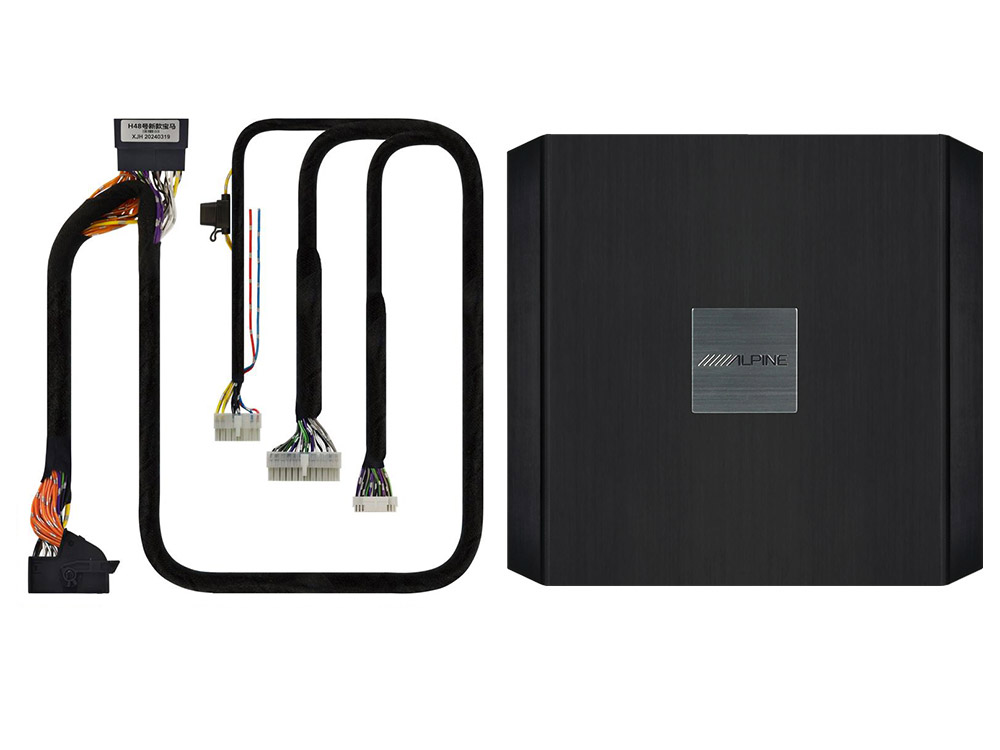

The high-end tweeters let you hear every note with breathtaking clarity and fast dynamics, while the optional 10 cm center speaker (DP2-40C-BC) and the included 12 cm midrange speakers in the doors produce a wide frequency range that reveals the rich details of each audio track. This reproduces your favorite songs with powerful mid-bass, amazing texture, and precision. The under-seat subwoofers, also included in the scope of delivery, utilize the space of the original subwoofers under your BMW's seats and complement the Alpine Premium Sound System with powerful bass. The 12-channel sound processor is optimally tuned to the sound characteristics of your BMW, ensuring perfect sound quality. Features 12-Channel Audio Processor

• Input signal: 12-channel line-level, 2-channel RCA audio, high-resolution Bluetooth, optical/coaxial
• Output signals: 10-channel line-level, 2-channel RCA audio
• RMS power per channel 1-4 at 4 ohms: 25 W/RMS x 4 (14.4 V at 10% THD)
• RMS power channel 5-8 at 4 ohms: 50 W/RMS x 4 (14.4 V at 10% THD)
• RMS power channel 9-10 at 4 ohms: 100 W/RMS x 2 (14.4 V at 10% THD)
• Power supply: 12 V
• Dimensions: 250 mm x 234 mm x 50 mm
• Pre-programmed sound settings with EQ and digital time correction for BMW G-Series
• Adaptations for LHD or RHD vehicles

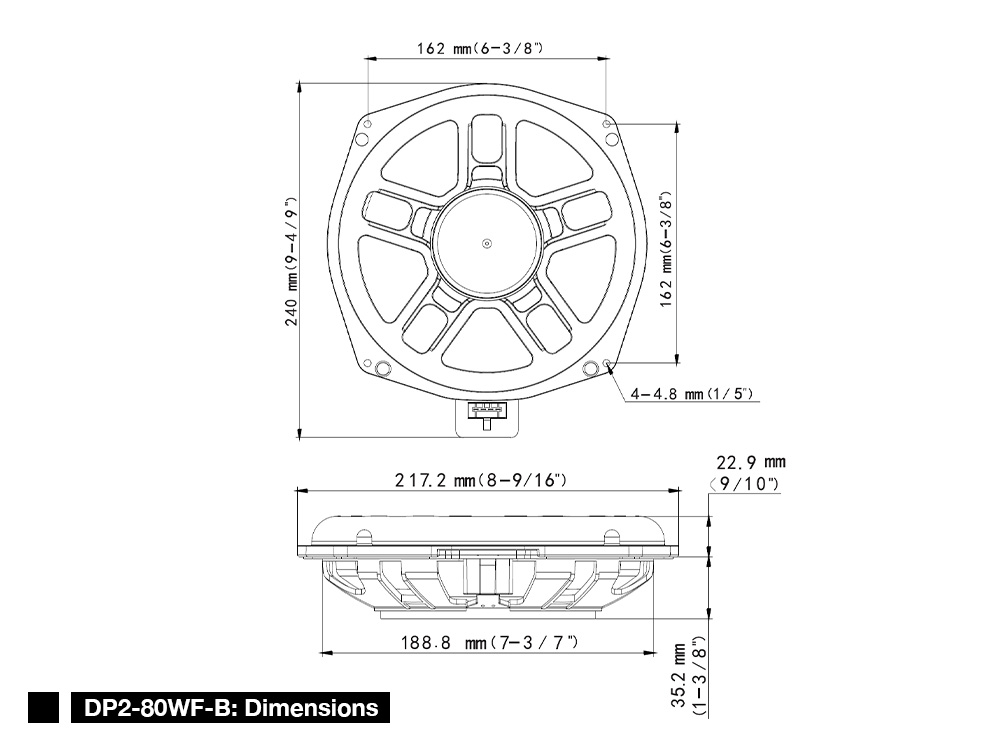

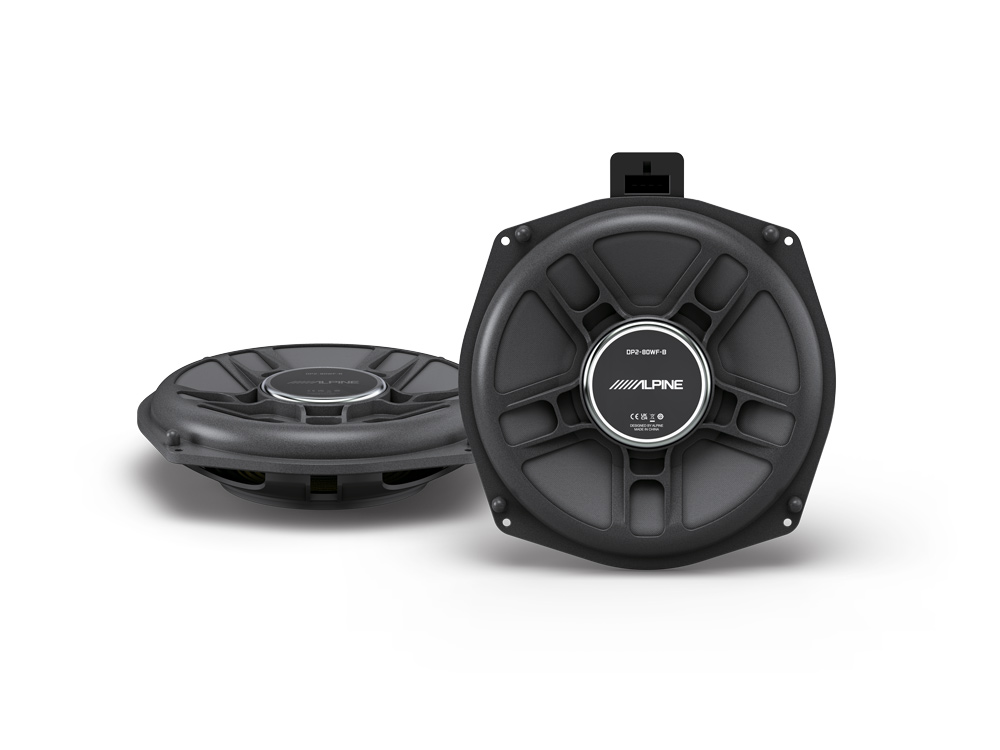

20 cm (8-inch) Under-seat subwoofer

• Frequency range: 35 Hz-500 Hz
• RMS power: 100 W/RMS
• Max. power: 200 W
• Magnet: Neodymium
• Cone material: Bulletproof carbon
• Woofer size: 20 cm (8-inch)

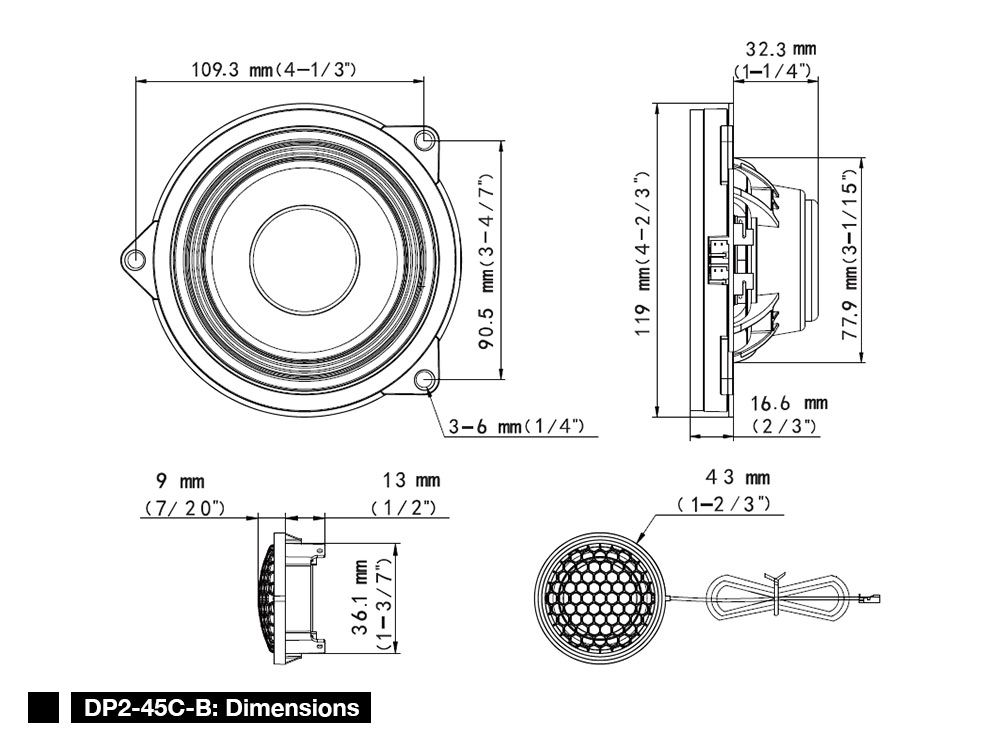

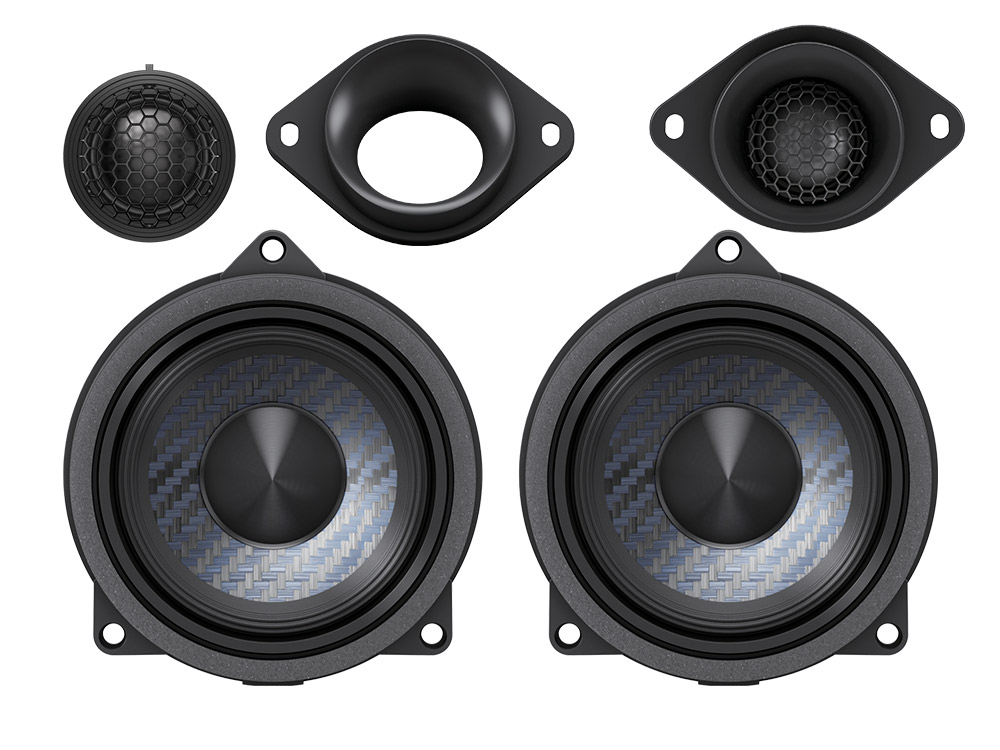

12 cm (4.5-inch) 2-way component speaker

• Frequency range: 90 Hz-20 kHz
• RMS power: 50 W/RMS
• Max. Power: 100 W
• H.A.M.R. surround
• Plug-and-play for BMW vehicles
• Cone material: Hybrid carbon fiber cone
• Magnet: Neodymium
• Surround: H.A.M.R. multi-roll surround
• Connector terminals: Gold-plated
• Tweeter dome: Tetoron soft dome
• Tweeter magnet: Neodymium
• Woofer dimensions: 12 cm (4.5-inch)
• Tweeter dimensions: 2.5 cm (1-inch)

Optional 10 cm (4-inch) 2-way center speaker style="text-decoration: underline;">DP2-40C-BC

• Frequency range: 90 Hz-20 KHz
• RMS power: 50 W/RMS
• Max. Power: 100 W
• H.A.M.R. surround
• Plug-and-play for BMW vehicles
• Cone material: Hybrid carbon fiber cone
• Magnet: Neodymium
• Surround: H.A.M.R. multi-roll surround
• Connector terminals: Gold-plated
• Tweeter dome: Tetoron soft dome
• Tweeter magnet: Neodymium
• Woofer dimensions: 10 cm (4-inch)
• Tweeter dimensions: 2.5 cm (1-inch)

Compatible vehicles

Note

The wiring harness fits vehicles factory-equipped with the 'Hifi' system, code SA676A.
If your vehicle is not listed here, please ask your local Alpine dealer for compatibility.
