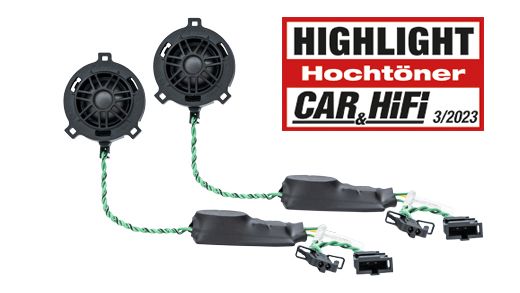

ETON UG VAG 25
High-quality 25 mm / 1 inch tweeter, compatible with many VAG / VW models, plug & play tweeter with fabric dome, made in Germany
The newly developed UG VAG 25 plug & play tweeter from the ETON Upgrade series is compatible with various VAG / VW models from 2008 with the MQB standard, e.g., the Polo V, Golf 6 and 8, E-Golf, Tiguan, and Caddy. The 25 mm (1") ETON tweeter can be easily replaced with the original tweeter in the A-pillar thanks to its specific 3-point mount. The special VAG-specific, precisely fitting double connectors enable quick installation.
The UG VAG 25 impresses with smooth and unobtrusive, contoured treble reproduction. The finest treble details are reproduced with ease – and are suitable for long-distance travel! A low resonance frequency of 1.2 kHz speaks for itself.
The UG VAG 25 is equipped with a powerful neodymium magnet with multi-stage damping and a vented 25 mm voice coil. The specially coated fabric dome ensures optimal omnidirectional dispersion thanks to the new dome geometry.
In addition, specially tuned cable crossovers equipped with high-quality components ensure perfect coupling to the woofer/midrange driver. The crossovers are space-saving and easy to install. They feature level adjustment of 0 dB and +3 dB, each with 12 dB/octave.
The UG VAG 25 is made in Germany and harmonizes perfectly with the ETON UG VAG 14 woofer/midrange driver - a perfect bundle for VAG vehicles.
Technical Specifications
- 25 mm (1") Plug & Play tweeter with coated fabric dome
- Compatible with various VAG / VW models from 2008 with MQB standard
- Strong neodymium magnet with coupling volume and multi-stage damping, vented voice coil
- Low resonance frequency 1.2 kHz
- Specially designed VAG-typical Plug & Play tweeter Play connection flange with 3-point mount
- Specially tuned cable crossovers equipped with high-quality components, 12 dB/octave slope, level adjustment on the crossover (0 dB / +3 dB), precisely fitting VAG-specific double connectors
- Developed and manufactured in Germany
- 50 W RMS nominal power handling, 90 W peak power handling, 4 ohm impedance
- Total height including solder lugs approx. 20 mm, outer diameter with ears 60 mm, without ears 50 mm
Scope of delivery:
- 1 pair of tweeters with cable crossovers
| quantity: | 1 piece |
| Diameter (in cm): | 2,5 |
| Impedance (in Ohm): | 4,0 |
| Speaker Type: | Tweeter |
| Speaker Features: | 2 ways, Car specific |
| Power RMS (in Watt): | 50 |
| Product group: | Speaker |
