Helix Ci5 M50FM-S3 - 5cm Advanced full range speaker

HELIX Ci5 M50FM-S3

HELIX COMPOSE. The perfect speaker for every composition.
Born out of the increasingly demanding challenges of modern vehicle technology and HELIX's typical pursuit of intelligent solutions, we made it our mission to redesign proven universal speaker systems.
The result: the innovative HELIX COMPOSE platform, which combines classic universal speakers with the advantages of vehicle-specific systems according to the principle "developed in the car, for the car." Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: very high efficiency, fantastic sound quality, and enormous dynamics that fit into any vehicle.
HELIX COMPOSE – universal speakers taken to the next level.

The sound sensation for discerning music lovers
The HELIX COMPOSE i5 series is the link between i7 and i3, created for discerning music lovers with a burning ambition for a true hi-fi experience. A fusion of phenomenal sound and unmatched practicality: developed with the vision of unique speaker highlights that are also true problem solvers. The impedances of all speakers are perfectly matched to our HELIX and MATCH amplifiers, guaranteeing maximum performance and power output at all times. In addition, we have implemented our COMPOSE-exclusive mechanical technologies, which offer unmatched practical benefits.

Audiophile full-range performance with flexible integration options
The Ci5 M50FM-S3 expands the COMPOSE platform with a sophisticated 50 mm full-range speaker that scores with its exceptionally compact design: Thanks to its significantly reduced outer diameter compared to typical 50 mm speakers and FlexMount technology, the Ci5 M50FM-S3 can be easily installed even in tight OEM installation spaces. This makes it particularly suitable for installation positions where space restrictions, unfavorable dispersion angles, or factory specifications make classic two- or three-way applications difficult.
Thanks to its exceptionally wide frequency range, it enables setups that do not require a separate tweeter. Its high level stability and clear, low-distortion high-frequency reproduction also make it the ideal solution for center applications, high-performance full-range systems, and DSP-based setups that require outstanding sound quality in a minimal space.

Smart design for maximum efficiency, dynamics, and detail resolution
The exceptional performance of the Ci5 M50FM-S3 is based on a number of precisely tuned design features. The specially shaped rubber surround and innovative magnet system enable an unusually large linear diaphragm excursion for this size, ensuring impressive level stability and extremely low distortion reproduction. This combination also forms the basis for an exceptionally smooth, wide-band frequency response for a 50 mm driver, without the typical peaks or dips found in many compact full-range speakers. At the same time, the particularly large diaphragm area with a significantly reduced outer diameter (compared to typical 50 mm speakers) maximizes performance and gives the full-range speaker remarkable dynamics. Another
key to its detailed high-frequency reproduction is the aluminum dust cap connected directly to the voice coil. Its lightweight and rigid construction improves impulse response up to the highest frequency ranges and gives the Ci5 M50FM-S3 its exceptional transparency and resolution. The silicate-coated paper diaphragm ensures high internal damping, a natural, precise sound character, and suppresses unwanted resonances. The overall technical concept is complemented by the powerful push-pull neodymium magnet system, which, thanks to efficient magnet guidance, both increases efficiency and reduces distortion to a minimum – the basis for clean, confident sound performance even at demanding levels.

Maximum efficiency
HELIX COMPOSE stands for smart engineering and is based on highly efficient 3-ohm technology, which harmonizes perfectly with all HELIX and MATCH amplifiers while delivering a noticeable increase in efficiency and maximum sound pressure.

High-tech polymer
composite basketThe Ci5 M50FM-S3's speaker basket is made from a high-tech polymer composite material, which has been additionally reinforced with glass beads. The result: maximum stability with minimal resonance, which also prevents flux modulation of the magnet system and provides maximum resistance to thermal influences. Finally, this enables significantly more compact basket dimensions and thus simplified installation in confined spaces.

FlexMount50 – universal meets vehicle-specific
FlexMount is a mounting system based on specially developed adapter rings that allows COMPOSE FlexMount speakers to be installed in an almost infinite number of vehicles. This transforms the universal speaker into a vehicle-specific speaker in no time at all, which can be easily installed in the original mounting position of any vehicle with the appropriate FlexMount ring for optimal acoustics.

Features

• 50 mm advanced full-range speaker with exceptional sound performance and versatile integration options
• High efficiency and 3-ohm technology for maximized amplifier power output
• Unique silicate-coated paper cone for maximum impulse fidelity and unmatched frequency response
• Maximized cone area and an aluminum dust cap directly connected to the voice coil enable a particularly wide linear frequency response of 300–20,000 Hz
• High-tech polymer composite basket reinforced with glass beads for maximum rigidity and minimal resonance
• Special rubber surround and optimized magnet system for large linear diaphragm excursion
• Innovative manufacturing of the rubber surround for a reduced installation diameter and maximized effective membrane area compared to typical 50 mm speakers
• Powerful push-pull neodymium magnet system for particularly high efficiency and minimal distortion
• Universal FlexMount50 mounting ring for vehicle-specific adaptation (e.g., Audi, Ford, Mercedes, etc.) or for universal installation included in delivery
• Universal mounting ring with grille included in delivery
• Technical data
• Power handling RMS / Max. P 70 / 100 watts
• Impedance Z 3 Ω
• DC resistance Re 3.1 Ω
• Frequency range 300 Hz - 20,000 Hz
• Resonance frequency Fs 240 Hz
• Mechanical quality factor Qms 3.09
• Electrical quality factor Qes 0.80
• Total quality factor Qts 0.68
• Compliance Cms 300 µm/N
• Equivalent volume Vas 0.16 L
• Power factor B*I 2.8 Tm
• Efficiency SPL 89 dB @ 2.83V / 1m   85 dB @ 1W / 1m
• Diaphragm area Sd 19.6 cm²
• Moving mass Mms 1.43 g
• Diaphragm material Silicate-coated paper diaphragm
• Mechanical resistance Rms 0.71 kg/s
• Voice coil diameter ø 20 mm
• Voice coil winding width 7 mm
• Max. linear diaphragm excursion Xlin +/- 2.5 mm
• Max. mechanical diaphragm excursion Xmax +/- 3.5 mm
• Outer diameter ø 59.5 mm
• Outer diameter with universal mounting ring ø 70.0 mm
• Mounting diameter ø 50.9 mm
• Installation depth 25.2 mm
• Features Powerful push-pull neodymium magnet system,
• FlexMount50

Compatibility

• FlexMount50

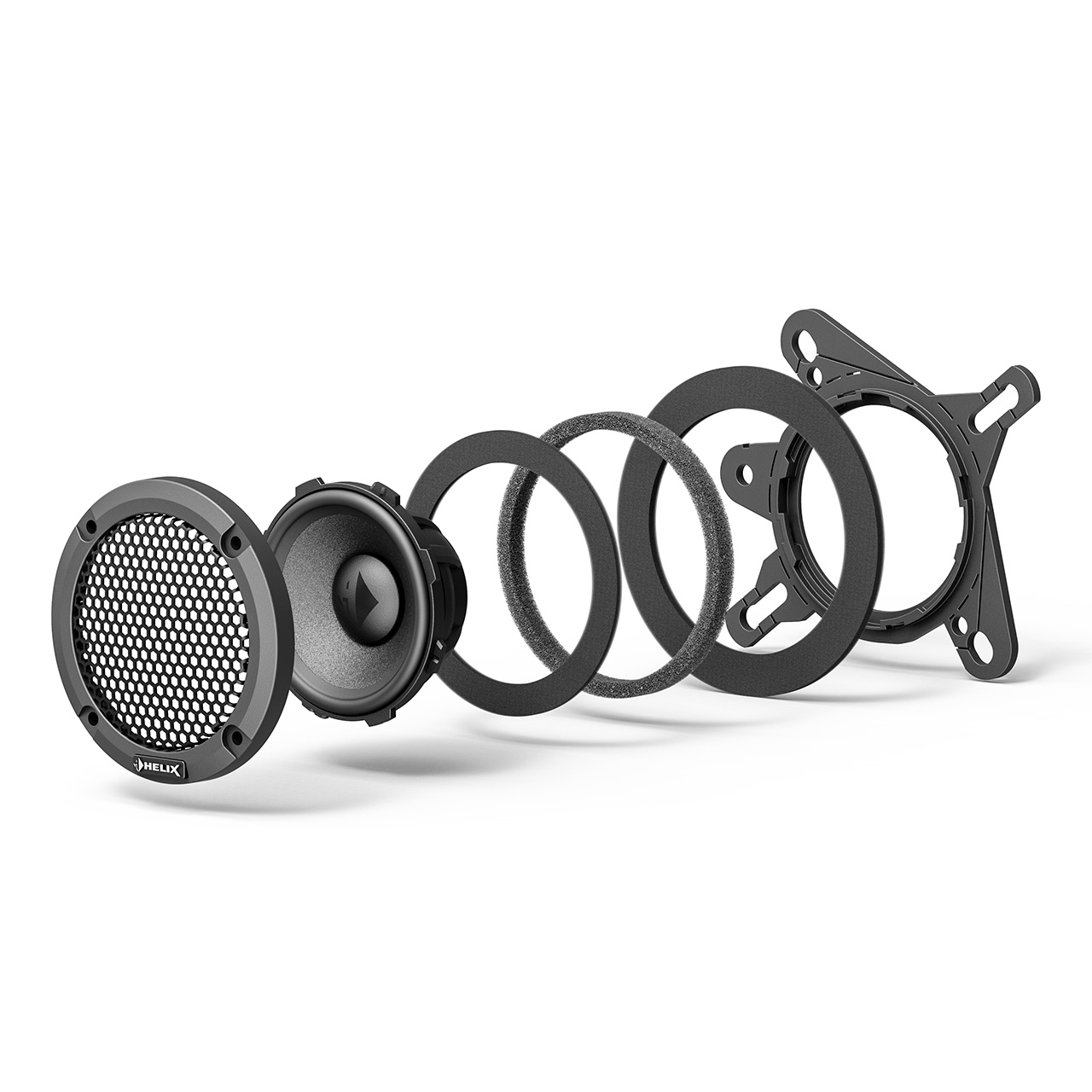

Scope of delivery

• 2 x Ci5 M50FM-S3
• 2 x Universal FlexMount CFM50 MULTI.1
• 2 x Speaker seal
• 2 x Mounting ring with grille
• 1 x Mounting hardware
