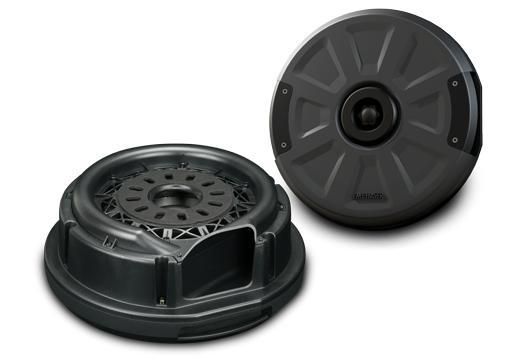

Emphaser EBS108A - 20cm Subwoofer

Active subwoofer for the spare wheel
EMPHASER's innovative subwoofer design brings an unimaginable amount of pressure and sound from the smallest of spaces.

The EBS108A has a fat beat - thanks to the bass reflex principle, the 20 cm high-performance sub pushes impressive bass waves.

Product features for EBS108A

• Bass reflex active subwoofer
• Suitable for use in a spare wheel
• 8 ”/ 20 cm long throw bass driver
• Integrated Class-A / B amplifier module with 150 W RMS output power
• Adjustable input level for cinch and high level speaker signals
• Integrated crossover with variable low pass from 50 - 150 Hz
• Subsonic filter at 20 Hz
• Adjustable bass boost with 0 - 12dB at 45 Hz adjustment range
• Auto turn-on function
• Phase of the bass signal that can be switched between 0 ° and 180 °
• External remote control
• Connector block for power connections

Technical specifications

• Active subwoofer for the spare wheel
• Frequency response: 30 Hz - 180 Hz
• 150 W rms x 1 at 2 ohms
• 300 W max. x 1 at 2 ohms
• Integrated Class-A / B MOS-FET amplifier
• Variable low-pass filter: 50 Hz - 150Hz with 12 dB / oct.
• Subsonic filter at 20 Hz with 12 dB / oct.
• Variable bass boost: 0 dB - 12 dB at 45 Hz
• Switchable phase 0 ° / 180 °
• Input sensitivity Cinch variable: 0.4 V
• Input sensitivity high-level variable: 1.0 V
• External remote control
• Signal-to-noise ratio:> 90 dB
• Dimensions D x H: 360 x 145 mm
