- Order number: 02032ATW20
- EAN 7612309103493
Small subwoofers are big in fashion. With the ATW16 and ATW20 models, AXTON has two universally applicable subwoofer chassis, which can be installed in a bass reflex subwoofer housing or used as woofers in a 3-way system.

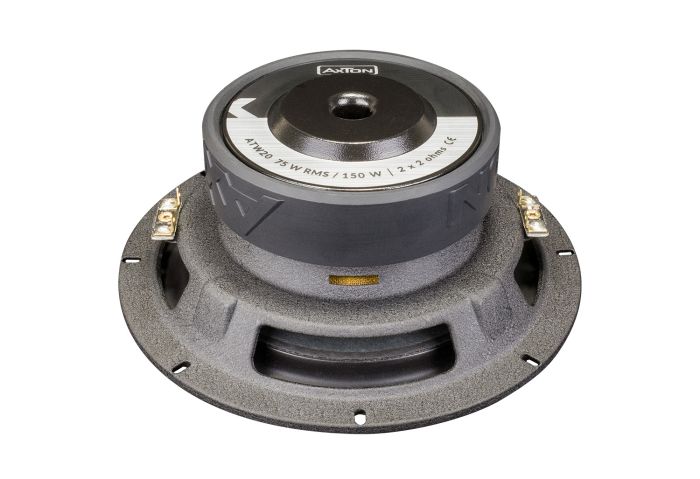

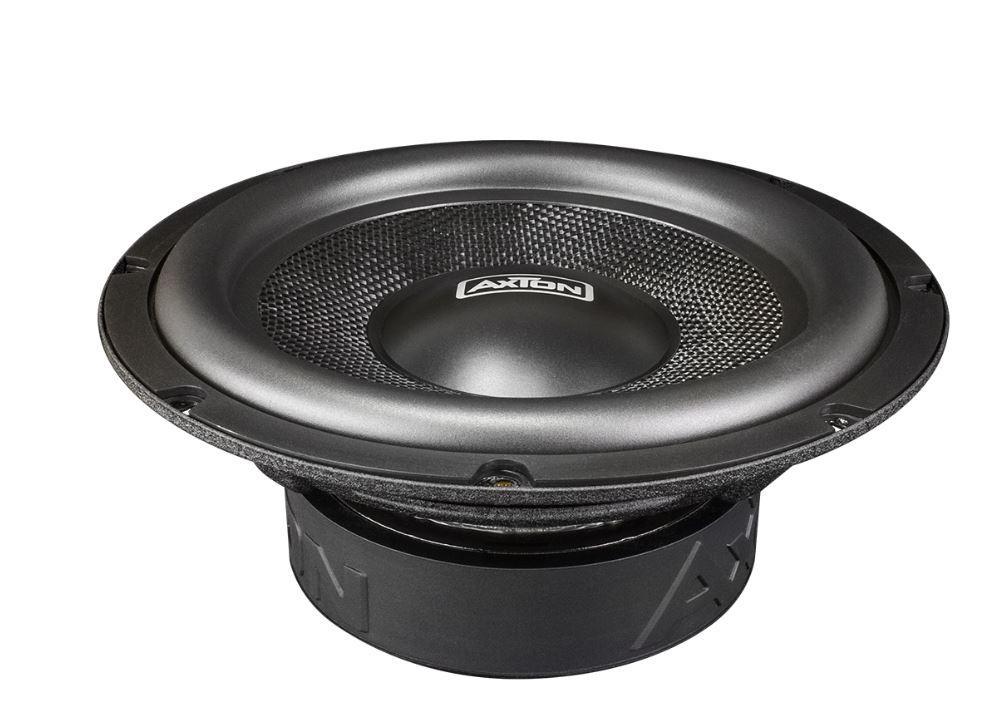

The stiff fiberglass / foam / paper sandwich cone in conjunction with the powerful 120 mm magnetic drive provides a powerful sound and low-frequency reproduction. The back vented steel basket and pole plate with center hole increase the cooling capacity for the 1.5“ voice coil, resulting in a nominal power handling of 75 W RMS. The 2 x 2 ohms voice coil also makes various useful connection variants possible.
Other features include the use of durable Connex spiders, rubber surrounds, and corrosion resistant, gold plated terminals.
Key Features
- 8” back vented steel basket
- High strength high strength fiberglass/foam/paper cone
- 120 mm high-efficient Ferrite magnet, rubber magnet boot with AXTON logo
- Long-throw Connex spider
- Long-lasting rubber surround
- Polyimide voice-coil former
- 1.5” copper wire double voice coil
- Hyper-extended center pole
- Woven tinsel wires
- Black coated pole plate
- Bumped back plate
- Gold plated terminals
- Low installation depth 80 mm
Technical Data
ATW20
- Subwoofer: 8"
- Frequency response: 55 - 300 Hz
- Sensitivity (1 W/1 m): 86.7 dB
- Nominal power handling: 75 W RMS
- Peak power handling: 150 W
- Nominal impedance: 2 x 2 ohms
- Mounting diameter: 184 mm
- Mounting depth: 80 mm
| quantity: | 1 piece |
| Diameter (in cm): | 20,0 |
| Impedance (in Ohm): | 2 x 2,0 |
| Peak Power (in Watt): | 150 |
| Power RMS (in Watt): | 75 |
| Product group: | Spare Wheel Hollow |
| Subwoofer Features: | double membrane, Wooferchassis |
