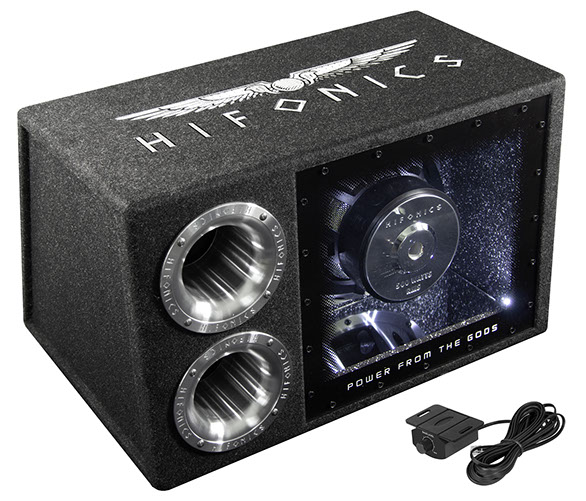

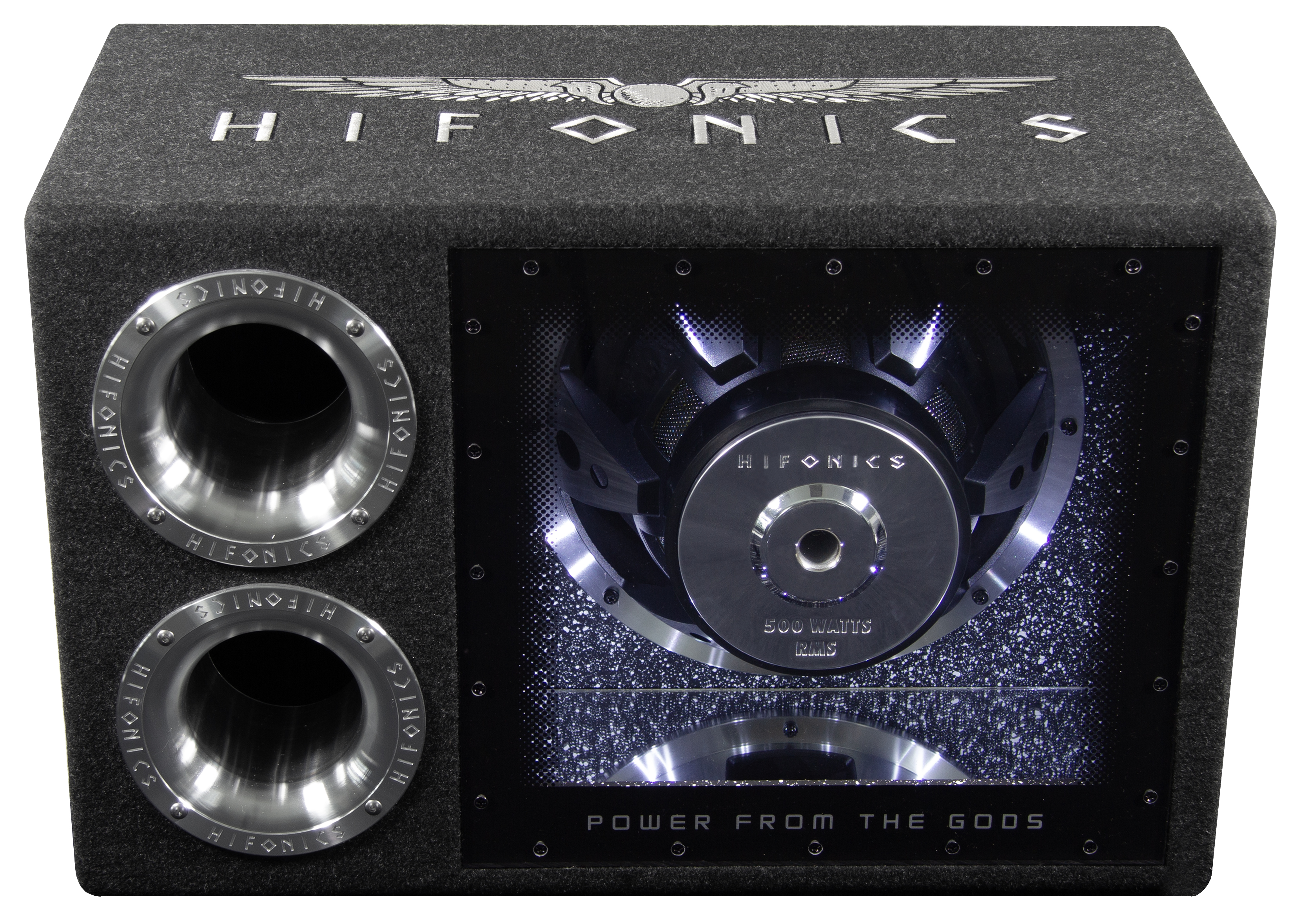

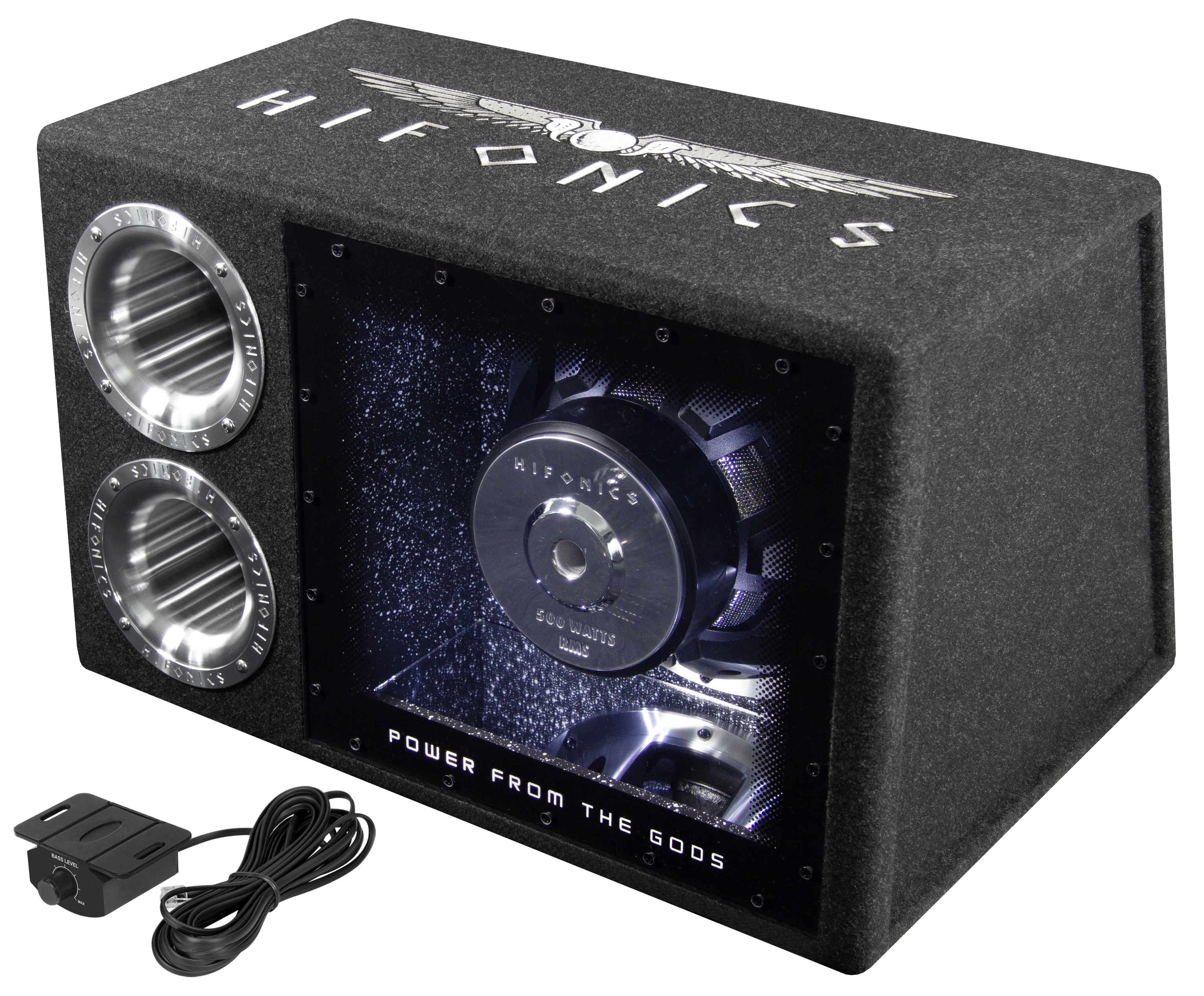

Hifonics ATL12BPA - 30cm Subbox active

ATL12BPA

With a bandpass subwoofer from HiFonics, every bass lover hits the mark. Earthquake-like bass attacks, such as those delivered by Atlas subs equipped with double magnets and aluminum baskets, are legendary with HiFonics. HiFonics bandpasses!

The proven Atlas bandpass box is now also available as an active version, the ATL12BPA. The necessary power is provided by an integrated 460-watt RMS Class D high-power active module. This modern and efficient version is not only impressive on paper: in a test conducted by the trade magazine Car&Hifi  03/2024, the box was thoroughly convincing and was awarded a grade of 1.1 in the absolute top class . It was even named BEST PRODUCT in the active subwoofer category.

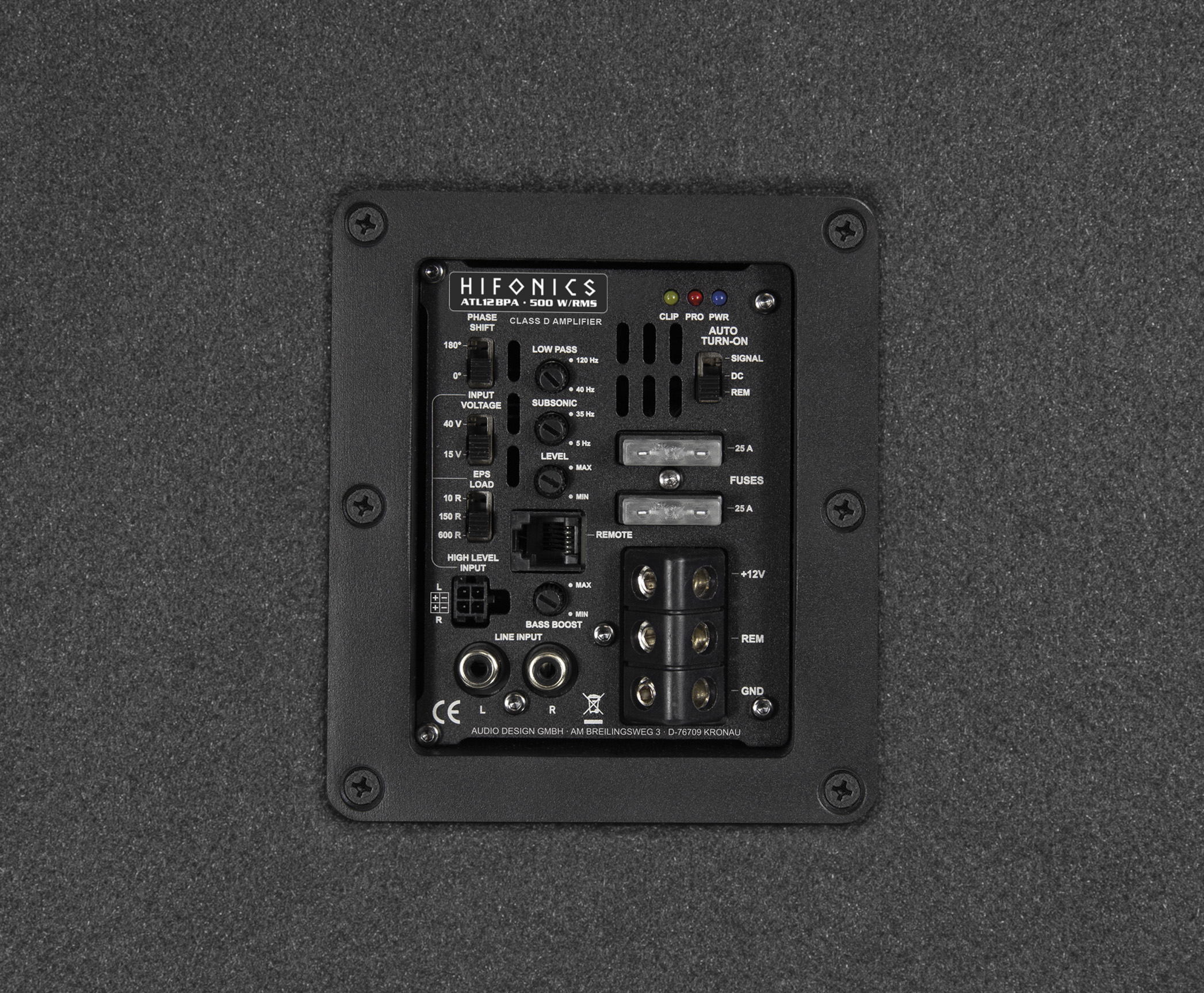

HiFonics uses an integrated 460-watt RMS Class-D amplifier, which is not only particularly powerful but also very efficient with 84% efficiency. This saves battery power. But it's not just the performance that's top-notch; the extensive range of features is also impressive. Thanks to EPS PRO, the speaker can be easily connected to modern  factory radios via the integrated high-level inputs. Bass boost, subsonic filter, phase switch, RCA inputs, and auto turn-on are also included. The amp even has a bass level remote control.

Technical data

• 30 cm (12") active bandpass
• 460 W/RMS, 920 W/MAX
• Mirrored inner chamber
• LED interior lighting (white)
• Low-pass filter 40-120 Hz with 12 dB slope
• Phase switch 0°/180°
• Bass boost 0-6 dB @ 45 Hz
• RCA low-level input
• High-level input
• Automatic power-on function (DC or signal)
• Start-stop capable, 5 sec./up to 7 volts
• EPS PRO with 10R / 150R / 600R (switchable)
• Input sensitivity 15 or 40 volts (switchable)
• 3-stage limiter function, clipping LED
• Dimensions: 60 x 38 x 44/31 cm
