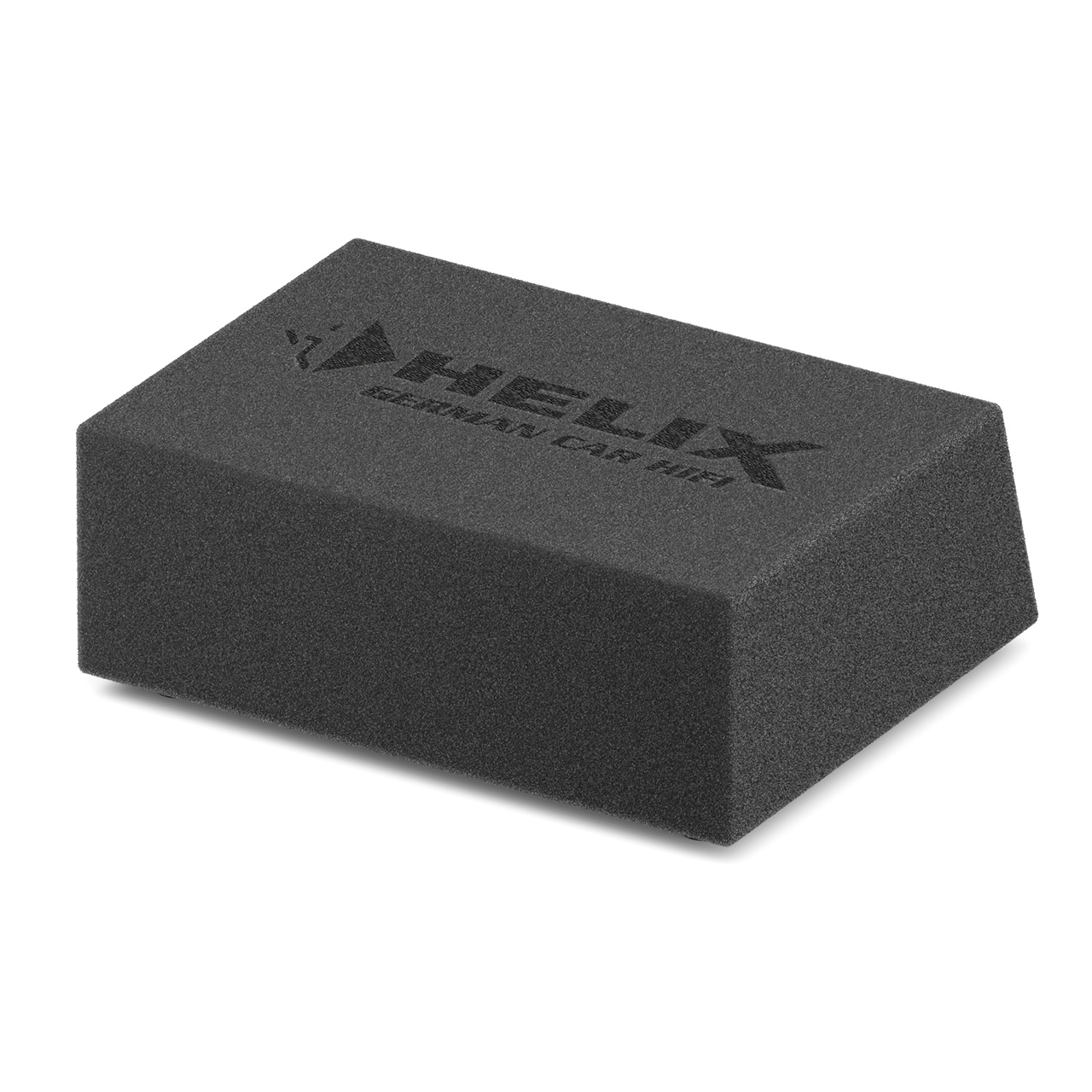

HELIX IK E10.1
Powerful bass, compact size – the performance subwoofer for everyday use
The HELIX IK E10.1 impresses with rich bass performance in a space-saving format. Developed for those seeking deep, powerful sound without a bulky enclosure.
Clever Downfire Design
The clever downfire design ensures even bass distribution throughout the entire interior. The vehicle floor acts as an acoustic reflector, intensifying the bass effect, protecting the speaker, and enabling a flatter design. The combination of bass reflex technology and the powerful 250 mm chassis creates a powerful bass experience with impressive dynamics – all while utilizing space efficiently.
Powerful sound thanks to high-quality components
The 250 mm IK W10 chassis is used in the IK E10.1 cabinet. With its extremely hard membrane made of hand-made paper fibers, combined with the heavy-duty drive system, it not only effortlessly converts the amplifier's power into powerful sound pressure without compression effects, but also excels in terms of sound quality even with subtle beats.
Flexible Connection
With its 1 x 2 ohm (SVC2) or 2 x 2 ohm (DVC2) design, there's a suitable subwoofer for every amplifier configuration to maximize performance.
Robust, well-designed, and secure installation
The enclosure, covered in durable needle felt and featuring the embroidered HELIX logo, not only looks high-quality but is also robust enough for everyday use. The Velcro-fastened feet ensure a secure hold in the vehicle. The plug-in screw terminal makes installation much easier and allows for quick removal of the subwoofer, for example, when more space is required. The removable plug reliably protects against short circuits, as no exposed cable ends remain in the vehicle.
Features
- Downfire cabinet technology for ideal bass distribution in the vehicle and perfect speaker protection
- Compact bass reflex cabinet for maximum sound pressure and space-saving installation in the vehicle
- Powerful 250 mm chassis with handmade paper cone for rich, deep bass
- Voice coil configuration selectable via connection terminal – 2 x 2 ohms, 1 x 4 ohms, or 1 x 1 ohm
- Plug-in screw terminal allows quick and secure installation and removal
- Stands with Velcro fasteners for secure positioning in the vehicle
- Durable needle felt coating with embroidered HELIX logo
Technical data
- IK E10.1-DVC2 – 2 x 2 ohms
- Load capacity RMS P 300 watts
- Recommended amplifier power RMS 150 - 300 watts
- Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
- Max. Linear diaphragm excursion Xmax +/- 8.0 mm
- Tunnel tuning frequency Fb 43 Hz
- Efficiency SPL
- 91 dB @ 2.83 V / 1 m
- 88 dB @ 1 W / 1 m
- Dimensions (H x W x D) 187 x 470 x 375 mm
- Built-in subwoofer chassis: HELIX IK W10-DVC2
- Recommended DSP settings: "Self-Define" high-pass filter: 37 Hz / Q = 1.5;
- EQ filter: 115 Hz / Q = 0.7 / -2 dB
Scope of delivery
- 1 x Downfire IK E10.1-DVC2 Enclosure Subwoofer
- 1 x Data Sheet
| quantity: | 1 piece |
| Diameter (in cm): | 25,0 |
| Impedance (in Ohm): | 2 x 2,0 |
| Power RMS (in Watt): | 300 |
| Product group: | Spare Wheel Hollow |
| Subwoofer Features: | Subwooferbox |
