Helix IK EB6.1 DVC2 - 16cm cabinet subwoofer

HELIX IK EB6.1 DVC2

The IK EB6.1 demonstrates that impressive bass can be achieved even in the smallest of spaces. Thanks to its clever, ultra-compact design, this subwoofer is ideal as a problem-solver for particularly space-saving installations, while its form factor makes it ideal for installation in unused battery compartments in vehicle interiors.

Compact yet powerful

Despite its compact dimensions, the IK EB6.1 delivers impressive bass performance that can easily compete with significantly larger subwoofers. The integrated, powerful 160 mm long-throw woofer with an extremely rigid, hand-made paper cone enables rich, dynamic bass at impressive levels.

Efficient Bass Reflex Design

The specially developed bass reflex enclosure ensures maximum low-frequency performance and powerful bass reproduction that completely fills the vehicle interior.

Flexible Connection

With the 1 x 2 ohm (SVC2) or 2 x 2 ohm (DVC2) design, there's a suitable low-frequency specialist for every amplifier configuration to maximize performance.

Easy Installation, Robust Quality

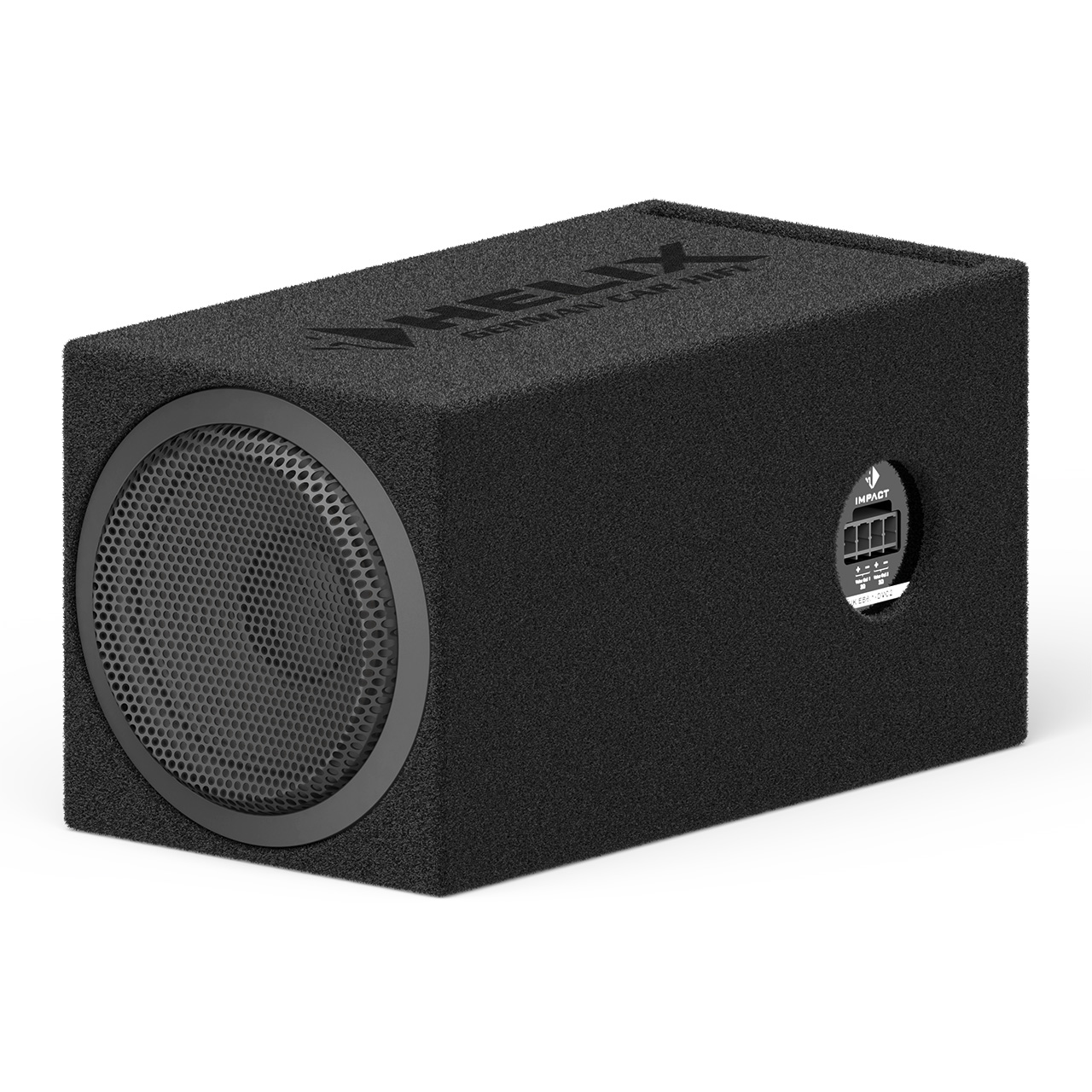

Thanks to the pluggable screw terminal, the subwoofer can be installed and removed quickly and safely. The durable needle felt coating, including the embroidered HELIX logo, gives it a high-quality appearance, while the sturdy metal grille reliably protects the cone and guarantees a long service life.

Features

• Exceptional sound pressure and impressive audio performance comparable to larger subwoofers

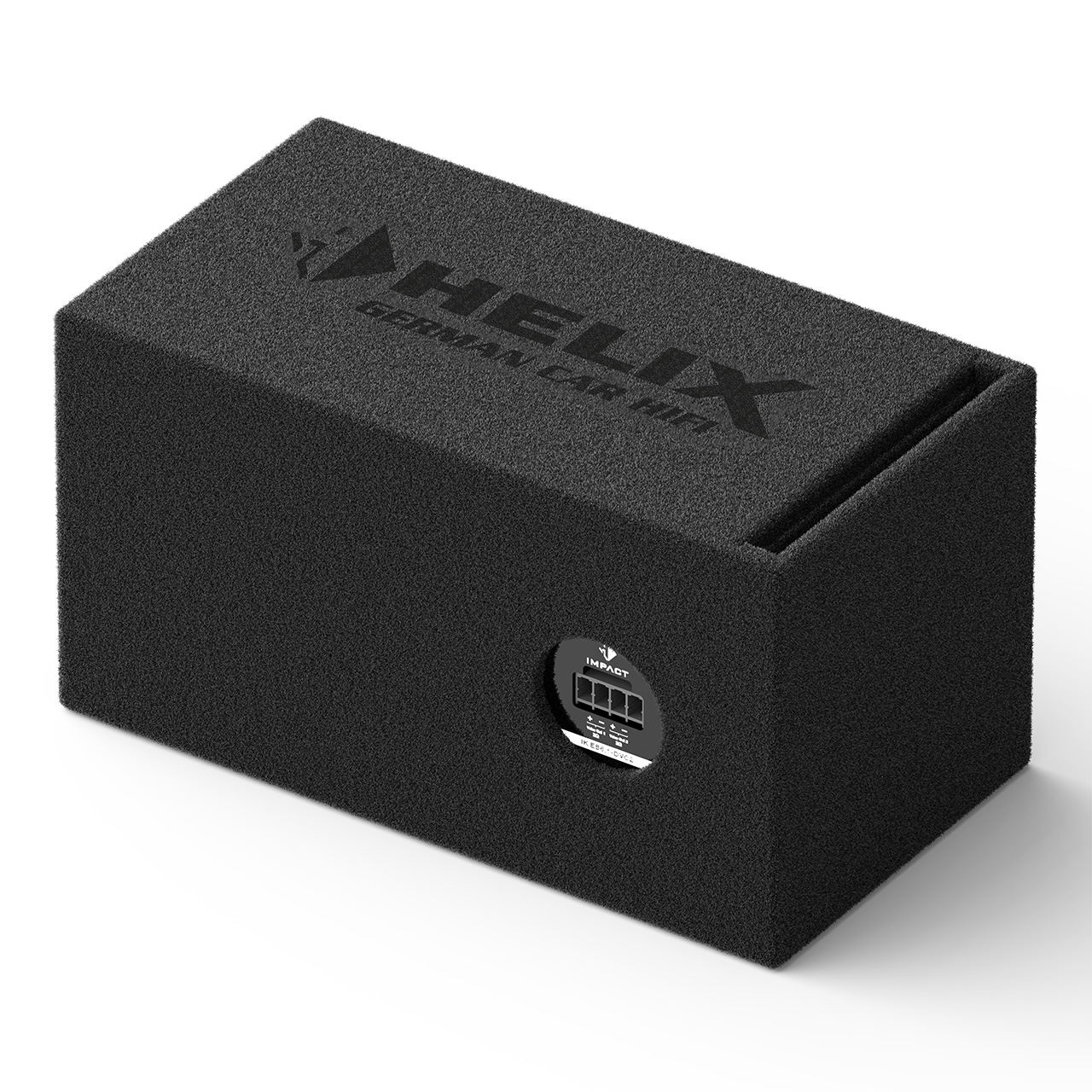

• Ultra-compact subwoofer in car battery format – allows installation in unused battery compartments in the vehicle interior
• Bass reflex cabinet technology for maximum sound pressure
• Powerful 6"/160 mm long-throw woofer with extremely torsion-resistant, handmade paper cone and dual voice coil for deep and rich bass
• Voice coil configuration selectable via connection terminal – 2 x 2 ohms, 1 x 4 ohms, or 1 x 1 ohms Ohm

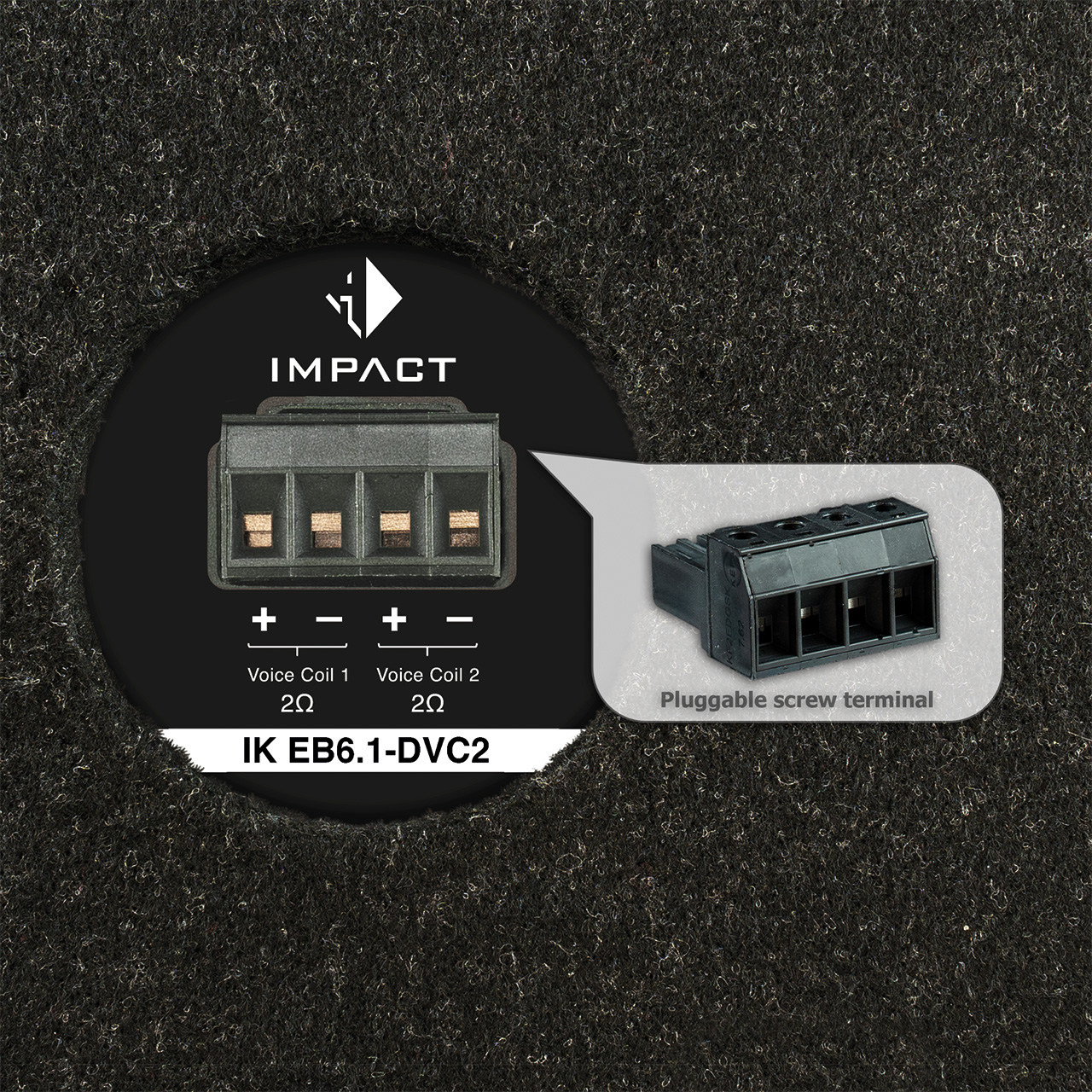

• Plug-in screw terminal allows quick and secure installation and removal
• Durable needle felt coating with embroidered HELIX logo
• Solid metal grille for optimal protection of the woofer

Technical Specifications

• IK EB6.1-DVC2 – 2 x 2 Ohm
• Power handling RMS P 150 watts
• Recommended amplifier power RMS 75 - 150 watts
• Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
• Max. linear diaphragm excursion Xmax +/- 6.0 mm
• Tunnel tuning frequency Fb 48 Hz
• Efficiency SPL 89 dB @ 2.83V / 1m
• 86 dB @ 1W / 1m
• Dimensions (H x W x D) 175 x 175 x 340 mm
• Built-in subwoofer chassis HELIX IK W6-DVC2
• Recommended DSP settings "Self-Define" high pass filter 40 Hz / Q = 1.0;
• EQ filter: 55 Hz / Q = 2.0 / -2 dB

Scope of delivery

• 1 x bass reflex housing subwoofer HELIX IK EB6.1-DVC2
