VX1000/1i Monoblock Class D Subwoofer Amplifier with Integrated DSP, 1000 W x 1 at 2 Ohms /... more
Product information "JL Audio VX1000/1i - 1-Kanal DSP Verstärker digital"

VX1000/1i
Monoblock Class D Subwoofer Amplifier with Integrated DSP, 1000 W x 1 at 2 Ohms / 600 W x 1 at 4 Ohms - 14.4V

  • Designed to simplify great audio, every VXi amplifier combines our advanced NexD2 switching amplifier technology with an integrated, full-featured digital signal processor.
  • The VX1000/1i monoblock subwoofer amplifier outputs up to 600 watts into 4 ohms, or a jaw-dropping 1000 watts into 2 ohms. A specialized, low-frequency version of our NexD2 amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.
  • Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN Software application installed.

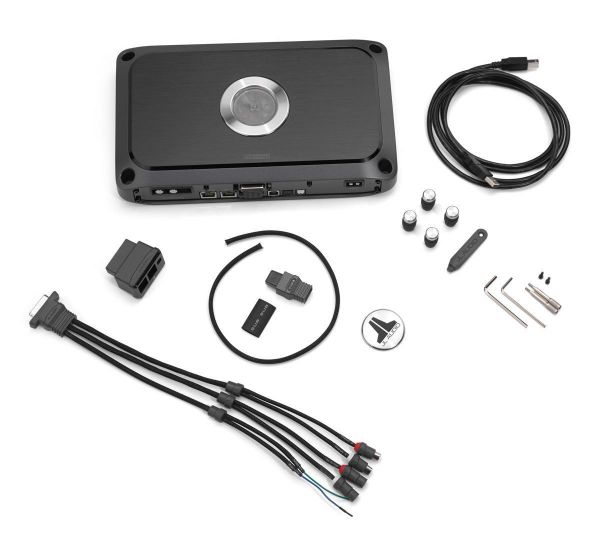

  • Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Features

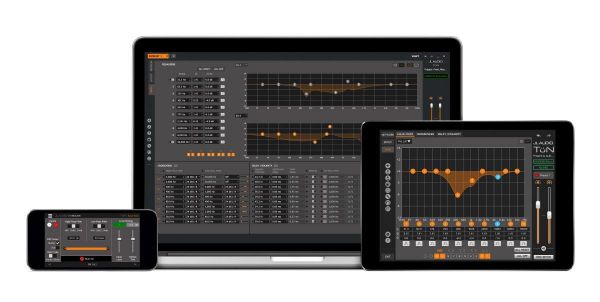

TüN Software Applications

Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN is available for download for free in a variety of applications, for computers and most handheld devices.

Unprecedented, Onboard DSP Tuning Power

  • Premium, triple-core AKM DSP with an optimized configuration, developed in collaboration with AKM
  • Hi-Res audio processing at 24 bit/96 kHz
  • High-performance AKM A/D and D/A converters
  • 10 Bands of fully parametric EQ, per output channel, including pre-outs
  • Shelving EQ option for Band 1 and Band 10
  • High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes:
  • Linkwitz-Riley: 12, 24, 48 dB/octave
  • Butterworth: 6, 12, 18, 24, 36, 48 dB/octave
  • Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm)
  • All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
  • Polarity Reversal (0 or 180 deg.)
  • Output Level Trim in 0.1 dB steps

NexD2 Switching Amplifier Technology

  • Our latest generation of high-speed switching technology delivers superb low frequency power and efficiency.
  • Specially optimized for subwoofer applications

Ultra-Versatile Analog and Digital Inputs

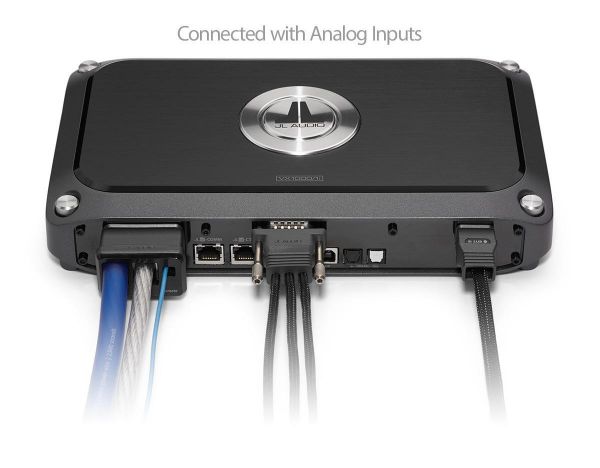

  • High-performance, differential-balanced analog inputs for outstanding noise rejection
  • Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems

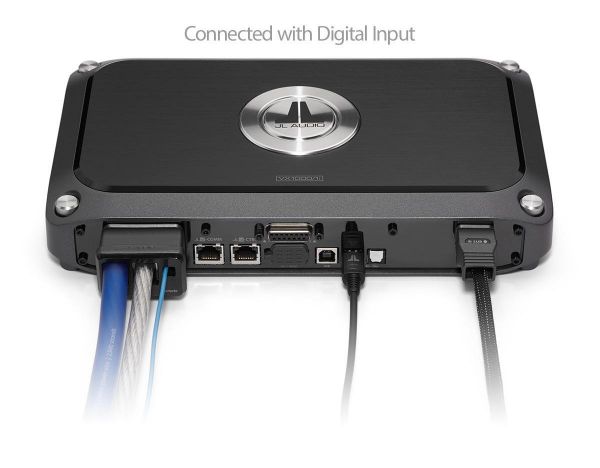

  • Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
  • Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz)
  • Automatic turn-on options via Signal-Sensing or DC-Offset sensing

Functional Compact Chassis Design

  • Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding

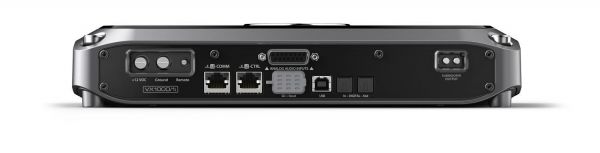

  • All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces.
  • Configurable LED logo ring displays status and can display audio preset color code or user-defined color
  • Logo badge can be oriented in 90 degree increments
  • Corner caps engineered to conceal mounting holes and hardware

JLid System Command and Control with Networking Capabilities

JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLid accessories, including:

  • DRC-100/DRC-200/DRC-205 (coming soon) Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat.
  • VXi-BTC Bluetooth Communicator (coming soon): Permits wireless configuration of VXi amplifiers using your compatible Apple or Android device.
  • VXi-HUB Optical Network Hub (coming soon): Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers.

Rated Continuous (RMS) Power at 14.4 V

  • at 4 ohms: 600 W RMS x 1
  • at 3 ohms: 800 W RMS x 1
  • at 2 ohms: 1000 W RMS x 1
  • at 1.5 ohms: N/A

Rated Continuous (RMS) Power at 12.5 V

  • at 4 ohms: 500 W RMS x 1
  • at 3 ohms: 650 W RMS x 1
  • at 2 ohms: 800 W RMS x 1
  • at 1.5 ohms: N/A

Specifications

  • Frequency Response: 12 Hz - 500 Hz (+0, -1dB)
  • S/N Ratio, referred to highest rated power (Analog Inputs): 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Analog Inputs): 60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to highest rated power (Digital Inputs): 87 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Digital Inputs): 56 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor at 4 ohms: >400 / 50 Hz
  • Damping Factor at 2 ohms: >300 / 50 Hz
  • THD+N at Rated Power: <1% at 2 ohms per Ch.
  • Input Voltage Range at RCA Inputs: 200 mV - 16 V RMS
  • Min.Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 80 A (AFS, AGU or MaxiFuse)

Dimensions

  • Height (H): 2.12 in / 54 mm
  • Width (W): 11.32 in / 287 mm
  • Depth (D): 6.62 in / 168 mm
  • Net Weight: 6.55 lb / 2.95 kg
quantity: 1 piece
Cinch Output: 1 pair
Cinch Input: 1 pair
Housing color: black, Silver
High Level Inputs: 1 Paar
Impedance (in Ohm): 2,0
Channels: 4
Speaker Outputs: 1
Peak Power (in Watt): 2000
Power RMS (in Watt): 1000
Product group: Amplifier
Amplifier Features: bass remote (optional), digital, integrated DSP
