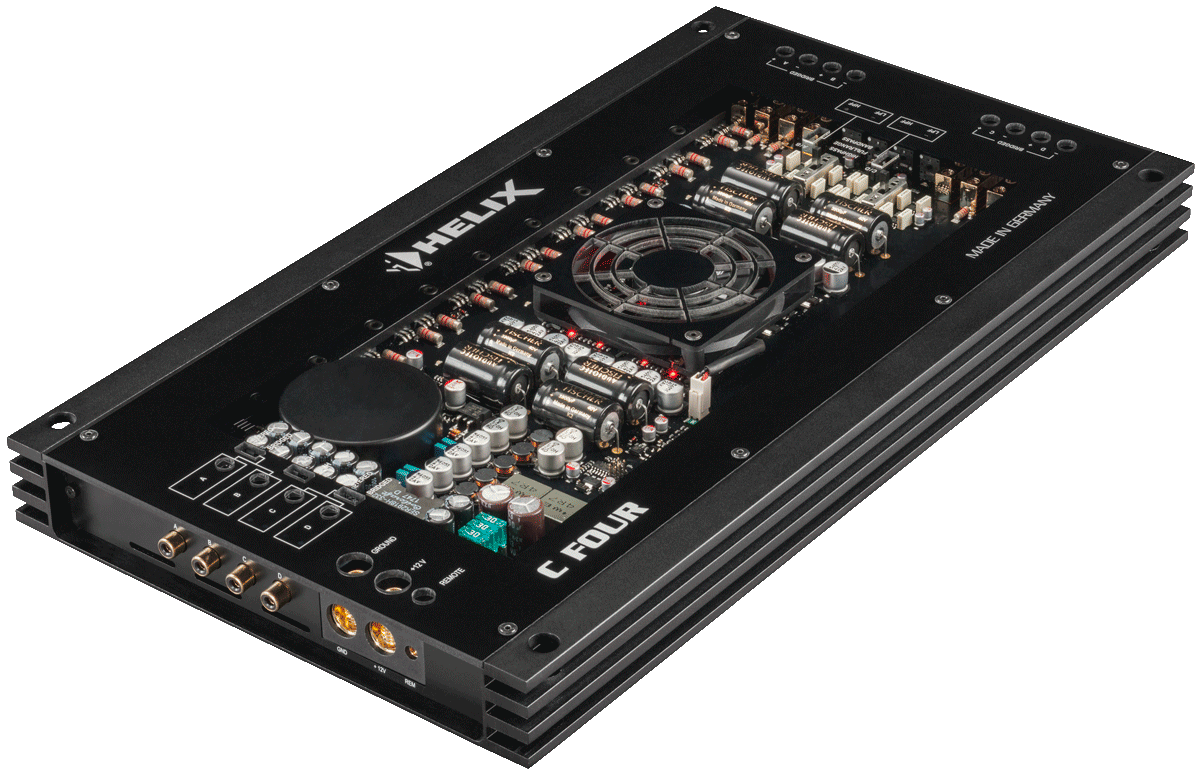

Helix C FOUR - 4-Kanal Verstärker

• Extremely broadband Class AB amplifier with eight selected MOSFET transistors per channel for exceptional sound quality - ideal for High-Resolution audio
• Ultra low-noise and distortion-free power amp drivers in Class A technology
• Enormous damping factor of 1,000 @ 4 Ohms for perfect speaker control
• Optionally available HELIX Digital Input Module (HDM) to extend the amplifier with two optical digital inputs in SPDIF format
• Integrated, active crossover with highpass, lowpass and bandpass
• Regulated DC / DC switching power supply with Start-Stop capability down to 6V supply voltage
• Microprocessor-based monitoring of amplifier status including temperature-dependent fan control
• Input Mode switch for flexible routing of the input signals
• Cutting-edge BurrBrown D/A converters with 32 Bit resolution in combination with the optional HDM 2 module
• Massive 24-carat gold-plated power and speaker terminals
• Quad-layer PCB with extra-solid 70μ copper traces for lowest possible losses and SMD (Surface Mounted Device) manufacturing technology

Special features:

Start-Stop capability
The switched power supply of the HELIX C FOUR assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.

High-Resolution audio
The extremely broadband audio bandwidth of the amplifier ensures a lossless audio reproduction of High-Resolution audio content to provide the best possible sound in studio quality.

Specifications

• Output power RMS / max.
• - @ 4 Ohms 4 x 150 / 300 Watts
• - @ 2 Ohms 4 x 220 / 440 Watts
• - @ 1 Ohm -
• - bridged @ 4 Ohms 2 x 440 / 880 Watts
• - bridged @ 2 Ohms -
• Amplifier technology Class AB

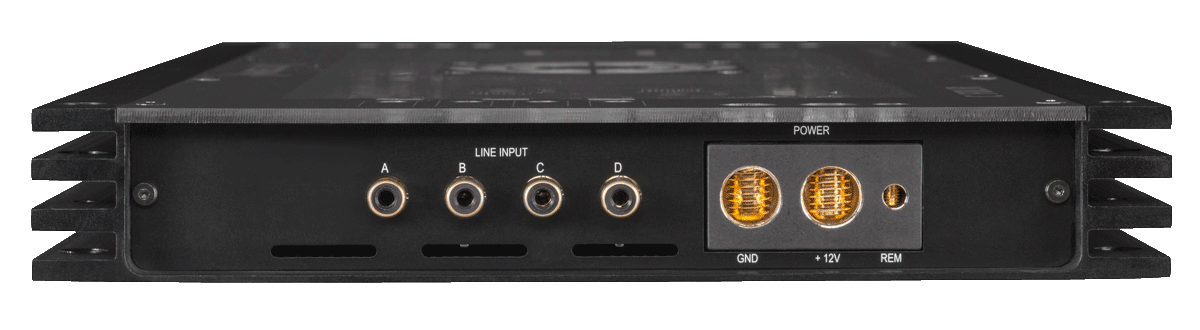

• Inputs
• 4 x RCA / Cinch
• 1 x Remote In
• Optional via HDM 2 module:
• 2 x Optical SPDIF (28 - 96 kHz)
• Input sensitivity RCA / Cinch 1 - 8 Volts
• Input impedance RCA / Cinch 7.5 kOhms
• Input impedance highlevel -
• Outputs 4 x Speaker output
• Output voltage RCA / Cinch -
• Signal converter for digital input -
• Frequency response 10 Hz - 80,000 Hz
• Bass boost -
• Highpass 15 Hz - 4,000 Hz adjustable
• Lowpass 15 Hz - 4,000 Hz adjustable
• Bandpass 15 Hz - 4,000 Hz adjustable
• Subsonic -
• Phase -
• Slope high- / lowpass 12 dB/Oct.
• Slope subsonic / lowpass -
• Signal-to-noise ratio digital input -
• Signal-to-noise ratio analog input 112 dB (A-weighted)
• Distortion (THD) < 0.007 %
• Damping factor > 1000
• Operating voltage 9 - 16 Volts (max. 5 sec. down to 6 Volts)
• Idle current 2400 mA
• Fuse 3 x 30 A LP-Mini-fuse (APS)
• Additional features Active, adjustable crossover, HDM slot, input mode switch, High-Resolution audio, Start-Stop capability
• Dimensions (H x W x D)
• 37.1 x 430 x 240 mm /
• 1.46 x 16.93 x 9.45"

Delivery contents

• 1 x High-end amplifier HELIX C FOUR
• 2 x Allen key
• 1 x Mounting material
• 1 x Instruction manual
