ESX SIGNUM SXE2800.1D - 1-Channel Amplifier digital

SIGNUM SXE AMPLIFIER

The new SIGNUM SXE series is optically based on the successful HORIZON HXE series, but already shows with the massive connection terminals and the noble aluminum end panels that it plays a class higher. The new amplifiers are also the first choice in terms of sound: The high-quality NE5532 operational amplifiers in the input area ensure the finest resolutions over the entire frequency range and guarantee the lowest distortion values. The high-level inputs with automatic switch-on function were also upgraded; They are equipped with the "Error Protection System" (EPS), so that when connected to OEM factory radios, no functions are impaired or error messages are written to the vehicle memory. All models are equipped with bandpass filters, the 1 ohm stable, high-performance Class D monoblocks also offer a phase controller and the master / slave option for linking two identical amps, including a very small, easily installed cable remote control for the bass level. Further models of the series are planned.

• Aluminum heat sink with acrylic glass inlays and flush-cut diamond cut logo
• Aluminum frame on the end panels
• Massive connection terminals
• Base plate with robust mounting brackets
• High level inputs with Error Protection System
• Auto turn-on via high level inputs
• MOSFET-PWM power supply, 3-way protection circuit
• Master / slave link mode

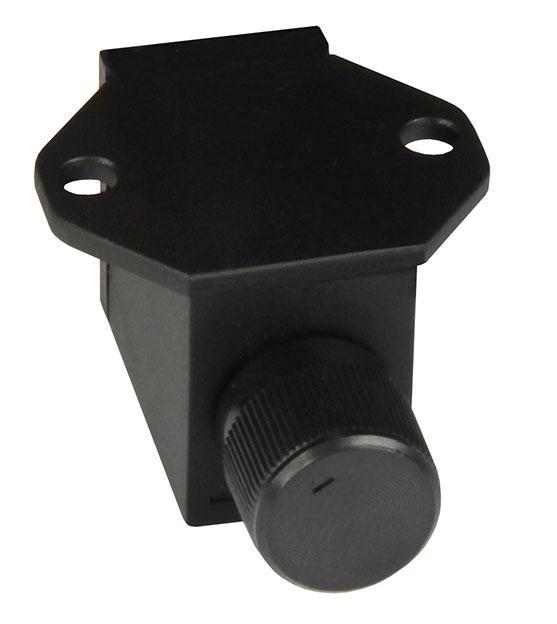

• Compact bass cable remote control

SXE2800.1D - Mono Class D digital amplifier 2800 watts max. Output power

• 1 x 1300/2000/2000 watts max. at 4/2/1 ohms
• 1 x 650/1000/1400 watts RMS at 4/2/1 ohms
• LPF 40-150 Hz, Subsonic 10-35 Hz
• Bass boost 0-12 dB, phase shift 0-180 °
• High level inputs, automatic switch-on function
• Master / slave mode, cable remote control for bass level
• Dimensions: 220 x 53 x 370 mm
• Efficiency up to 84%
