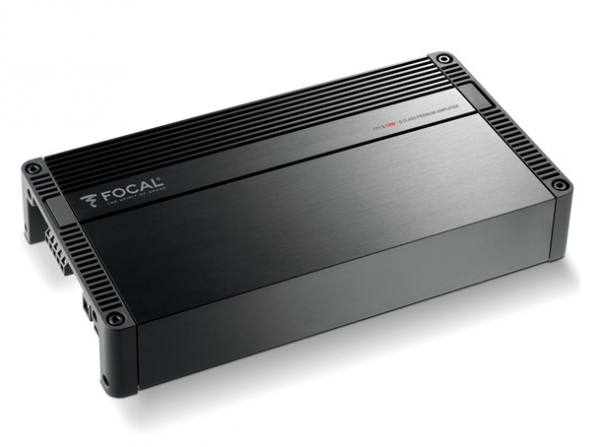

Focal FPX5.1200 - 5-Kanal Verstärker digital

5 CHANNEL Class-D AMPLIFIER  4 X 120 WATTS

5-channel FPX 5.1200 amplifier has a maximum power of 4 x 120 Watt + 1 x 720 Watt at 2 Ohms!

The input selector (2/4/6 channels) duplicates channels, meaning there will always be 5 output channels, even if the head unit only has one or two stereo outputs.

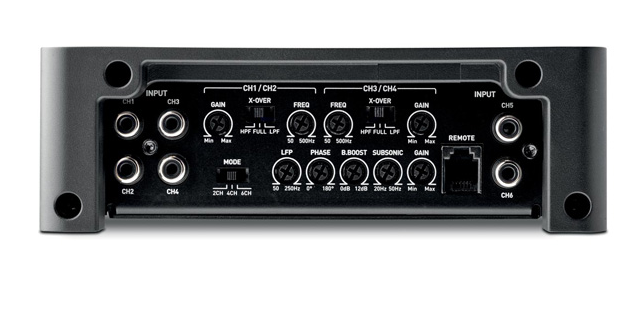

To perfectly tune the subwoofer to the rest of the installation, the bass channel has a low-pass active crossover, a bass equaliser, phase adjustment and a subsonic filter (particularly useful for cutting off frequencies which are too low for a small subwoofer). The remote control enables you to adjust the bass level from the driving seat depending on the type of music you’re listening to.

Stable at 4 and 2 Ohms, this new FPX amplifier will drive most speaker drivers on the market with just the right amount of power: 4 x 75 Watts + 1 x 420 Watts RMS at 4 Ohms (CEA standard). With its power and contained volume, FPX 5.1200 makes the installation easier in order to make the most of your boot space

.5-Channel Class-D Amplifier

• Power specifications (THD < 0.01% / 14.4V):
• 75 W RMS x 4 at 4 Ohm + 420 W x 1 at 4 Ohm
• 120 W RMS x 4 at 2 Ohm + 720 W x 1 at 2 Ohm
• 240 W RMS x 2 at 4 Ohm bridged + subwoofer channel
• Frequency reproduction range: 10 Hz - 20 kHz
• High-pass filter: 50 - 500 Hz (12 dB/oct.)
• Low-pass filter: 50 - 500 Hz (12 dB/oct.)
• subsonic filter: 10 - 50 Hz (24 dB/oct.)
• bass boost: 0 - 12 dB
• Phase control: 0 - 180 degrees
• Basspegel remote control
• Protection circuits:
• Short circuit
• Low impedance
• DC voltage
• Overheating
• Polarity reversal
• Dimensions (LxWxH): 337 x 175 x 57 mm
