Morel MPS 2.150 LIMITED - 2-Channel Amplifier

MPS 2.150 LIMITED - 2-channel amplifier

The Morel MPS 2.150 LIMITED 2-channel amplifier of the MPS LIMITED amplifier series was designed to the highest standards to celebrate Morel's 45th anniversary. The Class AB stereo amplifier uses audiophile-grade components including Ti (Burr Brown) OPA2134 operational amplifiers, ultra-low ESR Rubicon and WIMA capacitors, gold-plated connectors, and body-mounted RCA connectors. Balanced line inputs with noise reduction can accept signals up to 20 volts. Removable side plates allow for unique mounting options and stacking of amps.

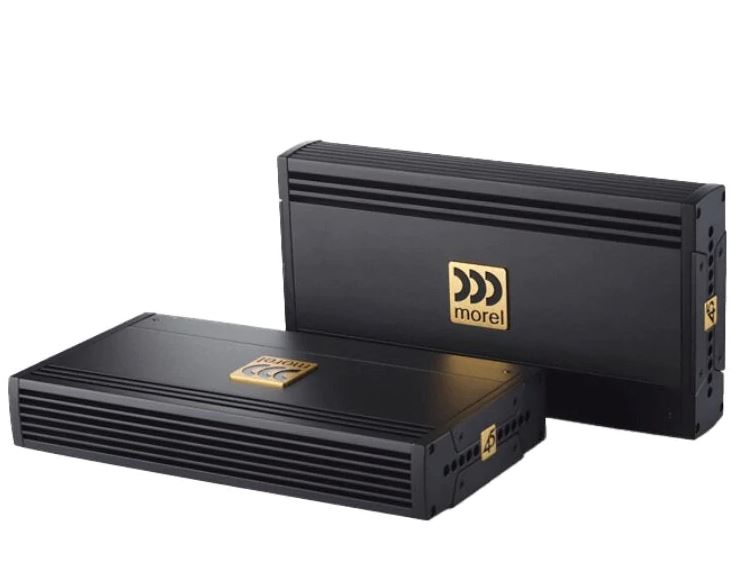

The MPS Limited amps feature an optional stacking system for using multiple MPS Limited amps in a system.

When installing, select the correct mode under the amplifier. In high power mode, the MPS 2.150 Limited delivers 150 watts x 2 into a 4 ohm load. Switch to high current mode and the amp is now optimized for 150 watts x 2 into 2 ohms. This simple solution provides an exceptionally stable platform and a highly effective way to unleash the amplifier's performance potential.

Specifications

Power at 4Ω

• 2x 150 watts RMS (high power mode)
• 2x 100 watts RMS (high current mode)

Power into 2Ω

• N / A  (high power mode)
• 2x 150 watts RMS (high current mode)

Minimum impedance 4-ohm stereo

THD+N 0.02%

Frequency range (+/-1dB) 10Hz-80kHz

S/N ratio (nominal, A-weighted) 111dB

Damping factor >250

Dimensions (H x W x L) 51mm x 170mm x 322mm
