Ampire MBM500.1-4G - 1-channel amplifier

Ampire
Preview: Ampire MBM500.1-4G - 1-channel amplifier Preview: Ampire MBM500.1-4G - 1-channel amplifier Preview: Ampire MBM500.1-4G - 1-channel amplifier Preview: Ampire MBM500.1-4G - 1-channel amplifier Preview: Ampire MBM500.1-4G - 1-channel amplifier Preview: Ampire MBM500.1-4G - 1-channel amplifier Preview: Ampire MBM500.1-4G - 1-channel amplifier Preview: Ampire MBM500.1-4G - 1-channel amplifier
Ampire MBM500.1-4G - 1-channel amplifier
Ampire MBM500.1-4G - 1-channel amplifier
Ampire MBM500.1-4G - 1-channel amplifier
Ampire MBM500.1-4G - 1-channel amplifier
Ampire MBM500.1-4G - 1-channel amplifier
Ampire MBM500.1-4G - 1-channel amplifier
Ampire MBM500.1-4G - 1-channel amplifier
Ampire MBM500.1-4G - 1-channel amplifier


5% discount

If you buy 1 of the products of this action, you will receive a discount of 5% .
€189.00 *

Prices incl. VAT plus shipping costs

available,
Delivery time appr. 1-2 working days

Seen cheaper?
Quantity
Artikel günstiger gesehen?
  • Order number: 02072MBM5001-4G
  • EAN 4260052640227
Description Evaluations 0 Produktsicherheitsverordnung (GPSR)
Description
Ampire power amplifier, 1x 500 watts, Class D Ampire's best-selling monoblock is the... more
Close menu
Product information "Ampire MBM500.1-4G - 1-channel amplifier"

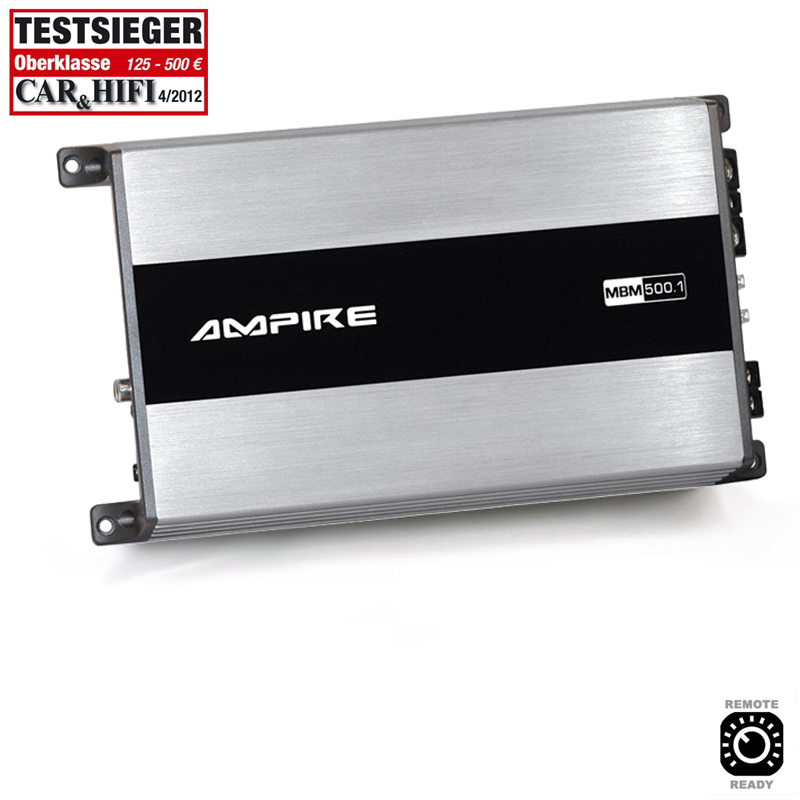

Ampire power amplifier, 1x 500 watts, Class D

Ampire's best-selling monoblock is the MBM500.1 with an incredible 500 watts RMS in the smallest dimensions.
Just 251x141x50mm in size, extensive active crossover, subsonic filter, bass boost, RCA inputs and speaker inputs with auto-turn-on.
It is not without reason that this power amplifier won the test in Car&Hifi 4/12.

 MBM500.1

  • Mono Digital amplifier
  •  Ultra-compact design
  •  Cinch & Speaker inputs
  •  500 Watt RMS/1000 Watt max.
  •  Illuminated AMPIRE logo

Power supply

  •  Operating voltage: 10 - 16 VDC
  •  Quiescent current: 0.86A
  •  Quiescent current when switched off: <0.0004A
  •  2x 25A Fuse

Power amplifier

  •  Output power (RMS) @ 14.4V / 4 Ohm: 300 Watt x 1
  • Output power (RMS) @ 14.4V / 2 Ohm: 500 Watt x 1
  •  Output power (max.) @ 14.4V / 4 Ohm: 600 Watt x 1
  •  Output power (max.) @ 14.4V / 2 Ohm: 1000 Watt x 1
  •  Total harmonic distortion: <0.5%
  • - Signal/noise ratio: >85dB
  • - Input sensitivity: 200mV - 6.0V

Active crossover

  •  Low pass filter 30Hz - 250Hz
  •  Slope: 12dB
  •  Bass boost gain: 0-12dB
  •  Bass boost frequency: 40-100Hz variable
  •  Subsonic filter: 20Hz/24dB

Other

  •  Dimensions (LxWxH): 251 x 141 x 50mm
  •  Weight: 1.90Kg
  •  Inputs: 2x Cinch, 2x speakers (High Level Auto Turn On for radios with BTL amplifiers)

Cable cross-section of the connection terminals

  •  Power supply up to 35mm²
  •  Speakers up to 10mm²

Approval

  •  E number: E8 10R-04 1281
quantity: 1 piece
Cinch Output: 1 pair
High Level Inputs: 1 Paar
Impedance (in Ohm): 2,0
Channels: 1
Peak Power (in Watt): 1000
Power RMS (in Watt): 500
Product group: Amplifier
Amplifier Features: digital, High-Level-Input
