QM-TWOV3 The extremely compact power amplifier QUANTUM QM-TWO has long been... more

Close menu

Product information "ESX QM-TWOV3 - 2-channel amplifier"

QM-TWOV3

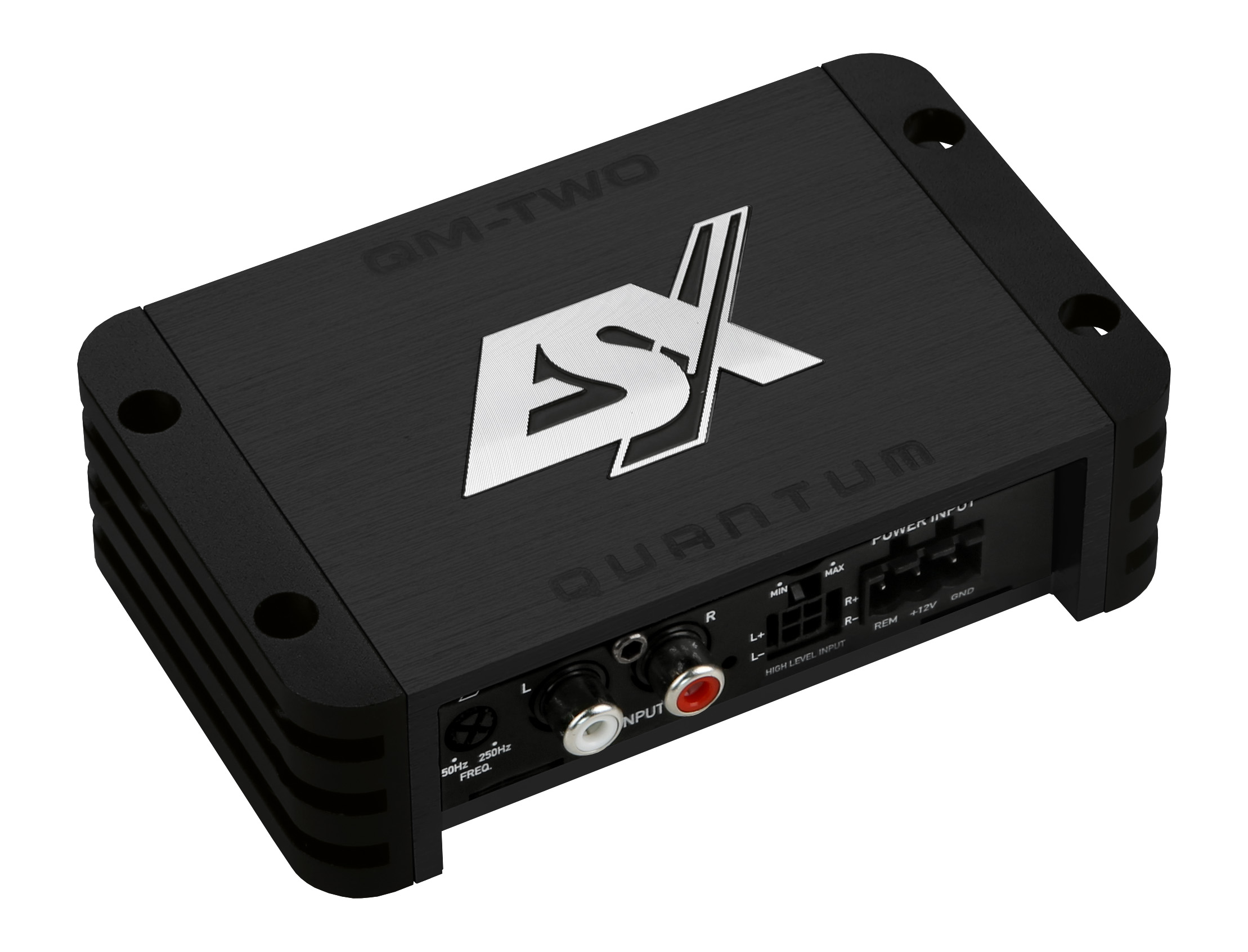

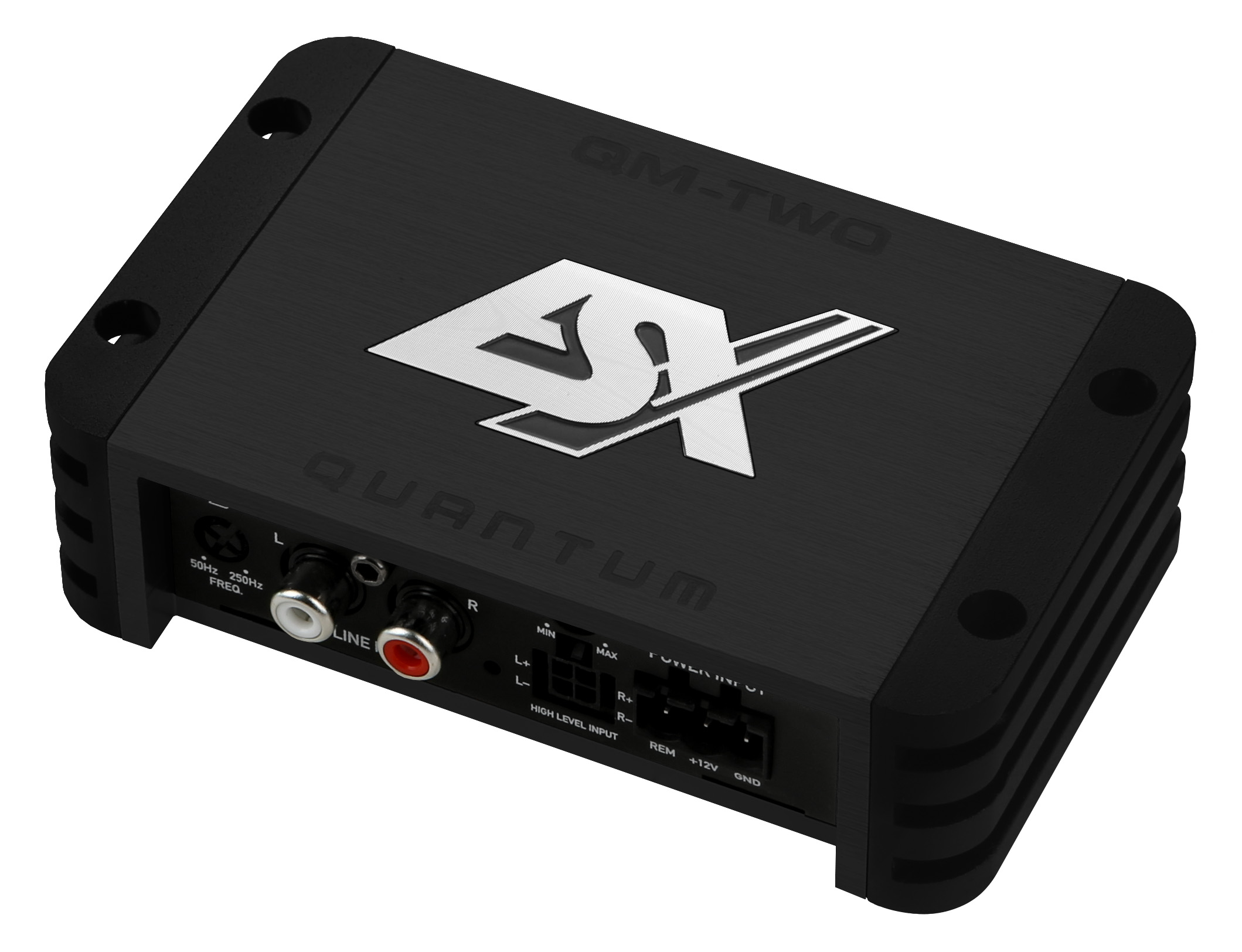

The extremely compact power amplifier QUANTUM QM-TWO has long been one of the top sellers in the ESX amplifier portfolio. Since the larger QM and QL models are now available in black and enthusiastic ESX Quantum fans want to install the small QM-TWO in the same look, we are now presenting the new QM-TWOv3 as an exclusive "Black Edition." The reasons for its success are literally "obvious": measuring just 7.5 x 12 cm, this small Class D power amplifier is an incredibly powerful miniature powerhouse, ideal for driving many speakers up to 2 Ω.

With 2 x 150 watts RMS at 2 Ω, the V3 can easily drive almost any speaker. Compared to the v1 version, the power output has been increased by an impressive 25% while maintaining the same size. With a bridge output of 300 watts RMS, the power amplifier is even capable of providing sufficient power to subwoofers.

Despite the 25% increase in power and the unchanged heat sink, the QM-TWO v3 achieves a sensational efficiency of 85%. This not only keeps power consumption low , but also eliminates the need for excessively thick power cables.

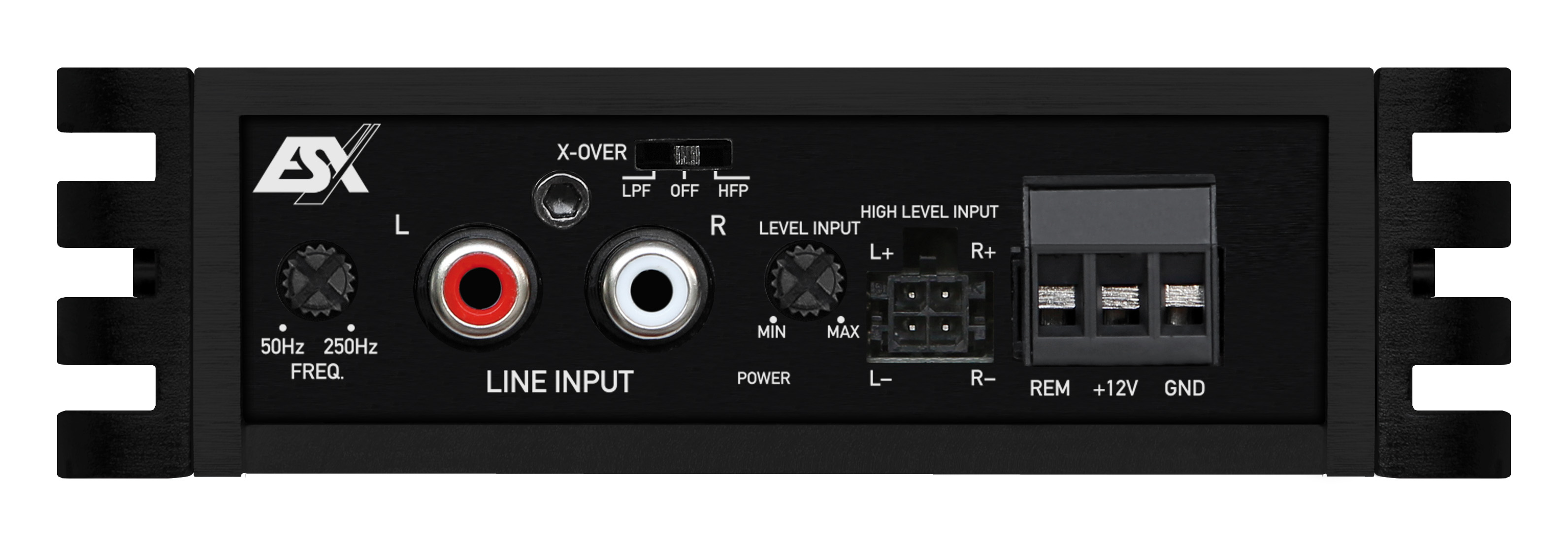

The QM-TWOv3 is equipped with high-quality features. The frequently required high-level inputs with pluggable mini-Molex connectors and automatic switch-on are equipped with proven EPS technology. This makes it possible to integrate the QM-TWOv3 into modern vehicles with factory systems and speaker diagnostic systems without causing errors in the on-board electronics. In addition, ESX has not dispensed with classic RCA inputs: this means that the QM-TWOv3 can also be connected directly behind DSPs or high-end radios at any time.

Features

Efficient Class D amplifier with ultra-compact dimensions
Heavy cast aluminum heat sink with optimal cooling properties
Automatic power-on function
High-level inputs with Error Protection System (EPS)
Start/stop ready

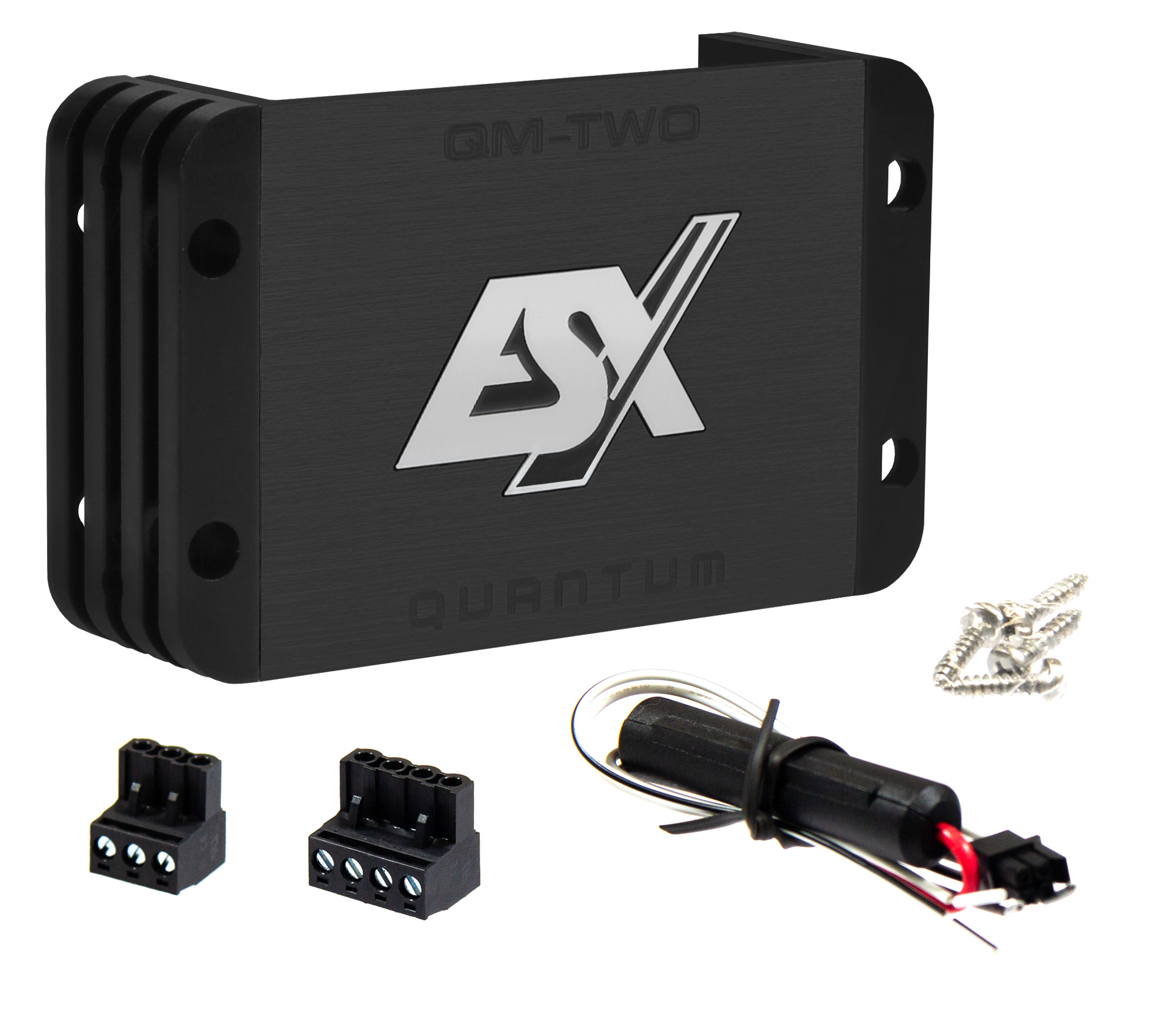

Removable power/speaker connectors
RCA inputs

Technical

2-channel Class D mini digital amplifier
2 x 100/150 watts RMS @ 4/2 Ω
1 x 300 watts RMS @ 4 Ω bridged
HPF/LPF 50-250 Hz
Dimensions 75 x 33 x 120 mm
Efficiency up to 85%

quantity:	1 piece
Impedance (in Ohm):	2,0
Channels:	2
Peak Power (in Watt):	600
Power RMS (in Watt):	300
Product group:	Amplifier
Amplifier Features:	bridgeable, digital, High-Level-Input
