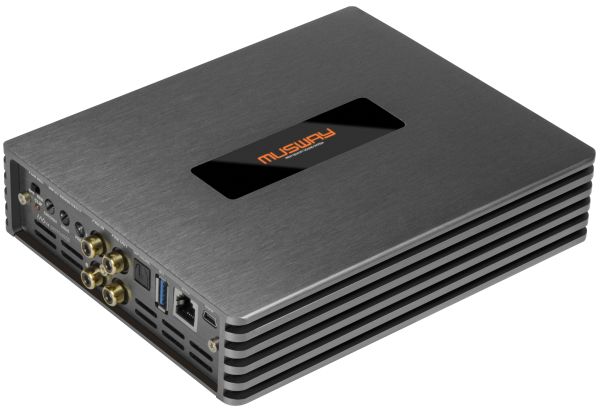

Musway M6V4 - 6-channel class-D amplifier with 8-channel DSP

Musway M6V4 Standard version with MX-Connect™ wiring harness to ISO

The 6-channel M6 power amplifier is not only a bestseller in the Musway range, but has been making car hi-fi history for years: In the 01/2025 issue of Car & Hifi, the new v4 version secured two first-place finishes: It was honored as "BEST PRODUCT" in the top category and was named "PRODUCT OF THE YEAR 2025" by the editors in the DSP power amplifier category. The outstanding sound and noticeable performance improvement overshadowed everything else: In the test lab, the new M6 impressed with 6 x 96 watts at 4 ohms and a whopping 6 x 166 watts at 2 ohms – more than ever before. The fact check confirms: Musway's performance specifications are not only reliable – they are even exceeded!

High-quality components are also a given for Musway in the area of signal processors: The Analog Devices™ ADAU1452 DSP chip is used, combined with signal converters from Burr-Brown™. Sound adjustments can be made in a flash using a smartphone app or conventional PC software. Whether frequency response or time correction, Q-factor or time adjustment, phase shift, or complex crossover configurations – you have a wide range of setting options at your disposal to professionally meet all your audiophile requirements. Plug and play via MX-Connect™ or ISO version.

The M6Evo features a 20 cm long cable with open ends, while the M6 comes with a 2.5 meter long ISO cable for easy plug and play connection to the car stereo. Numerous T-cable sets are available as options for easy plug and play connection of the M6. Now also available as a 24V version.

Features:

• High-level input with EPS® (Error Protection System)
• Start-stop capable, automatic power-on
• Burr-Brown converter (PCM3168A) and Analog Devices DSP (ADAU1452)
• Dual 64-bit, 295 MHz DSP technology, controllable via PC software or smartphone app
• Soft clipping (power attenuation) in 2 ohm operation
• Signal-to-noise ratio 94 dB, frequency response 10 Hz – 20 kHz (-3 dB)
• THD 0.014% (1 kHz, 4 ohms, 5 W)
• Separately controllable input sensitivity (channels 1-4, channels 5-6), clipping LEDs
• Includes 2.50 m MX-Connect™ wiring harness to ISO
• Plug+Play with vehicle-specific cable sets
• External Bluetooth® USB dongles BTS, BTS-HD & BTA2 for audio streaming and app control (optional)
• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
• Quick Connect Terminal for connecting MUSWAY subwoofer systems

Specifications:

• 6 x 80/130 watts RMS @ 4/2 ohms or
• 3 x 260 watts RMS @ 4 ohms bridged
• 6 x high-level inputs with EPS ®
• 6 x low-level inputs* RCA
• 2 x AUX inputs RCA
• 1 x optical input/stereo PCM
• 6 x amplified speaker outputs
• 2 x RCA preamplifier output (configurable via DSP)

Dimensions: 150 x 44 x 200 mm

* only with optional cable set MPK-RCA6/MPK-RCA6-PP
