JL Audio XDM600/1 - - 1-Channel Monoblock Amplifier for Car and Marine

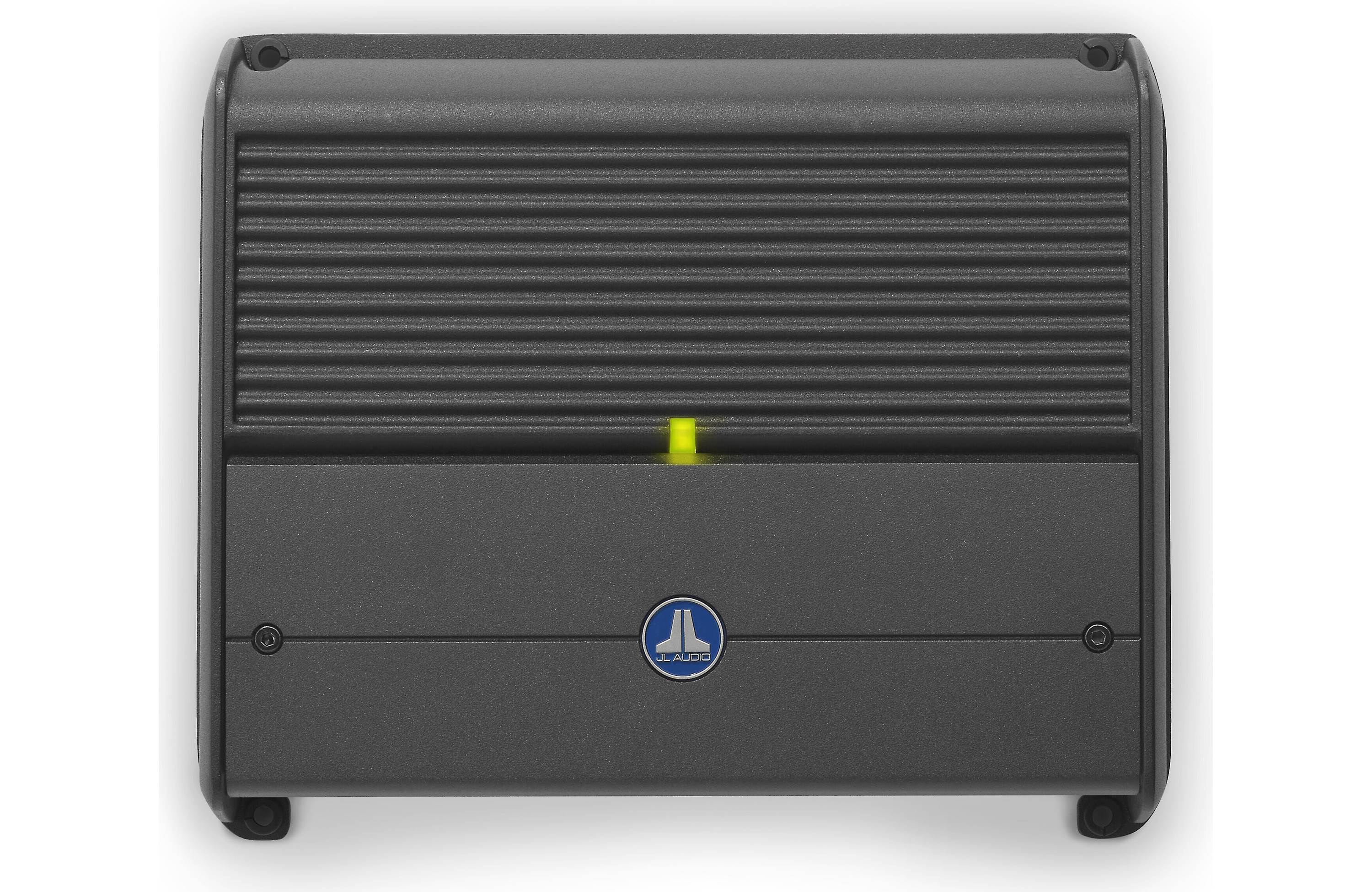

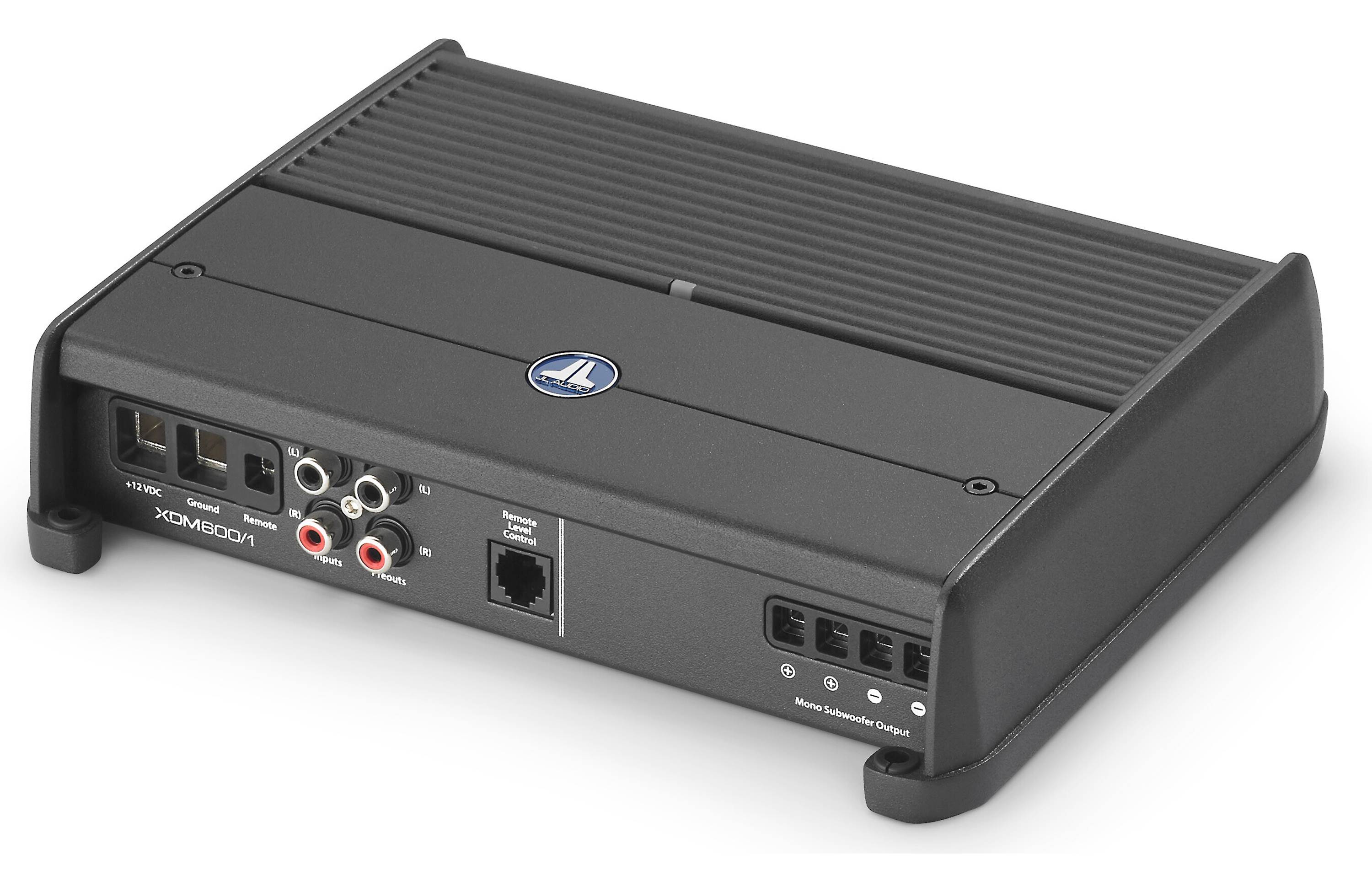

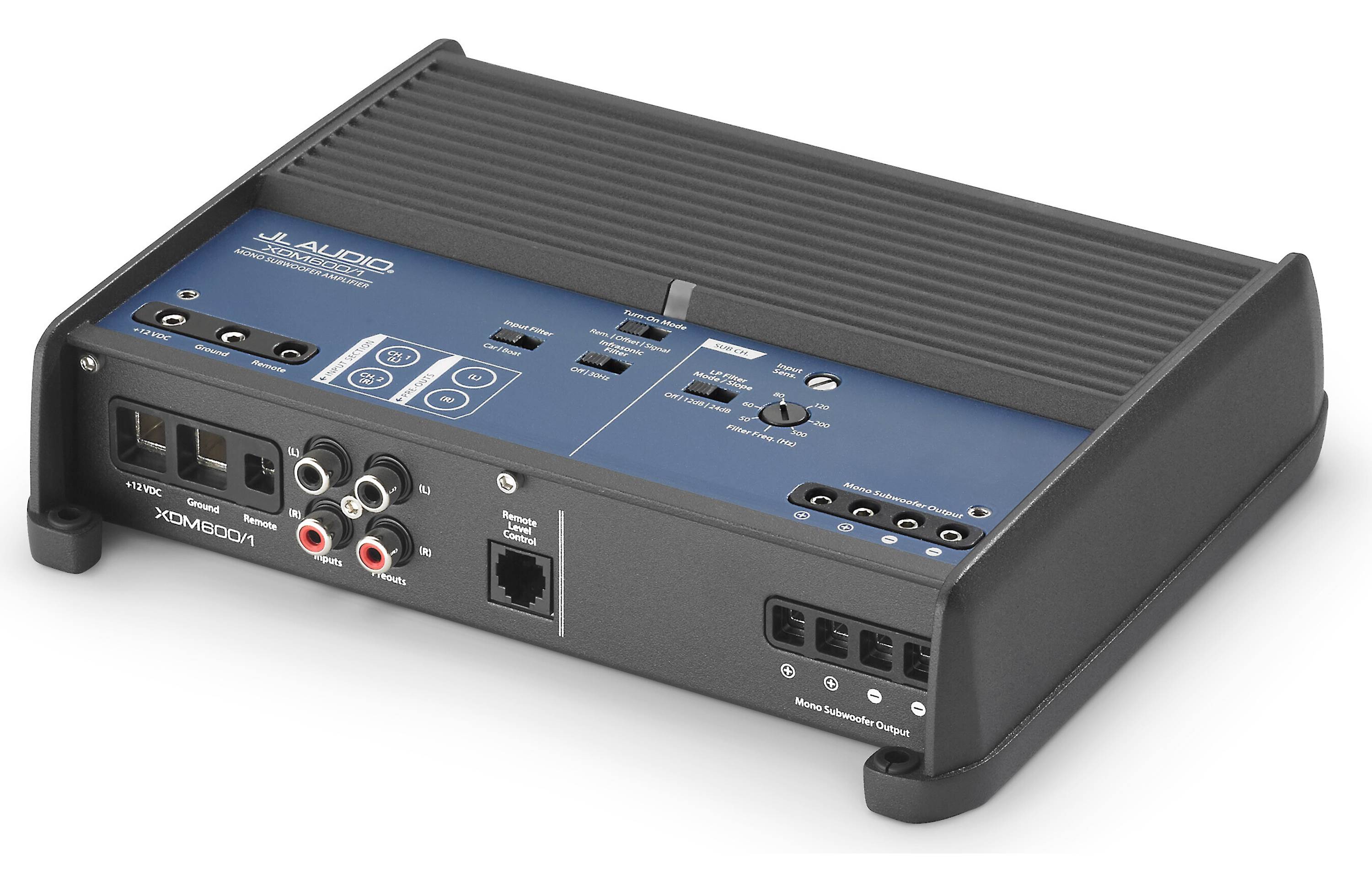

JL Audio XDM600/1

Powerful, Compact, Incredible Value

Thanks to NexD technology, XDM amplifiers achieve an overall efficiency of over 80%. This results in lower energy consumption and thus protects your electrical system.

Technical Specifications

General

• Monoblock Channels
• Physical Dimensions (Height) 2.05" (52 mm)
• Dimensions (Width) Monoblock (600 W)/3/4-Channel: 8.52" (216 mm)
• Monoblock (1000 W)/5 (1000 W)/8-Channel: 14.73" (374 mm)
• Physical Dimensions (Depth) 7.09" (180 mm)
• Weight
• Monoblock (300 W): 3.8 lbs (1.72kg)
• Monoblock (600 W): 6.3 lbs (2.86 kg)
• 2-channel: 3.75 lbs (1.7 kg)
• 3/4 channel: 4.8 lbs (2.18 kg)
• 5-channel (700W): 6.15 lbs (2.79 kg)
• 6-channel: 5.8 lbs (2.63 kg)
• Warranty 3 years
• Operating voltage 11-14.5 VDC (12 V models)

Audio

• Amplifier class Class D
• Rated continuous power (RMS) (14.4 V input at 4 Ohms <1% THD)
• Monoblock (600 W): 400 W x 1
• Rated continuous power (RMS) (14.4 V input at 2 Ohms <1% THD)
• Monoblock (600 W): 600 W x 1
• Rated continuous power (RMS) (12.5 V input at 4 Ohms <1% THD)
• Monoblock (600 W): 300 W x 1
• Rated continuous power (RMS) (12.5 V input at 2 Ohms <1% THD)
• Monoblock (600 W): 500 W x 1

• Signal-to-noise ratio, relative to the highest Rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Monoblock (600 W): > 87 dB
• Signal-to-noise ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog inputs Monoblock (300 W): Monoblock (600 W): > 67 dB
• Damping factor at 4 Ω Monoblock (600 W): > 1000/50 Hz
• Damping factor at 2 Ω Monoblock (600 W): > 500/50 Hz
• THD+N at rated power Monoblock (300 W/600 W)/2/4/6-channel: <1% at 2 Ω per channel
• Frequency response (+0, -1 dB) Monoblock (600 W/1000 W): 7 Hz–500 Hz

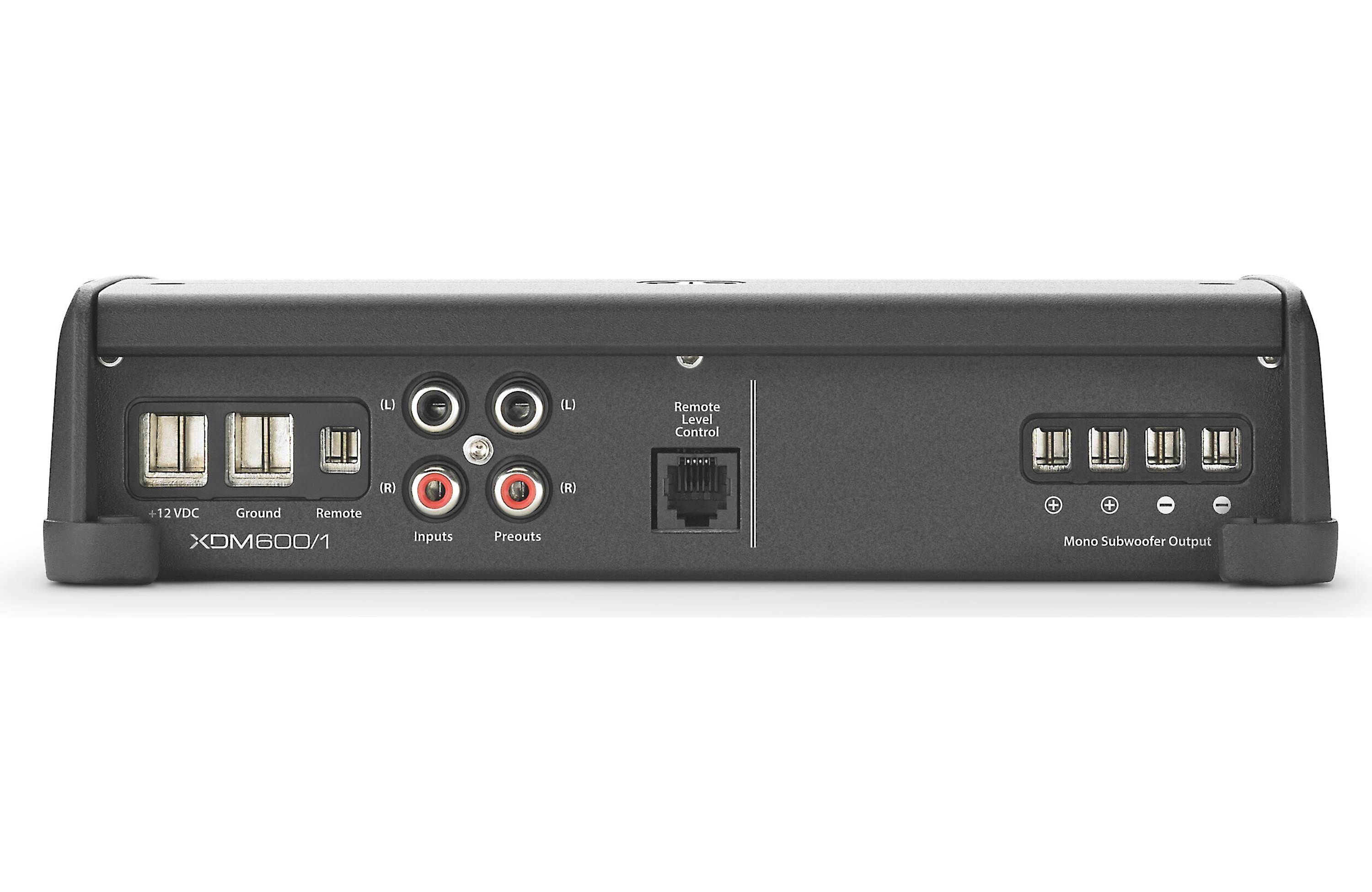

• Input voltage range @ RCA inputs Monoblock (300 W/600 W/1000 W)/2/3/4-channel: 200 mV – 4 V RMS
• Fuse rating Monoblock (600 W): 50 A
• Recommended fuse types AFS, AGU or MaxiFuse

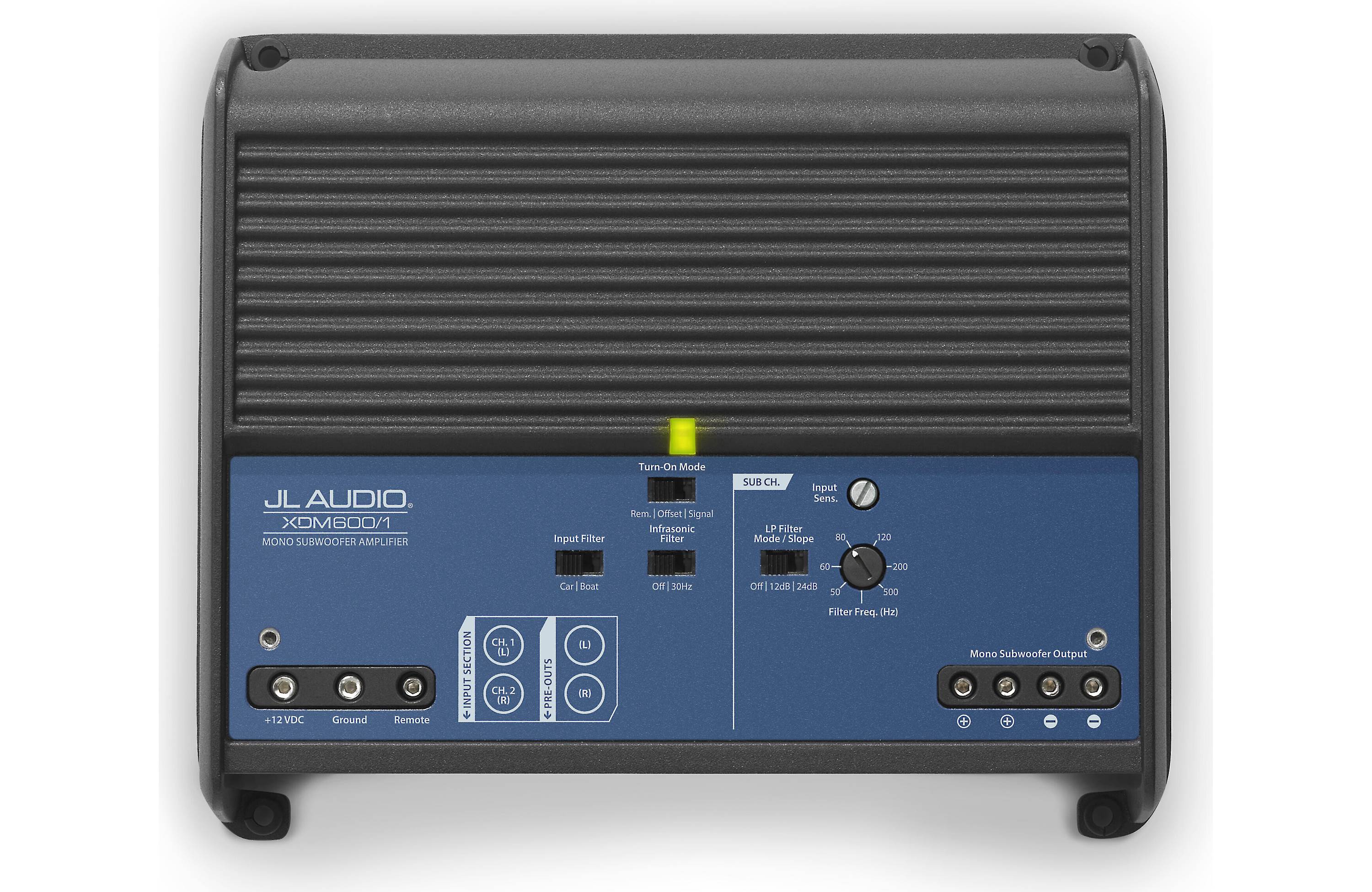

Signal Processing

• Filter Mode(s): Channels 1 and 2 Monoblock (300 W/600 W/1000 W): Off or Low-Pass Only
• Filter Slope(s): Channels 1 and 2 Monoblock (300 W/600 W/1000 W): 12/24 dB/Octave
• Filter Frequency Range: Channels 1 & 2 Monoblock (300 W/600 W/1000 W): 50 Hz–500 Hz
• Filter mode(s): Subwoofer channel 3/5-channel (700 W/1000 W): Off or low-pass only
• Detented, calibrated filter frequency potentiometers
• Infrasonic filter: Subwoofer channel Monoblock (600 W): 30 Hz, switchable
• Remote level control: Optional HD-RLC or MHD-RLC (water-resistant)
• Pass-through preamplifier output Monoblock (300 W/600 W)/2/3/4-channel: Buffered
