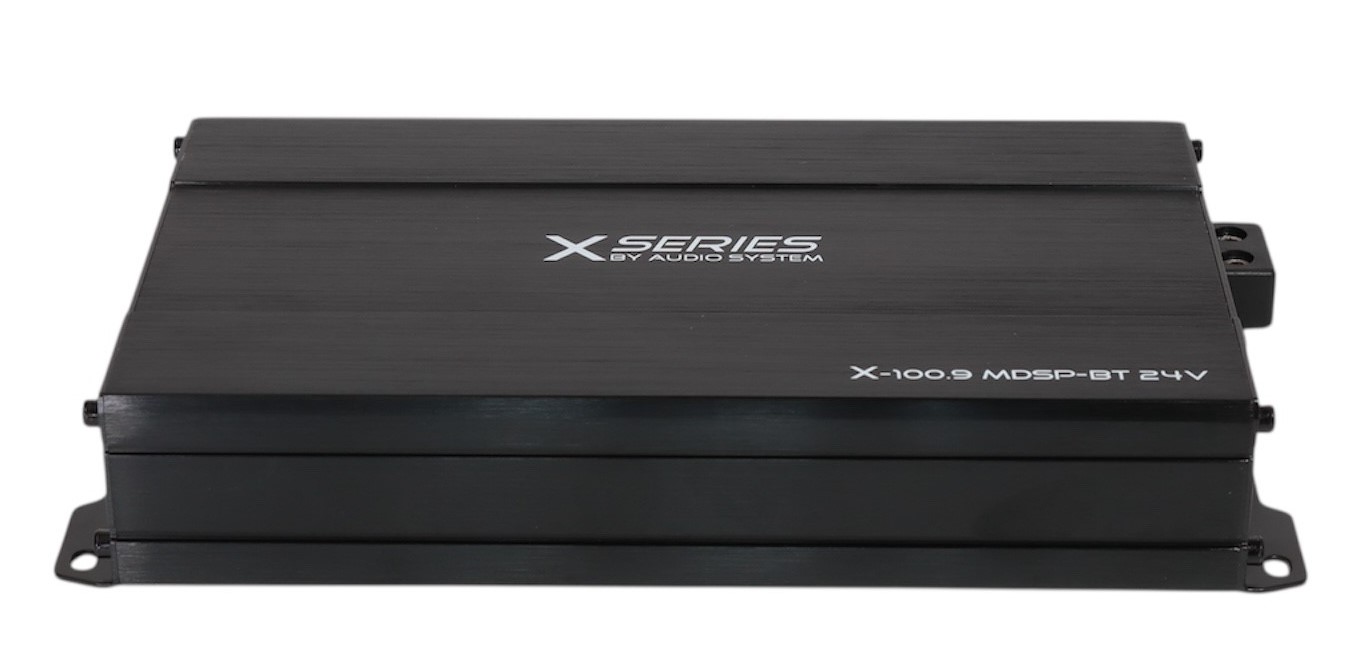

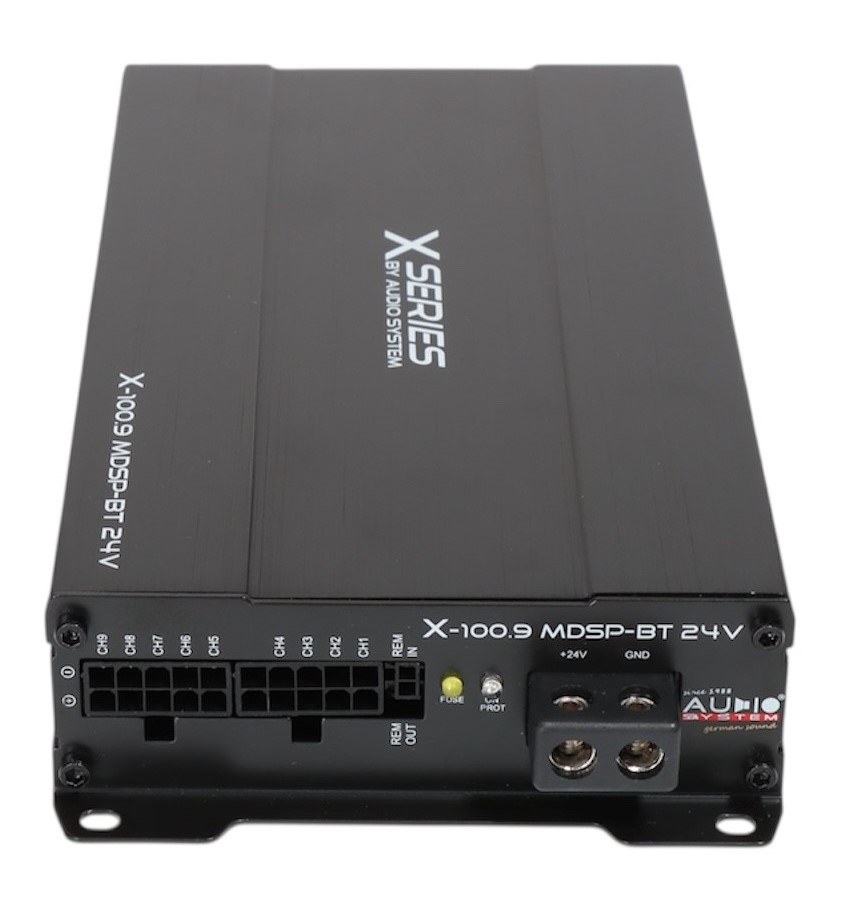

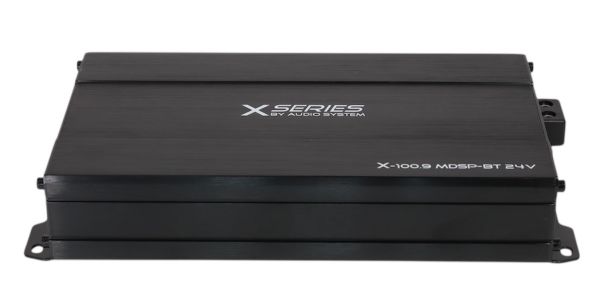

Audio System X-100.9MDSP-BT 24V - 9-channel amplifier with DSP - 24V

X-100.9 MDSP-BT 24V

SPECIALLY FOR TRUCKS

• 9-channel amplifier with 13-channel DSP and BT
• APP software adjustable via ANDROID-BT or iOS-BT
• 13-channel SIGMA DSP processor from ANALOG DEVICES with automatic
  UPDATE via WLAN
• 30 parametric EQs per channel
• 8 presets
• Up to 48 dB slope
• 4 DSP-controlled RCA outputs (5 volts)
• 6 RCA inputs (low level 0.5 to 4 volts)
• 6 Molex High-level inputs (up to 12V) via BTL or SE signal detection
  with automatic switch-on
• 1x remote output
• Frequency range: 10-24000 Hz
• Signal-to-noise ratio ADC: 107 dB and DAC: 112 dB
• Start/stop capable up to 18 Volts/5 seconds
• Operating voltage 20-32 Volts
• Operating temperature from -40°C to +85°C

Performance data

• 8x 100 WRMS at 4 Ohms
• 8x 140 WRMS at 2 Ohms
• 1x 30 WRMS at 4 Ohms Ohm

Dimensions

• 113 x 38 x 193 mm
