ESX SX-ONE - 1-Channel Mini Digital Amplifier

SX-ONE
With the SIGNUM SX Mini series, ESX expands its extensive car audio portfolio with four brand-new MINI Class-D amplifiers that set new standards with their minimal dimensions, outstanding sound, and surprisingly high power output of up to 600 watts RMS. These compact powerhouses utilize state-of-the-art Class D technology, which, thanks to its high efficiency, enables low heat generation, thus making the exceptionally space-saving design—only 83 mm wide and 38 mm high—possible. This makes the mini amplifiers ideal for discreet installations, whether under the seat, in the side panel, or in the trunk. A particularly practical feature: The SX-FIVE, SX-TWO, and SX-ONE models come with a bass level remote control. This allows for convenient bass adjustment from the driver's seat at any time—perfect for those who value flexibility and maximum control in everyday use.

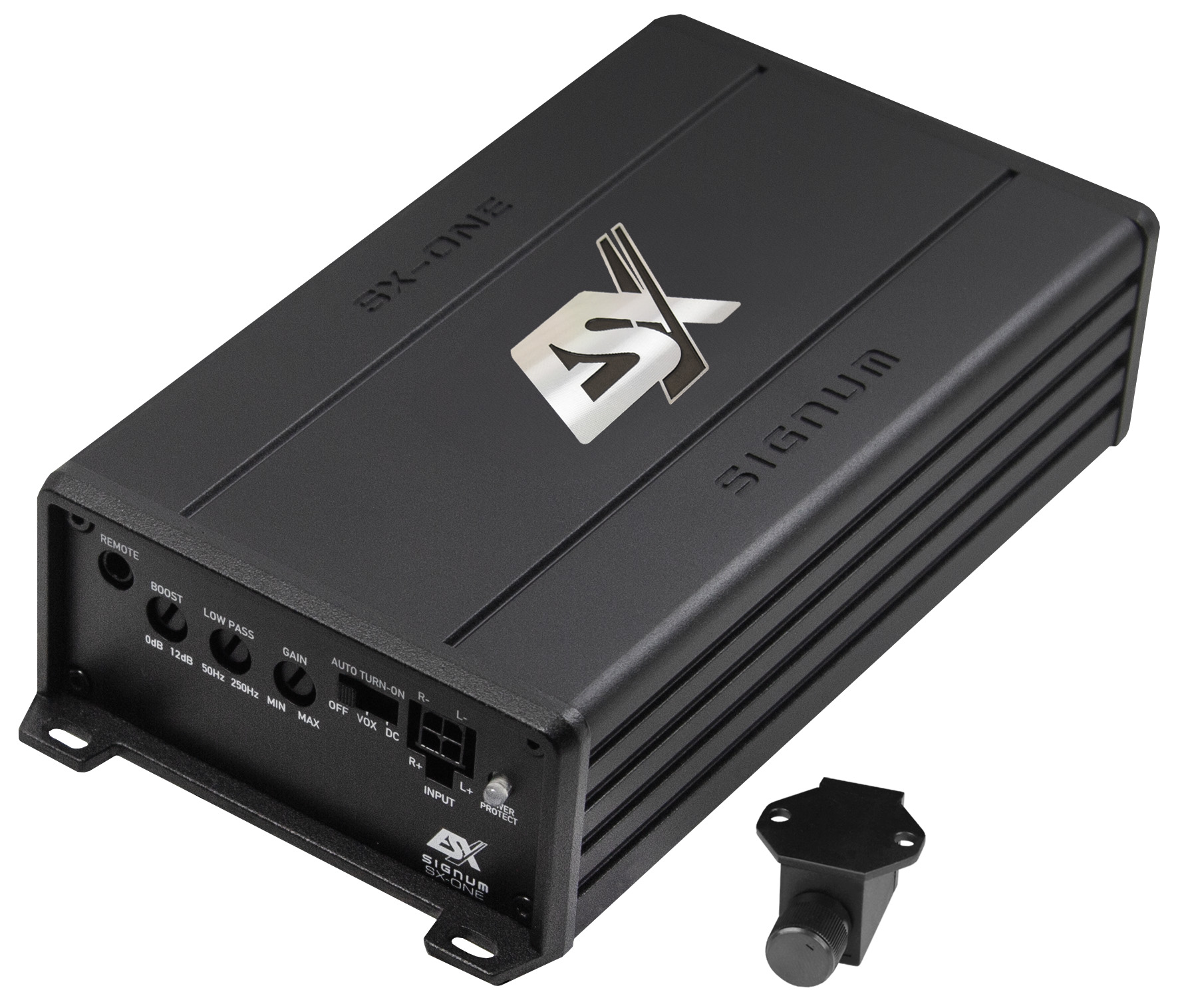

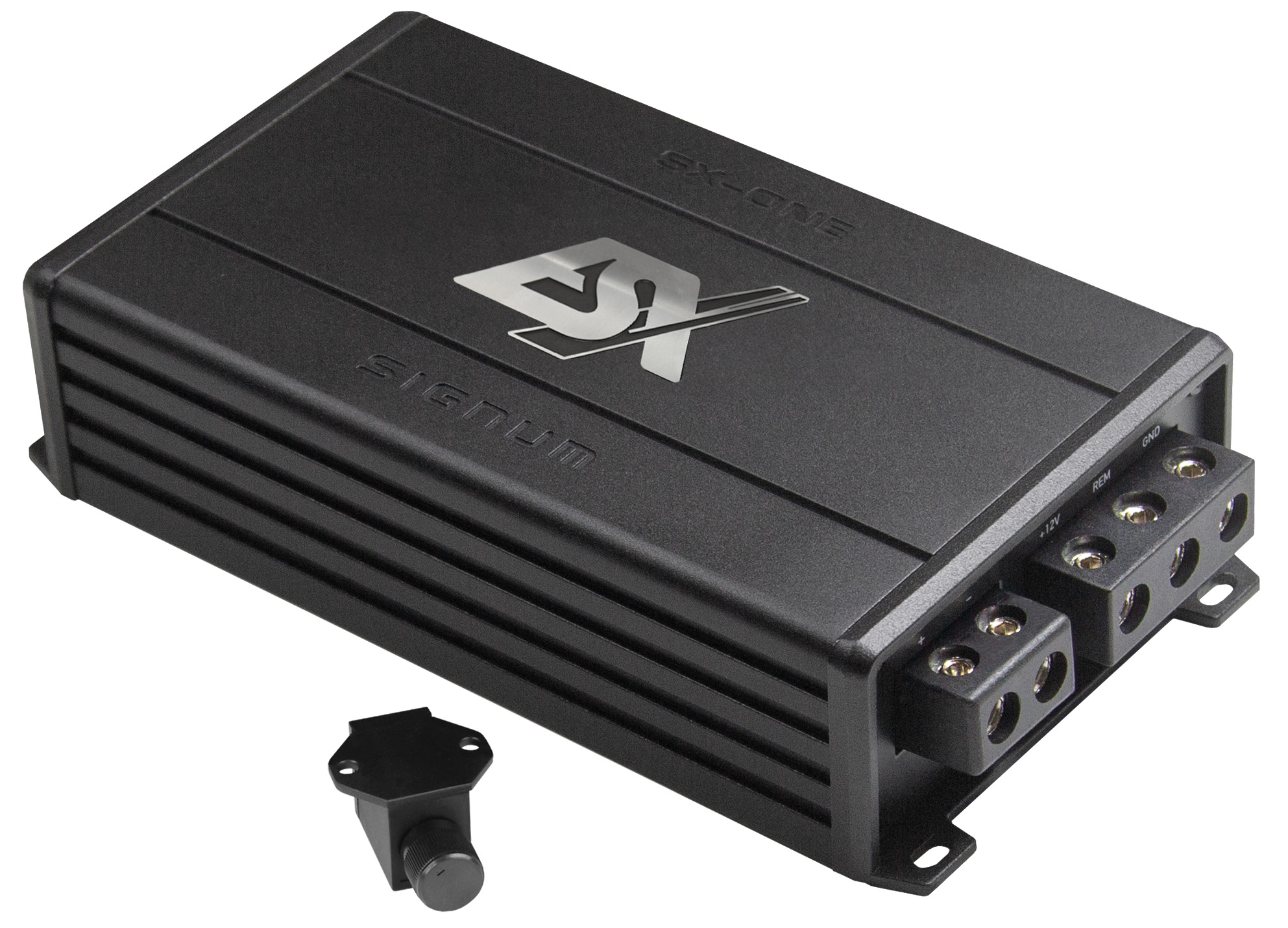

The SX-ONE is the top choice in the portfolio when it comes to driving subwoofers. The mini monoblock delivers impressive power up to 600 watts RMS at 1 ohm while remaining remarkably compact. State-of-the-art Class-D technology ensures efficient operation, stable performance, and controlled deep bass.
Features

• Efficient Class D amplifier with compact dimensions
• Die-cast aluminum heat sink with optimal cooling properties
• RCA inputs via cable connectors
• Compact bass level remote control
• High-level inputs with Error Protection System (EPS®)
• Automatic power-on function
• Start/Stop Ready

Specifications

• Mono Mini Class D Digital Amplifier
• 1 x 200/375/600 Watts RMS @ 4/2/1 Ω
• LPF 50 - 250 Hz
• Bass Boost 0 - 12 dB
• Dimensions 83 x 38 x 153 mm
• Efficiency up to 87%
