Ampire KAX602 - Mini reversing camera (AHD/CVBS) 180°

KAX602

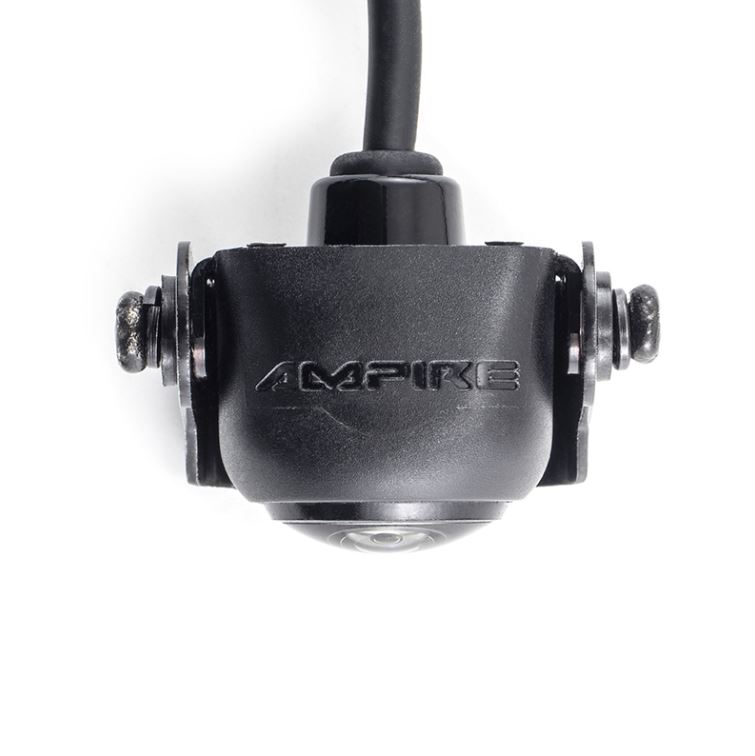

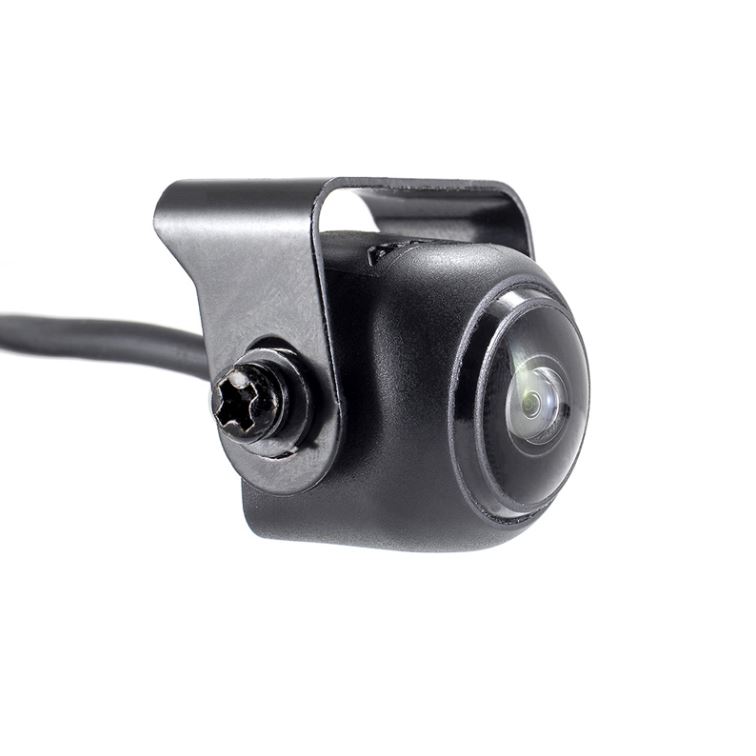

The KAX602  This miniature under-mount camera is a high-resolution AHD/CVBS camera with unlimited applications in cars, buses, motorhomes, trucks, or trailers as a front or rear-view camera. The matte black plastic housing is particularly weather-resistant, IP69K waterproof, and very robustly constructed. Two different guide lines (narrow/wide) can be optionally superimposed on the video signal to assist the viewer with parking. The camera comes complete with an 8-meter extension cable with high-quality copper strands.

Features

• AHD/CVBS wide-angle camera in a plastic housing
• Suitable for 24/7 continuous operation
• IP69K waterproof with stainless steel bracket

Settings

• Guidelines: enabled by default (2 different options)
• Image display mirrored (adjustable)
• Image display rotated 180° (adjustable)
• Image playback AHD/CVBS (adjustable)

Technical data

• Image sensor type AHD 1/4" 2729
• Video signal 1080P at 25 frames/second
• Resolution 1920x1080 pixels
• diagonal viewing angle 195°
• horizontal viewing angle 180°
• vertical viewing angle 110°
• Exposure time: 1/50-60~1/15000 seconds
• Signal-to-noise ratio => 60.5dB
• Light sensitivity < 0.01 lux
• Automatic white balance
• Automatic video level adjustment

General data

• Operating voltage 6 to 26 volts DC
• Power consumption 60-90mA
• DIN protection class IP69K

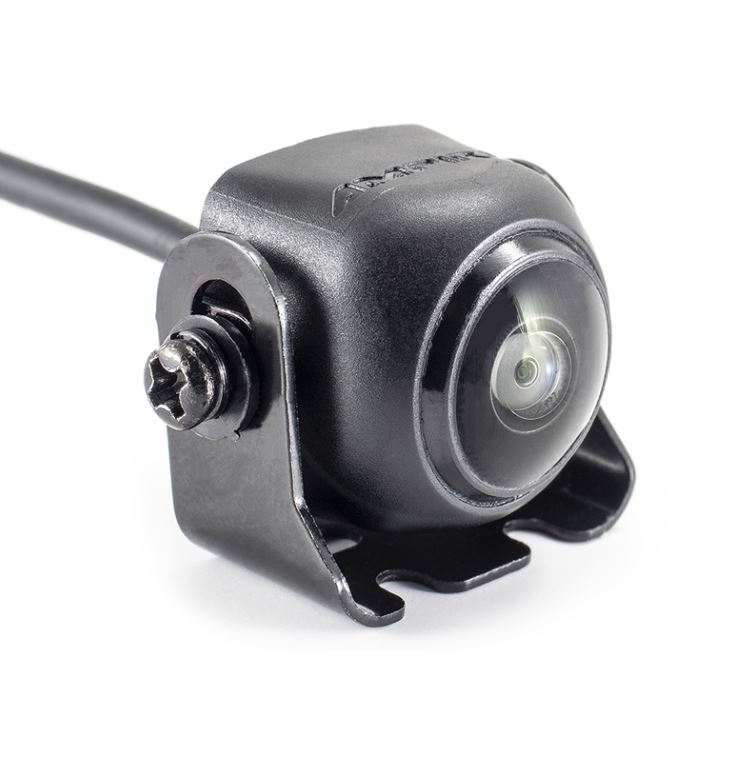

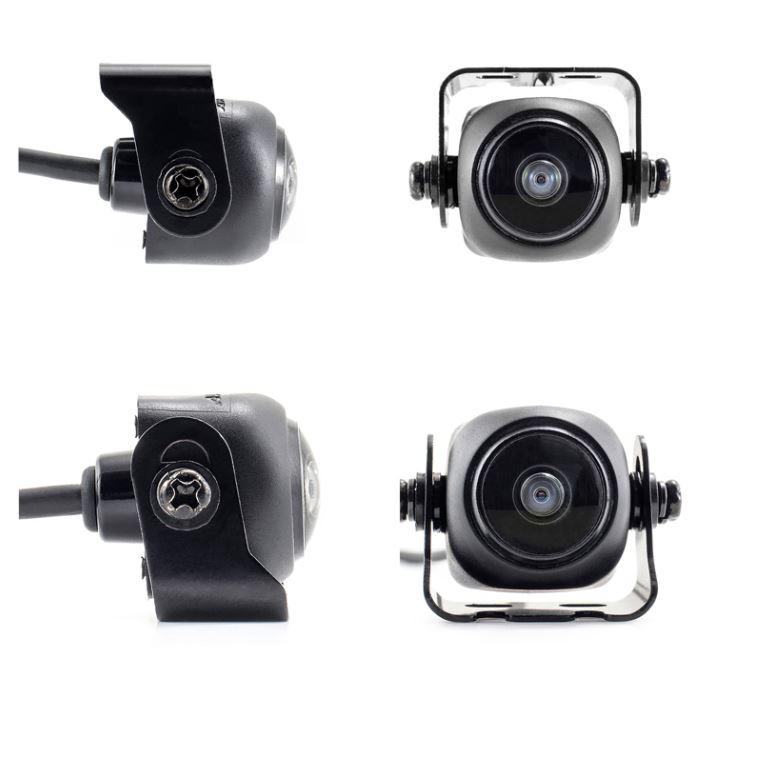

• matte black housing with stainless steel mounting

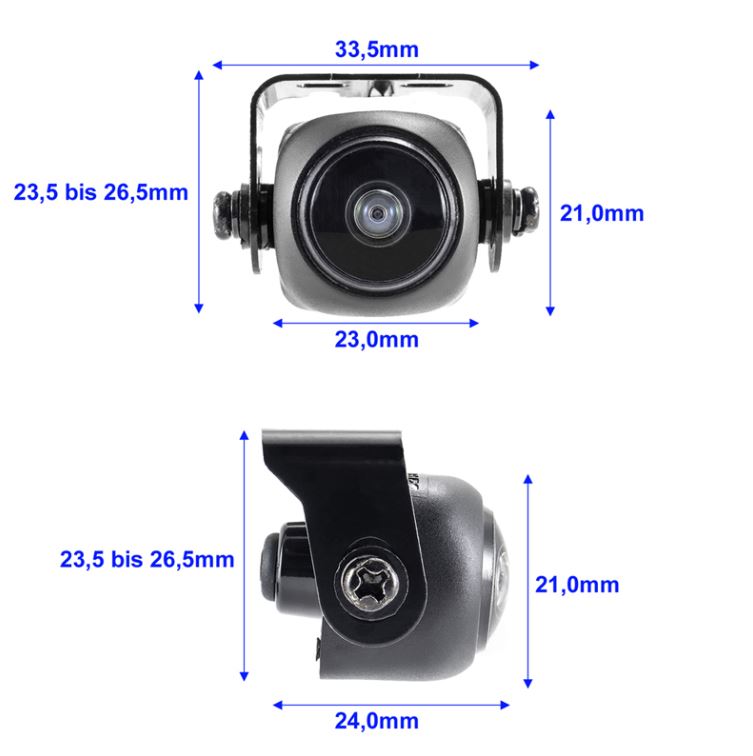

• Dimensions: 24x33.5x26.5mm
• Operating temperature -40°C to +75°C
• Storage temperature -60°C to 105°C
• E certified

Approvals

CE Directive of 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
FCC Part 15B Report No. STR12058092E-3

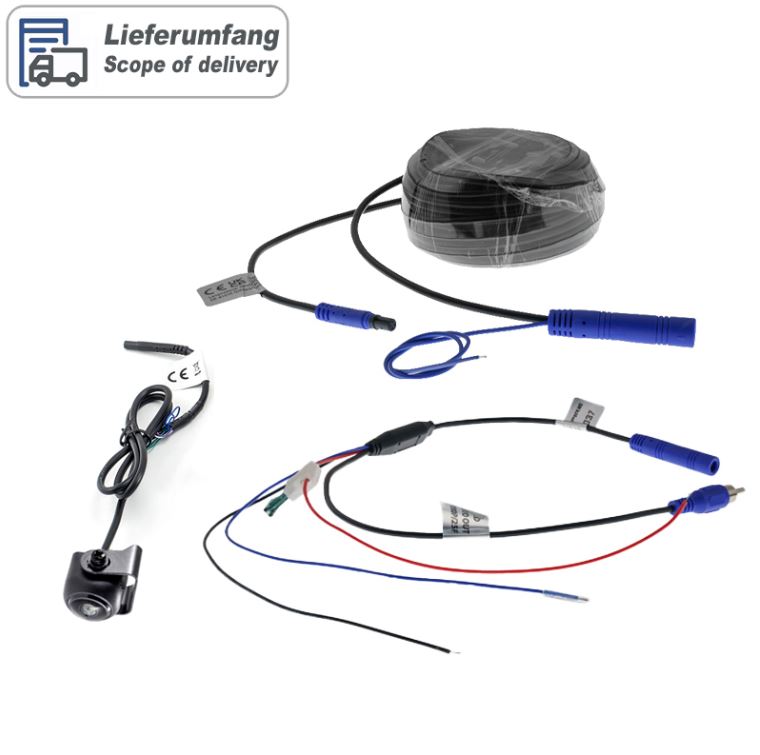

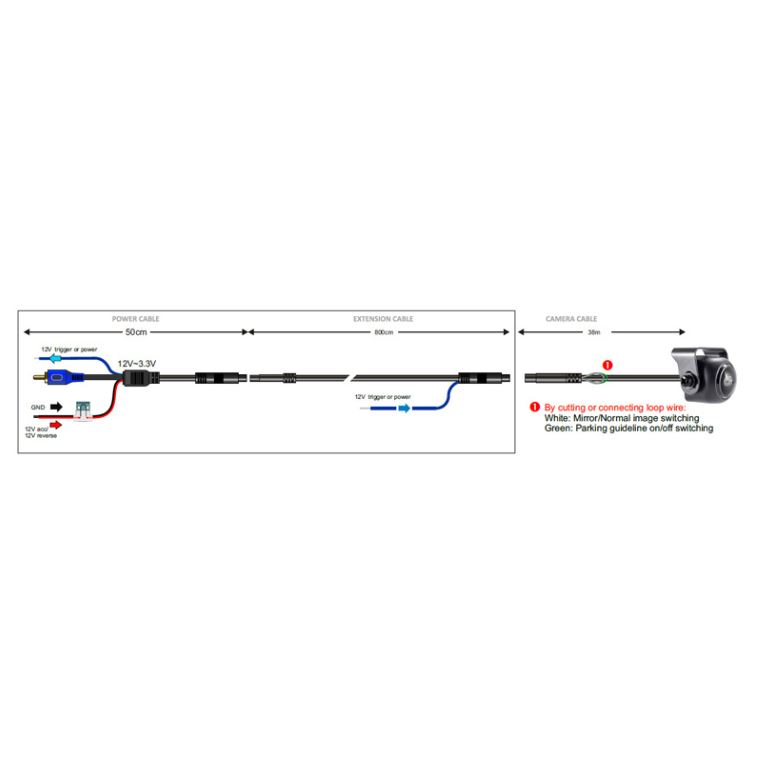

Scope of delivery

• camera
• 8m extension cable AK1038
• Power supply AK1037
• User manual

Order information

This camera is configured by default as a high-resolution AHD camera with a resolution of 1080p and 25 frames per second. In AHD mode, this camera can only be connected to AHD-compatible monitors, car stereos, or interfaces. If your monitor's camera input does not support AHD and can only display video signals in CVBS, composite, or NTSC, this camera (purple cable loop) must be set to CVBS.

Important instructions

The camera head is waterproof according to DIN protection class IP69K and does not require additional sealing during installation. The camera lens is made of glass and is fragile. All metal parts are made of stainless steel. Stainless steel is rust-resistant due to its protective chromium oxide layer. However, this layer can be damaged or degraded under certain conditions, which can lead to surface rust.
