ACV 611190-42-1 - 2-DIN kit with compartment Mercedes vehicles LFB/analog/antenna

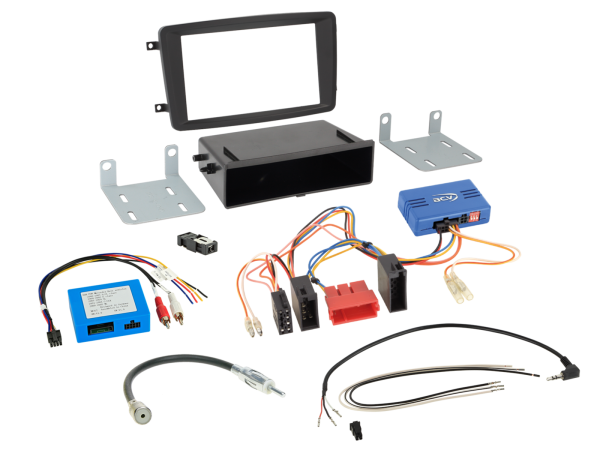

2-DIN radio panel with compartment and radio connection kit, steering wheel remote control for Mercedes

ACV Premium Quality

Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.

Installation kits contain all the components needed to replace an OEM unit.

Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit unit and restore vehicle functions are included.

Please note the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E-Call, or other driver assistance systems.

Before installation, check the OEM unit and the vehicle menu for various settings.


Compare the adapter connectors shown with those in your vehicle and ensure that they are visually and technically compatible.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final assembly, check the vehicle functions, vehicle settings, and steering wheel remote controls for functionality.

Note

• CAN Bus
• Connection: ISO / 10-pin ISO / Mini ISO connector Mercedes
• Check DIP switch position for retrofit device
• Mercedes vehicles with Audio 5 / Audio 10 1-DIN OEM device
• Mercedes vehicles with Audio 30 APS 1-DIN OEM navigation
• Mercedes vehicles with Comand 2.0 OEM navigation
• VW Crafter vehicles with RCD 2001 1-DIN OEM device
• Mercedes / VW vehicles with radio preparation > Code vehicle to OEM device if necessary
• Mercedes / VW vehicles with radio preparation > Check the connection and assignment before installation by measuring with the OEM device:
• Incorrect connection will damage the interface
• Vehicles with different interior comfort CAN bus connection:
• Brown-red twisted: CAN high
• Brown twisted: CAN low
• CAN bus to CAN bus distributor sill trim
• CAN bus to climate control
• CAN bus in mini ISO connector: Pin 2 CAN high / Pin 1 CAN low
• CAN bus in 8-pin ISO power connector: Pin 7 CAN high / Pin 6 CAN low
• Mercedes vehicles with Comand 2.0 OEM navigation:
• CAN bus in 18-pin AMP connector: Pin 9 CAN high / Pin 8 CAN low / not Robert Bosch CAN
• OEM devices with ISO block connection:
• ISO speaker extension 10cm > Article: 020041322-02
• Vehicles with 10-pin ISO / ISO speaker connector OEM sound system without D2B OEM sound system:
• Active system adapter for various vehicles ISO>ISO> Article: 020041190-50

Suitable for the following vehicles

• Mercedes C-Class (CL203) 10/2000 - 01/2005
• Mercedes C-Class (W203) 08/2000 - 02/2004
• Mercedes C-Class (S203) 01/2001 - 02/2004
• Mercedes CLK-Class (A209) 03/2003 - 03/2004
• Mercedes CLK-Class (C209) 03/2002 - 04/2005
• Mercedes G-Class (463) 10/2000 - 04/2007
• Mercedes Vito/Viano (W639/V639) 10/2003 - 03/2006

Color: Black

Radio display cutout: 172mm x 98.5mm

Optional

• Storage compartment for 2-DIN panels, short version

General installation instructions

Verification:
1: Check all operating functions and vehicle setting functions of the OEM device
2: Disassemble the OEM device with the power off
3: Check all interface connections for correctness and continuity with the power off

Connection and connection sequence:
1: Make the settings and hardware configuration of the interface with the power off
2: Check the configuration of the radio connection cable
3: Connect the radio connection cable according to the operating instructions for the retrofit device
4: Connect all other connections according to the operating instructions for the retrofit device
5: Connect the entire installation to the vehicle with the power-carrying connection last
6: Configure the software of the interface according to the instructions in the article text and in the user manual
7: Configure the retrofit device according to the operating instructions for the retrofit device: steering wheel remote control/camera/HFCK/antenna phantom power and further
8: Functional test of steering wheel remote control and vehicle

Changes to the hardware configuration of the interface and the radio connection cable:
1: Make changes with the power off
2: Connection after change, see above 5 to 8

In case of malfunction of the interface or the vehicle:
1: Revert to the OEM device
2: Operate the OEM device
3: Establish CAN bus rest
4: Check the hardware configuration of the interface
5: Connection after CAN bus rest, see above 5 to 8

Connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the operating instructions are for guidance and information purposes only for trained specialist personnel.

Further connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes may only be made by trained specialist personnel to be carried out
2: Connections and modifications must be checked for any manufacturer approvals or manufacturer warranty conditions that may be affected by the changes.
3: Connections and modifications must be checked for function and accuracy before connection by measuring and comparing them with the vehicle's cable assignment plan.
4: Connections and modifications are made at your own risk and without guarantee of function.
5: Connections and modifications are made at your own risk and without guarantee of damage to the vehicle, the retrofit device, or the interface.
6: Modifications to the pre-assembled wiring harness may void the product's warranty.
