ACV 621190-42-1 - 2-DIN kit Mercedes C/CLK/G/Vito/Viano

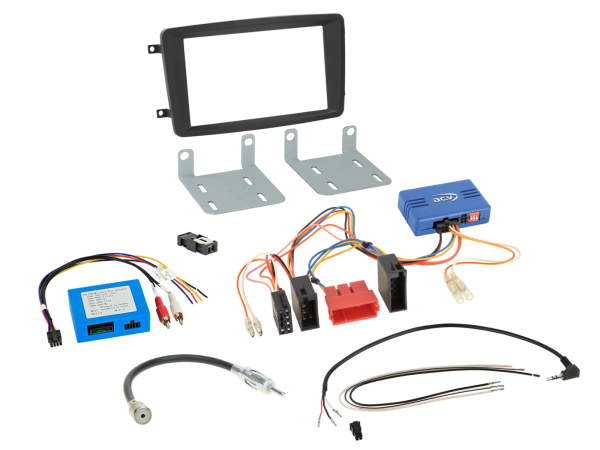

2-DIN radio panel with radio connection kit, steering wheel remote control, Mercedes C / CLK / G / Vito / Viano

ACV premium quality

Many car manufacturers install their own vehicle-specific radios, which are visually adapted to the center console.

Installation kits contain all components for replacing an OEM unit.

Depending on the vehicle's equipment, all adapters and interfaces required to operate the retrofit unit and restore vehicle functions are included.

Please note the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E-Call, or other driver assistance systems.

Check the OEM unit and the vehicle menu for various settings.

Depending on the vehicle equipment as well as the range of functions and software of the retrofit device, individual operating functions may be omitted or replaced by other functions.

Compare the adapter connectors shown with those in your vehicle and ensure that they match visually and technically.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final assembly, check the vehicle functions, vehicle settings, and steering wheel remote control for functionality.

Note

• CAN Bus
• Connection: ISO / 10-pin ISO / Mini ISO connector Mercedes
• Check DIP switch position for retrofit device
• Mercedes vehicles with Audio 5 / Audio 10 1-DIN OEM device
• Mercedes vehicles with Audio 30 APS 1-DIN OEM navigation
• Mercedes vehicles with Comand 2.0 OEM navigation
• VW Crafter vehicles with RCD 2001 1-DIN OEM device
• Mercedes / VW vehicles with radio preparation > Code vehicle to OEM device if necessary
• Mercedes / VW vehicles with radio preparation > Check the connection and assignment before installation by measuring with the OEM device:
• Incorrect connection will damage the interface
• Vehicles with different interior comfort CAN bus connection:
• Brown-red twisted: CAN high
• Brown twisted: CAN low
• CAN bus to CAN bus distributor sill trim
• CAN bus to climate control
• CAN bus in mini ISO connector: Pin 2 CAN high / Pin 1 CAN low
• CAN bus in 8-pin ISO power connector: Pin 7 CAN high / Pin 6 CAN low
• Mercedes vehicles with Comand 2.0 OEM navigation:
• CAN bus in 18-pin AMP connector: Pin 9 CAN high / Pin 8 CAN low / not Robert Bosch CAN
• OEM devices with ISO block connection:
• ISO speaker extension 10cm > Article: 020041322-02
• Vehicles with 10-pin ISO / ISO speaker connector OEM sound system without D2B OEM sound system:
• Active system adapter for various vehicles ISO>ISO> Article: 020041190-50

Suitable for the following vehicles

• Mercedes C-Class (CL203) 10/2000 - 01/2005
• Mercedes C-Class (W203) 08/2000 - 02/2004
• Mercedes C-Class (S203) 01/2001 - 02/2004
• Mercedes CLK-Class (A209) 03/2003 - 03/2004
• Mercedes CLK-Class (C209) 03/2002 - 04/2005
• Mercedes G-Class (463) 10/2000 - 04/2007
• Mercedes Vito/Viano (W639/V639) 10/2003 - 03/2006

Colour: black

Installation cutout for radio display: 172mm x 98.5mm

Optional

• Storage compartment for 2-DIN panels, short version

General Installation Instructions

Verification:
1: Check all operating functions and vehicle adjustment functions of the OEM device.
2: Disassemble the OEM device with the power off.
3: Check all interface connections for correctness and continuity with the power off.

Connection and connection sequence:
1: Adjust the interface settings and hardware configuration with the power off.
2: Check the radio connection cable configuration.
3: Connect the radio connection cable according to the retrofit device's operating instructions.
4: Connect all other connections according to the retrofit device's operating instructions.
5: Connect the Complete installation on the vehicle with a live connection last
6: Software configuration of the interface according to the instructions in the article text and in the BDA
7: Configuration of the retrofit device according to the operating instructions for the retrofit device steering wheel remote control/camera/HFCE/antenna phantom power and others
8: Function test of the steering wheel remote control and vehicle

Changes to the hardware configuration of the interface and the radio connection cable:
1: Make changes with the power off
2: Connection after change, see above 5 to 8

In case of a malfunction of the interface or the vehicle:
1: Revert to the OEM device
2: Operate the OEM device
3: Establish CAN bus rest
4: Check the hardware configuration of the interface
5: Connection after CAN bus rest, see above 5 to 8

Connections specified in the information text or the operating instructions, Connection changes, alternative connections, connections of loose cables, or connection extensions of loose cables are intended solely for guidance and information purposes for trained personnel.

Further connections, changes to the cable configuration of the wiring harness, or the use of alternative connections or connection extensions:
1: Connections and modifications may only be carried out by trained personnel.
2: Connections and modifications must be checked for any manufacturer approvals or manufacturer warranty conditions that may be affected by the changes.
3: Connections and modifications must be checked for functionality and accuracy by measuring and comparing them with the vehicle's cable assignment plan.
4: Connections and modifications are made at your own risk and without a guarantee of functionality.
5: Connections and modifications are made at your own risk and without a guarantee of damage to the vehicle, the retrofit device, or the interface.
6: Modifications to the pre-assembled wiring harness may void the product's warranty.
