Alpine SWA-150KIT Stage 3 - 2-channel amplifier for Fiat Ducato 3

Stage 3: The companion ensemble with amplifier system SWA-150KIT for Fiat Ducato 3

Alpine "Adventure Audio" sound systems offer excellent sound quality and meet the special requirements of motorhomes< /strong> and Camper Vans.

These systems feature new innovative < /span>Sound technologies so that the desired sound quality can be achieved in your motorhome or camper van. The Adventure Audio program offers a three-stage sound upgrade for the < /span>Fiat Ducato 3 and identical vehicles.

With a total output of 150 watts, this amplifier improves the dynamicsand the sound volume of  SWC-D84S  Subwoofer systems. The amplifier can easily be installed in the electronic module area in the footwell .

A wired bass remote control is included for quick and easy bass adjustments. This helpful remote control can be installed very conveniently on the dashboard.

Compatible with Fiat Ducato 3, < /span>Citroën Jumper 2 and Peugeot Boxer 2.

Alpine Adventure Audio - the sound experience

For the perfect sound experience with the SWA-150KIT amplifier set, your system grows in combination with the SPC- R100-DU and < /span>SWC-D84Sto the Concert Ensemble.

The right power pack

This amplifier is the perfect powerhouse for the SWA-D84S subwoofer, providing the critical dynamics and performance for the concert ensemble. With the amplifier kit SWA-150KIT you get the suitable amplifier MXE-M150CKD with pre-assembled connection cable harness for your Fiat Ducato and identical vehicles.

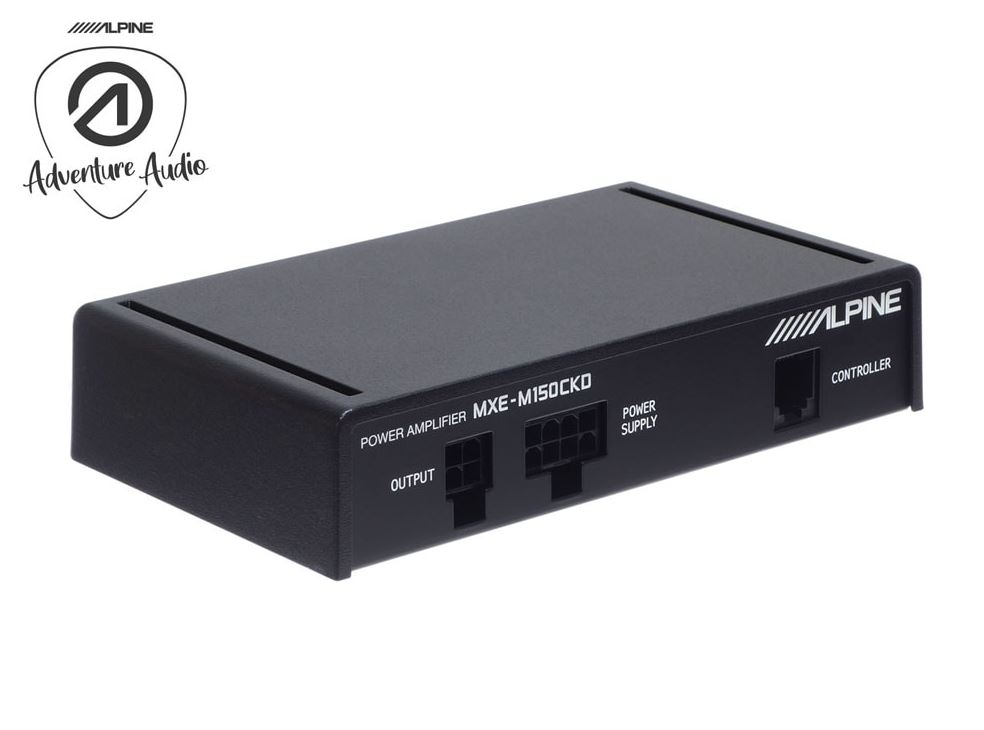

Compact 150 watt amplifier

With a full 150 watts of maximum power from the MXE-M150CKD, the two voice coils of the subwoofer are optimally controlled for excellent dynamics and bass reproduction. The amplifier is nevertheless very compact and can be installed in the electronic module area in the footwell.

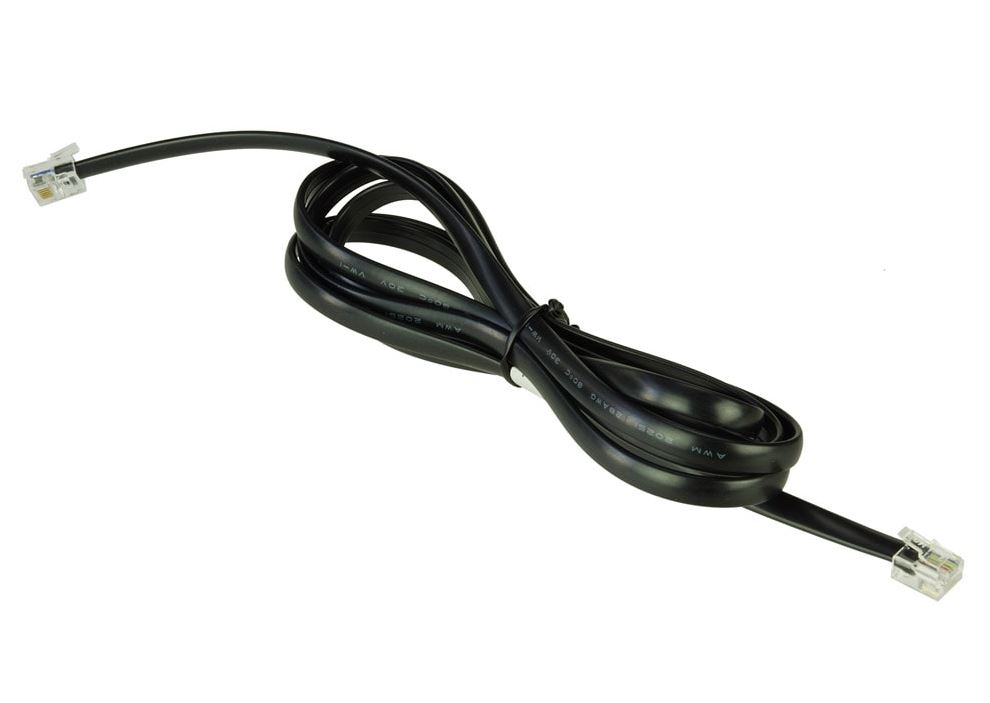

Bass remote control included

A bass remote control gives you very quick and easy access to the power output and corresponding volume of the subwoofer. This is especially helpful for the situation-related adjustment of the volume on the parking space or while driving.

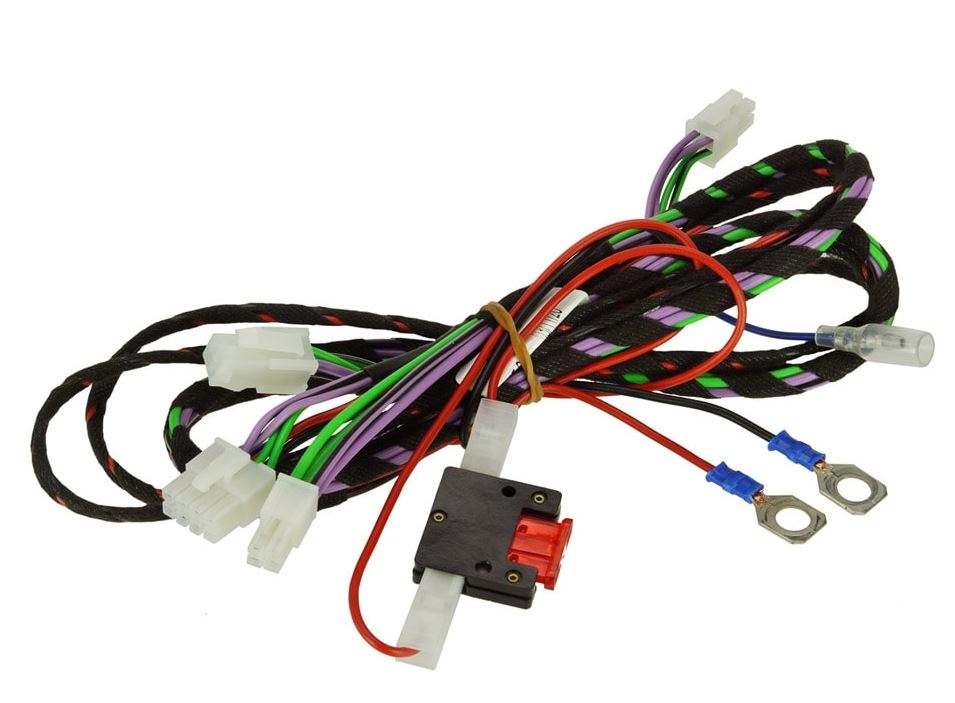

Including connection wiring harness

The supplied connection cable set makes it easier to install the amplifier and is compatible with all original Fiat and aftermarket car radios with ISO connectors.

Equipment

Installation

• Connection terminal: one-sided
• Slim body for easy installation

General

• Amplifier type: Class-AB
• Input type: 2-channel input (internal mono)
• Thermal Management Control
• Crossover: Low Pass Filter (LPF)
• Input Level: Adjustable
• Port for bass remote control

Specifications

Max. Output Power

• 2x 75 W output power at 2 ohms at 14.4 V

Scope

• Designed and developed for subwoofer system SWC-D84S

General

• Power supply: 14.4 V.DC (9 - 16 V)
• High level input
• Frequency range: 20 - 125 Hz (+0/-3 dB)
• Weight: 0.3kg

Compatible Vehicles

• Fiat Ducato III (250) 06/2006 →
• Fiat Ducato III Facelift (250) 2011 - 2014
• Fiat Ducato III (290) 2014 →
• Citroën Jumper II (250) 06/2006 →
• Peugeot Boxer II (250) 06/2006 →

Compatible with original Fiat and aftermarket car radios with ISO connectors.
