Alpine SWC-D84S Stage 2 - 20cm enclosure subwoofer for Fiat Ducato

Stage 2: The companion ensemble with subwoofer system SWC-D84S for Fiat Ducato 3

Alpine "Adventure Audio" sound systems offer excellent sound quality and meet the special requirements of motorhomes< /strong> and Camper Vans.

These systems feature new innovative < /span>Sound technologies so that the desired sound quality can be achieved in your motorhome or camper van.
The Adventure Audio program offers a  three-stage< span> Sound upgrade for the Fiat Ducato 3 and identical vehicles on.

With the subwoofer system  SWC-D84S you can enjoy the bass performance and the tonality continue to improve. In combination with the SPC-D82S you get the Crescendo ensemble – Stage 2 of the Ducato sound system. The subwoofer is perfectly integrated into the center console and ensures a harmonious appearance in the cockpit.

Compatible with Fiat Ducato 3, Citroën Jumper 2 andPeugeot Boxer 2.

Alpine Adventure Audio - the sound experience

The Cersendo Ensemble is the second stage in Alpine's Alpine Adventure Audio program. This system is used in the Fiat Ducato for the radial broadband loudspeakers SPC-R100-DU with the separate subwoofer SWC-D84S sounds again strongly supported. All of the components in the Cresendo Ensemble are optimally matched to each other in terms of sound and appearance. The result is a warm and dynamic sound in the Fiat Ducato cockpit.

Use the best sound advantages

The subwoofer SWC-D84S in the Cresendo ensemble is the right extension to optimally compensate for sound losses in the cockpit of a Fiat Ducato. Due to the lack of insulation, the doors do not offer sufficient soundproofing and cause strong vibration noises, which are quickly perceived as annoying for neighboring mobile homes on a campsite. This subwoofer nestles under the cup holder* in the center console, so you can enjoy deeper, cleaner bass and all the in-vehicle sonic benefits.

20cm subwoofer in a stable housing

The flat subwoofer with a diameter of 20 cm has two voice coils (2 ohms + 2 ohms), a peak power handling of 250 watts and can be connected to the 2 rear channels of your original or aftermarket radio can be connected. If you have connected the rear speakers to your radio, you can continue to use them in parallel with the subwoofer. The housing for the subwoofer is made from ecologically sustainable European beech wood. We recommend using the SWA-150KIT amplifier for optimal bass and dynamic reproduction.

Secure and stable installation

Thanks to a very stable bracket under the cup holder* that is screwed to the vehicle, the subwoofer can fully develop its strengths and does not cause any annoying vibrations. The subwoofer housing is then pushed into the bracket from the front and screwed. So it fits very unobtrusively into the center console. A wiring harness is included for easy plug-and-play connection to the radio.

Please note that the cup holder (not included) is required for this installation and may need to be installed

Compatible Vehicles

The SWC-D84S has been designed to work with the motorhomes, camper vans and vans based on Fiat Ducato 3, Citroën Jumper 2 and Peugeot Boxer 2 compatible. The original cup holder* in the center console is mandatory for using the SWC-D84S.

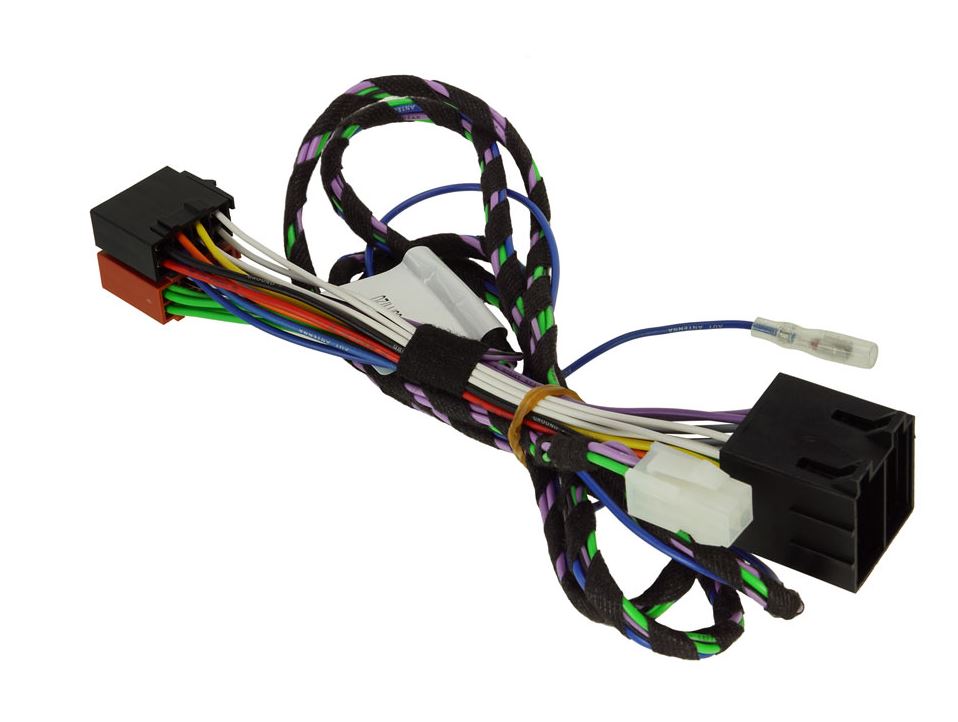

Plug & Play connection cable

The SWC-D84S includes an ISO connector cable for connection to the original or aftermarket radio. It connects the two rear output channels to the subwoofer. A low-pass filter in the wiring harness ensures that only the required low frequencies reach the subwoofer. This low-pass filter is not necessary when upgrading to the Concert Ensemble with the SWA-150KIT .< span style="color: #666666;">

Equipment

Speakers

• 20 cm subwoofer in closed housing
• Dual voice coil (2 ohms + 2 ohms)
• High efficiency subwoofer
• Housing made from European beech wood

Mounting material

• Metal mount included for stable mounting
• ISO connection cable for connecting to original or retrofit radios
• Includes wiring harness with low-pass filter

Specifications

Resilience

• Max. Power: 250 watts
• RMS power: 75 watts

Application

• This subwoofer enclosure is designed to fit the center console under the cup holder

General

• Frequency range: 30 Hz - 200 kHz
• Impedance: 2x2 ohms

Compatible Vehicles

• Fiat Ducato III (250) 06/2006 →
• Fiat Ducato III Facelift (250) 2011 - 2014
• Fiat Ducato III (290) 2014 →
• Citroën Jumper II (250) 06/2006 →
• Peugeot Boxer II (250) 06/2006 →

Compatible with original Fiat and aftermarket car radios with ISO connectors.

For fully integrated vehicles, please check compatibility before purchasing!

*Note that the cup holder (not included) is required for this installation and may need to be installed.

The cup holder can be purchased separately from the vehicle manufacturer.
