ATBB 3759.01 - Shark Antenne passiv - FM/DAB+ mit optionalem Splitter

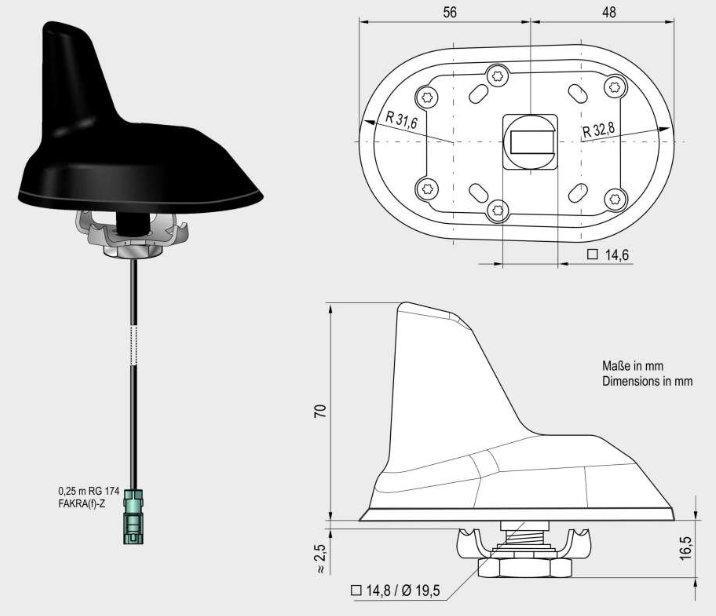

Roof antenna with the following characteristics:

• low installation depth (about 17 mm)
• paintable
• Assembly possible with new hole patterns from Mercedes, VW, Audi. Seal adapter optionally available. Mercedes ATBB_4624_01 or for VW / Audi ATBB 4625.01.
• can only be used with splitter with built-in amplifier ATBB 4726.01 or ATBB 4726.02 or ATBB 4726.03 or combination of amplifier ABB 4723.01 and passive splitter ATBB 4724.01.
• Connection to antenna: 25 cm cable with Fakra socket

Note:
In many vehicles with an active 16V antenna, only a filtered FM signal is transmitted, i. the DAB + signal is outside the transmitted frequency range.

Solution:
Remove the active roof antenna and replace it with a passive roof antenna, such as the one mentioned here, and then split the signals into DAB and FM on the radio with the ATBB 4726.01 splitter.

Optinal available:
Seal adapter for VW or Mercedes boreholes:
For Mercedes: ATBB 4624.01
For AUDI / VW / SKODA: ATBB 4625.01
These antennas have the corresponding large nut that protrudes over the seal.
