ATBB 4726.03 - DAB/ FM Aktivsplitter - Frequenzweiche ISO/SMB

Generates an additional DAB / DAB + signal from a passive FM / FM antenna
Amplification FM / FM and DAB + 20dB each

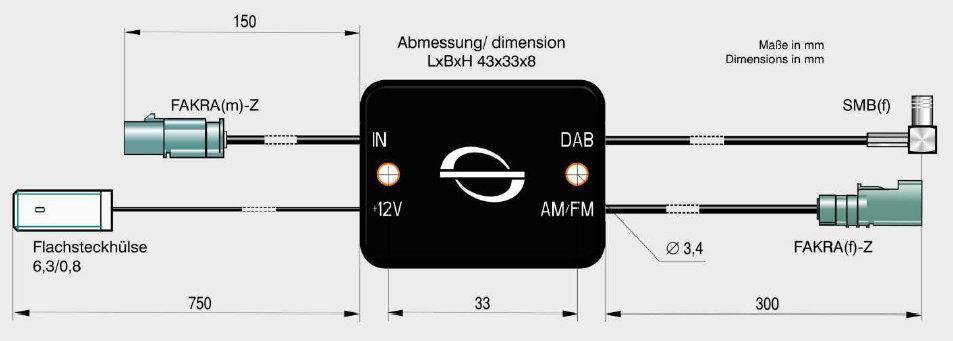

Connections to the radio:

• Fakra socket
• SMB socket
• Connection to the antenna: Fakra plug

Also works with active FM / FM antennas if the antenna itself does not filter the frequency band. In a phantom antenna, a phantom adapter must be inserted between the splitter and the antenna connector, e.g. 8551, as a possible phantom power of the radio is not passed.

For best results, combine the splitter with a passive FM / FM / DAB antenna:

• 16 V antenna: ATBB 2116.01
• Flex antenna with adjustable rod of 10-115 degrees: ATBB 3940.01
• Shark / Shark antenna: ATBB 3759.01

These antennas always have a piece of cable 40cm with a Fakra socket. You can then use any existing Fakrakabel or bring the signal into the dashboard with the extension cable Dietz: 8475 (Fakra plug - Fakra jack, length 5 meters). There you connect the splitter. If the radio has a DIN antenna connection for VHF, then you still need the adapter, Dietz 8509 (Fakra plug - DIN plug) or if the radio has an ISO connection, Dietz 8508 (Faka plug - ISO plug)
