JL AUDIO CP106LG-W3v3 - 16,5cm Gehäusesubwoofer

CP106LG-W3v3
Enclosed Subwoofer System with Single 6W3v3-4 Subwoofer Drivers, Black Carpet (150 W, 4 ohms) - Ported Enclosure

• This incredible MicroSub subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 6W3v3 subwoofer driver into an efficient slot-ported design.
• Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
• This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.
• Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.
• Construction: CNC-Cut High-Grade MDF
• Recommended amplifier power: 50 - 150W
• Nominal Impedance: 4 ohms

General Specifications

• Continuous Power Handling (RMS): 150 W
• System Nominal Impedance: 4 ohms
• Enclosure Type: Slot-ported, Low-profile
• Finish: Black carpet
• Grille: Included Black Steel Mesh

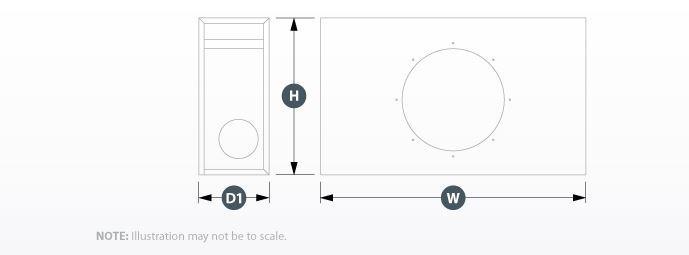

Physical Specifications (Pict.3)

• External Width (W): 14.125 in / 359 mm
• External Height (H): 9.625 in / 245 mm
• External Depth (D1): 5.125 in / 130 mm
• Net Weight: 12 lb / 5.44 kg
