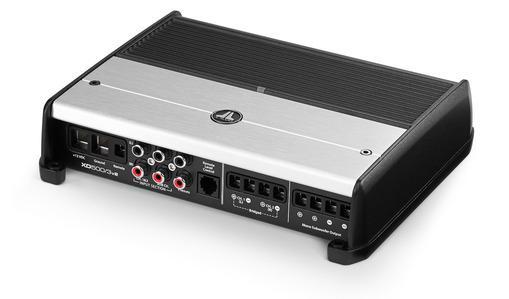

JL AUDIO XD500/3v2 - 3-Kanal Verstärker digital

XD500/3v2
3-Channel Class D System Amplifier, 75 W x 2 at 4 ohms + 300 W x 1 at 2 ohms - 14.4V

• This compact amplifier is ideal for a simple audiophile-grade, subwoofer / satellite system. With the XD500/3v2, you can drive a pair of quality component speaker systems with plenty of clean power, while also delivering a stout 300 W to your subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.
• The XD500/3v2 includes a 12 dB / octave high-pass filter for its main channels, plus a variable slope low-pass filter for its subwoofer channel. Both filters offer continuously variable cutoff frequency selection from 50-500 Hz.
• The XD500/3v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

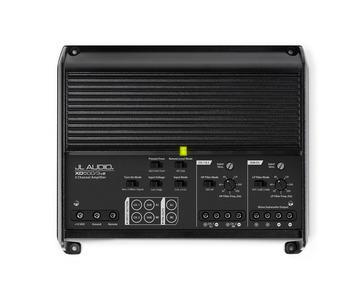

• This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Rated Continuous (RMS) Power at 14.4 V

• Main Channels at 4 ohms: 75 W RMS x 2
• Main Channels at 2 ohms: 100 W RMS x 2
• Main Channels - Bridged at 4 ohms: 200 W RMS x 1
• Subwoofer Channel at 4 ohms: 180 W RMS x 1
• Subwoofer Channel at 3 ohms: 240 W RMS x 1
• Subwoofer Channel at 2 ohms: 300 W RMS x 1
• Subwoofer Channel at 1.5 ohms: N/A

Rated Continuous (RMS) Power at 12.5 V

• Main Channels at 4 ohms: 60 W RMS x 2
• Main Channels at 2 ohms: 90 W RMS x 2
• Main Channels - Bridged at 4 ohms: 180 W RMS x 1
• Subwoofer Channel at 4 ohms: 180 W RMS x 1
• Subwoofer Channel at 3 ohms: 240 W RMS x 1
• Subwoofer Channel at 2 ohms: 300 W RMS x 1
• Subwoofer Channel at 1.5 ohms: N/A

General Specifications

• Frequency Response (Main Channels): 12 Hz - 22 kHz (+0, -1dB)
• Frequency Response (Subwoofer Channel): 10 Hz - 1 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power (Main Channels): >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor at 4 ohms: >120 / 50 Hz
• Damping Factor at 2 ohms: >60 / 50 Hz
• THD+N at Rated Power (Main Channels): <1% at 2 ohms per Ch.
• THD+N at Rated Power (Subwoofer Channels): <1% at 2 ohms per Ch.
• Input Voltage Range at RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Min.Copper Power / Ground Wire Gauge: 4 AWG wire
• Fuse Rating: 50 A (AFS, AGU or MaxiFuse)

Signal Processing

• Filter Mode(s): Channels 1 & 2 (front) High-Pass only
• Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave
• Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 500 Hz
• Filter Mode(s): Channels 3 & 4 (rear) N/A
• Filter Slope(s): Channels 3 & 4 (rear) N/A
• Filter Frequency Range: Channels 3 & 4 N/A
• Filter Mode(s): Subwoofer Channel Low-Pass only
• Filter Slope(s): Subwoofer Channel 12/24 dB/octave
• Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz
• Detented, Calibrated Filter Freq. Potentiometers: Yes
• Filter Defeat Function: Yes
• Infrasonic Filter: Subwoofer Channel none
• Remote Level Control: Optional (HD-RLC)
• Remote Level Modes: Sub Ch. or All Channels
• Channel Input Mode Switch. Yes (2/4 ch.)
• Pass-Through Preamp Output: Buffered
• Source Channel Selection for PreOuts: Yes (1&2/Sum/Sub)

Physical Specifications

• Height (H): 2.05 in / 52 mm
• Width (W): 8.52 in / 216 mm
• Depth (D): 7.09 in / 180 mm
• Net Weight: 4.8 lb / 2.18 kg
