ESX Q300A - 6x9" spare wheel active subwoofer

Q300A

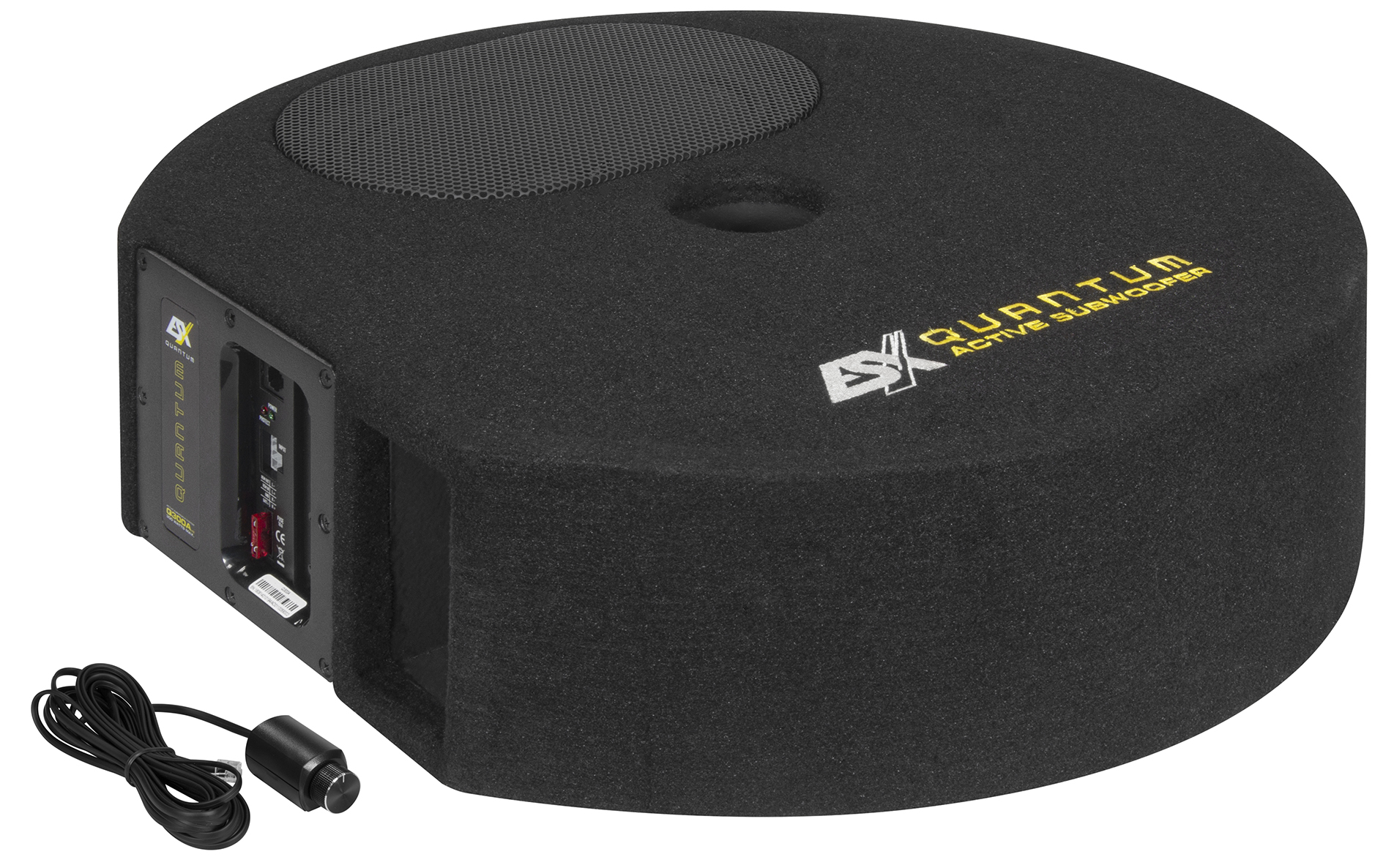

 QUANTUM Q300A  active subwoofer system is designed for use in spare wheel wells. The built-in 6 x 9 special subwoofer, together with the efficient digital amplifier module, ensures rich bass in the trunk. The systems have everything on board to provide an extra dose of bass in the existing audio system, and with the built-in high-level inputs and automatic switch-on function, they are very easy to integrate into any factory system. The bass level can be adjusted from the driver's seat using the remote control.

Technical data

• 15 x 23 cm (6 x 9") active subwoofer system
• Fits in the spare wheel well
• Integrated Class D amplifier
• 1 x 150/300 watts RMS/max.
• LPF 50-150 Hz
• Bass boost 0-12 dB @ 45 Hz
• Phase shift 0/180°
• Subsonic 25 Hz fixed
• High-level inputs
• RCA inputs
• Auto power-on function
• Remote bass level control
• Removable connection base
• Dimensions Ø 500 x 150 mm
